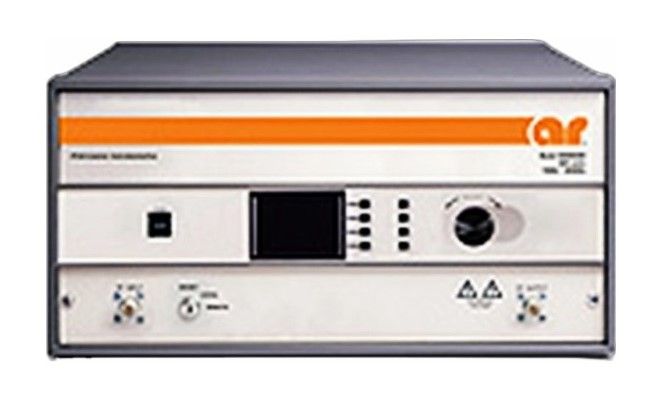

Amplifier Research 800A3A

ProduttoreAmplifier Research
Modello800A3A
ProdottoRF Amplifier, 10 kHz - 3 MHz, 800W
TipoUsato



Amplifier Research 500U1000

Amplifier Research 500U1000

Amplifier Research 100S1G2Z5A

Amplifier Research 100S1G2Z5A

Ottieni un preventivo
SKU
tw800A3A

AMPLIFIER RESEARCH  800A3A RF Amplifier



The Amplifier Research 800A3A is a self-contained, air-cooled, broadband, solid-state amplifier designed for applications where instantaneous bandwidth and high gain are required. The Model 800A3A, when used with an RF sweep generator, will provide a minimum of 800 watts of swept power.  A digital control panel provides both local and remote control of the amplifier. The display provides operational presentation of forward power and reflected power, plus control status and reports of internal amplifier status. Special features include a gain control, RF output level protection, and a transformer with selectable taps for matching to diffe load impedances.

All amplifier control functions and status indications are available remotely in IEEE-488, RS-232 and USB. The buss interface connectors are located on the back panel and positive control of local or remote operation is assured by a keylock on the front panel of the amplifier.  The 800A3A amplifier is intended for applications where the load impedance is not necessarily 50 ohms. The selectable output impedance provides the capability to drive loads that would otherwise cause a high SWR and limit the delivered power. The impedance matching transformer uses high-voltage/high-cur vacuum relays so the user can €œhot switch " between impedances without damage.



Specifications for the Amplifier Research  800A3A RF Amplifier Include:

Frequency 10kHz - 3MHz
Rated Output Power 800W
Gain 60  dB min
Gain Adjustment 23 dB min
