Anritsu MG3694C
Signal Generator 2-40 GHz
2 MHz – 40 GHz Intervallo di Frequenza
+20 dBm (tipico) Potenza di Uscita Massima
0,001 Hz Risoluzione di Frequenza
-116 dBc/Hz a 10 kHz di offset (a 10 GHz) Purezza Spettrale (Rumore di Fase)
AM, FM, ΦM, Impulso, I/Q Modulazione Supportata
| Attributo | Valore |
|---|---|
| Intervallo di Frequenza | 2 MHz – 40 GHz |
| Potenza di Uscita Massima | +20 dBm (tipico) |
| Risoluzione di Frequenza | 0,001 Hz |
| Purezza Spettrale (Rumore di Fase) | -116 dBc/Hz a 10 kHz di offset (a 10 GHz) |
| Modulazione Supportata | AM, FM, ΦM, Impulso, I/Q |
| Connettore di Uscita RF | 2,92 mm (K-type), 50 Ω |
| Interfacce di Controllo | GPIB, USB, Ethernet (LAN) |
| Alimentazione | 100–240 V CA, 50/60 Hz |
| Dimensioni (L x A x P) | 426 mm x 177 mm x 502 mm |
| Peso | Circa 18 kg |
Anritsu MG3694C Options:
- MG3694C - 1A - Rack Mount with slides. Rack mount kit containing a set of track slides, mounting ears, and front panel handles to let the instrument be mounted in a standard 19-inch equipment rack.
- MG3694C - 1B - Rack Mount without slides. Modifies rack mounting hardware to install unit in a console that has mounting shelves. Includes mounting ears and front panel handles.
- MG3694C - 2A - Mechanical Step Attenuator. Adds a 10 dB/step attenuator. Rated RF output power is reduced.
- MG3694C - 2B - Mechanical Step Attenuator. Adds a 10 dB/step attenuator. Rated RF output power is reduced.
- MG3694C - 2C - Mechanical Step Attenuator. Adds a 10 dB/step attenuator. Rated RF output power is reduced.
- MG3694C - 3 - Ultra Low Phase Noise. Adds new modules to significantly reduce SSB phase noise.
- MG3694C - 3X - Premium Phase Noise. Improves Option 3 < 1 kHz offset.
- MG3694C - 4 - 8 MHz to 2.2 GHz RF coverage, Ultra-Low Phase Noise version. Uses a digital down converter to significantly reduce SSB phase noise. All specifications apply ≥ 10 MHz.
- MG3694C - 5 - 8 MHz to 2 GHz RF Coverage. Uses an analog down converter. All specifications apply ≥ 10 MHz.
- MG3694C - 6 - Analog Sweep Capability. When used with Option 4, analog sweep capability is limited to ≥ 500 MHz.
- MG3694C - 7 - IF Up-Conversion. Adds an internal 40 GHz mixer for up-converting an IF signal.
- MG3694C - 8 - Power Monitor. Adds internal power measurement capability. Not available with Option 9.
- MG3694C - 9K - Rear Panel Output. Moves the RF output connector to the rear panel. Not available with Option 8.
- MG3694C - 9V - Rear Panel Output. Moves the RF output connector to the rear panel. Not available with Option 8.
- MG3694C - 10 - User-Defined Modulation Waveform Software. External software package provides the ability to download user-defined waveforms into the memory of the internal waveform generator, serially or via GPIB or Ethernet. Requires Option 27.
- MG3694C - 12 - Frequency and Phase Modulation. External, via a rear panel BNC connector. For internal modulation capability, requires addition of an LF Generator, Option 27.
- MG3694C - 14 - Amplitude Modulation. External, via a rear panel BNC connector. For internal modulation capability, requires addition of an LF Generator, Option 27.
- MG3694C - 15A - High Power. Adds high-power RF components to the instrument to increase its output power level.
- MG3694C - 15B - High Power. Adds high-power RF components to the instrument to increase its output power level.
- MG3694C - 15C - High Power. Adds high-power RF components to the instrument to increase its output power level.
- MG3694C - 15D - High Power. Adds high-power RF components to the instrument to increase its output power level.
- MG3694C - 16 - High Stability Time Base. Adds an ovenized, 10 MHz crystal oscillator as a high-stability time base.
- MG3694C - 17 - Delete Front Panel. Deletes the front panel for use in remote control applications. Only available with Options 1A or 1B.
- MG3694C - 18 - DC Output. Adds a rear panel BNC Twinax connector supplying +15 VDC, 1A (nominal). Not available with Option 7 or 15x.
- MG3694C - 22 - 0.1 Hz to 10 MHz Audio coverage. Uses a DDS for coverage down to approximately DC. Output power derated by 2 dB. Requires Option 4 or 5.
- MG3694C - 26A - Pulse Modulation. External, via a rear panel BNC connector. For internal modulation capability, requires addition of a Pulse Generator, Option 27.
- MG3694C - 26B - Pulse Modulation. External, via a rear panel BNC connector. For internal modulation capability, requires addition of a Pulse Generator, Option 27.
- MG3694C - 27 - Internal LF and Pulse Generators. Provides modulation waveforms for internal AM, FM, ΦM and Pulse. Not available without Option 12, 14, or 26.
- MG3694C - 28A - Analog Modulation Suite. Bundles Options 12, 14, 26 and 27, offering internally- and externally-driven AM, FM, ΦM, and Pulse Modulation.
- MG3694C - 28B - Analog Modulation Suite. Bundles Options 12, 14, 26 and 27, offering internally- and externally-driven AM, FM, ΦM, and Pulse Modulation.
- MG3694C - 36 - Ultra-Stable Phase Tracking. Provides the capability for ultra-stable phase tracking between instruments using the internal 100 MHz reference. Requires Option 3, 3X, or 3XA.
- MG3694C - 98 - Standard Calibration to ISO17025 and ANSI/NCSL Z540-1. Provides a calibration certificate, decal, and tamper seals.
- MG3694C - 99 - Premium Calibration to ISO17025 and ANSI/NCSL Z540-1. Provides everything included with Option 98 plus test report and uncertainty data.
| Model | MG3694C |
|---|

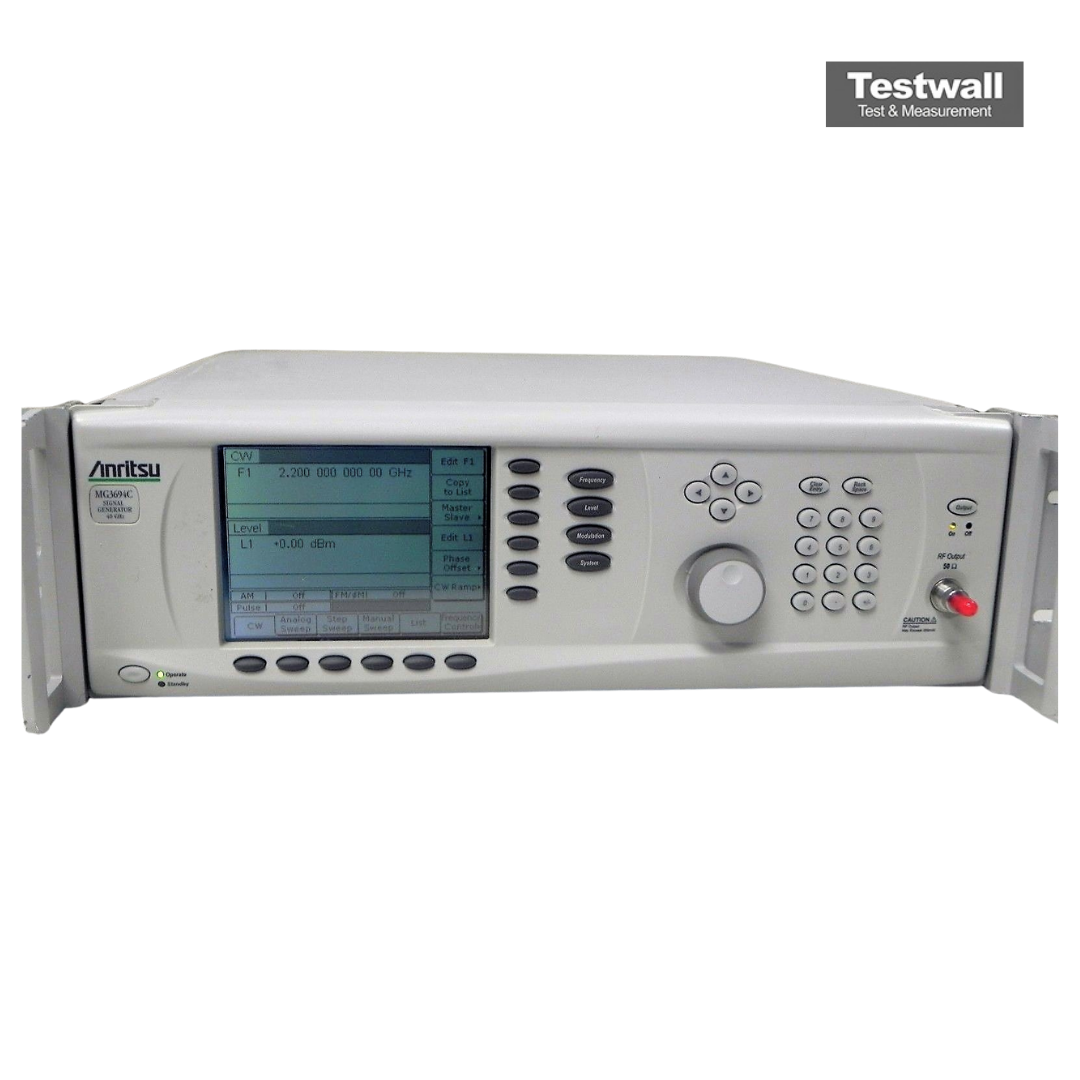

L’Anritsu MG3694C è un generatore di segnali a banda larga che copre frequenze da 0,1 Hz a 40 GHz con un’uscita coassiale singola, estendibile fino a 325 GHz con moltiplicatori esterni. Offre flessibilità eccezionale per test RF e microonde, con tre opzioni di prestazione del rumore di fase (Standard, Ultra Basso, Premium) e ampie capacità di modulazione, inclusa la modulazione IQ con supporto di ingresso IF.
Progettato per sostituire il MG3690B, questo generatore offre prestazioni avanzate per simulazioni di segnali, dalle applicazioni RF di base alle applicazioni microonde complesse, mantenendo la compatibilità con i precedenti modelli Anritsu.
Testwall può fornire l’Anritsu MG3694C usato, completamente testato. Con supporto esperto e consegna globale, Testwall garantisce strumentazione ad alte prestazioni con affidabilità e qualità di servizio impareggiabili. Contattaci direttamente se hai bisogno di calibrazione o riparazione dell’Anritsu MG3694C.
