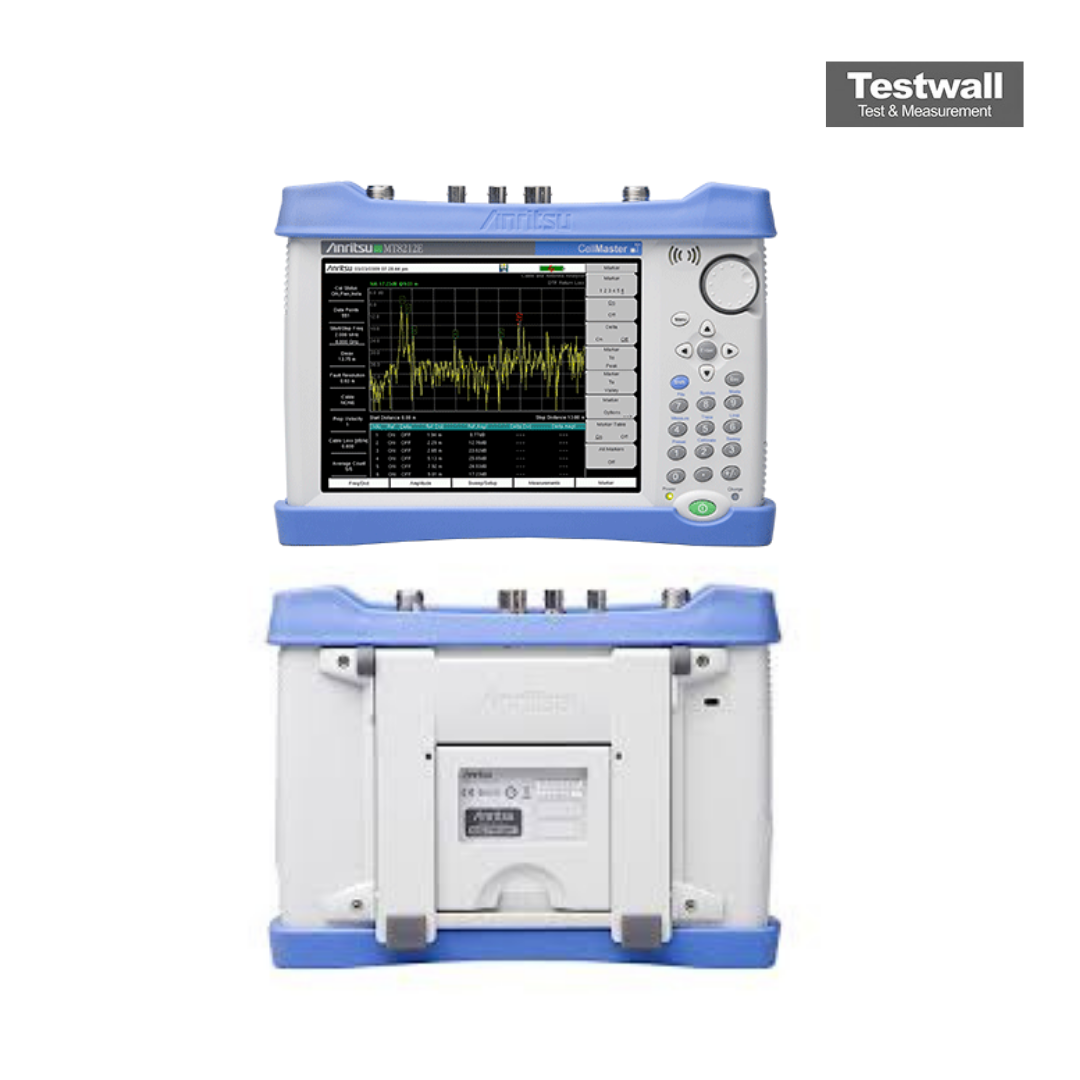

Anritsu MT8212E

AnritsuMT8212EThe AnritsuMT8212E Base Station Analyser was designed for installation and maintenance of wireless networks. Designed as a lightweight base station Analyser meeting virtually all the testing needs of an RF technician, the Cell Master features Signal Analyser options for 2G, 3G, and 4G cellular networks including LTE, WiMAX, and digital broadcast.Features of the AnritsuMT8212E Cell Master include:

30 Analysers in one

Cable and Antenna Analyser: 2 MHz – 4 GHz

Return Loss, Cable Loss, VSWR, Distance-To-Fault

Phase, 2-port Transmission Measurements

Spectrum Analyser: 9 kHz – 4 GHz

Interference Analyser with Interference Mapping, GPS

High Accuracy Power Meter

3GPP, including LTE/LTE-A, 3GPP2 and WiMAX signal Analysers

ISDB-T and DVB-T/H signal Analysers

CPRI RF Measurements

Indoor and outdoor coverage mapping

Easy-to-use Touch screen

USB connectivity

Most compact handheld

PIM Alert (a downloadable easyTest™ script)

Cable and Antenna Analyser Highlights of the MT8212E include:

Measurements: RL, VSWR, Cable Loss, DTF, Phase

2-port Transmission Measurement: High/Low Power

Sweep Speed: 1 ms/data point, typical

Display: Single or Dual Measurement Touchscreen

Calibration: OSL, InstaCal™, and FlexCal™

Bias Tee: 32 V internal

Spectrum Analyser and Interence Analyser Highlights of the MT8212E include:

Measurements: Occupied Bandwidth, Channel Power, ACPR, C/I

Interference Analyser: Spectrogram, Signal Strength, RSSI, Interference Mapping

Dynamic Range: > 102 dB in 1 Hz RBW

DANL: –162 dBm in 1 Hz RBW

Phase Noise: –100 dBc/Hz max @ 10 kHz offset at 1 GHz

Frequency Accuracy: ± 50 ppb with GPS On

Capabilities and Functional Highlights of the AnritsuMT8212E include:

CPRI RF Measurements •

LTE/LTE-A FDD/TDD

GSM/EDGE

W-CDMA/HSPA+

TD-SCDMA/HSPA+

CDMA, EV-DO

Fixed, Mobile WiMAX

EMF Test

USB Power Sensors up to 50 GHz

Coverage Mapping

3 hour battery operation time

USB or optional Ethernet data transfer

PIM Alert Application

ISDB-T, ISDB-T SFN

DVB-T/H, DVB-T/H SFN

Interference Analyser

GPS information on stored traces

Built-in Bias Tee

Internal Power Meter

High Accuracy Power Meter

Master Software Tools™

Line Sweep Tools™

easyTest Tools™

Web Remote Control with Ethernet option
