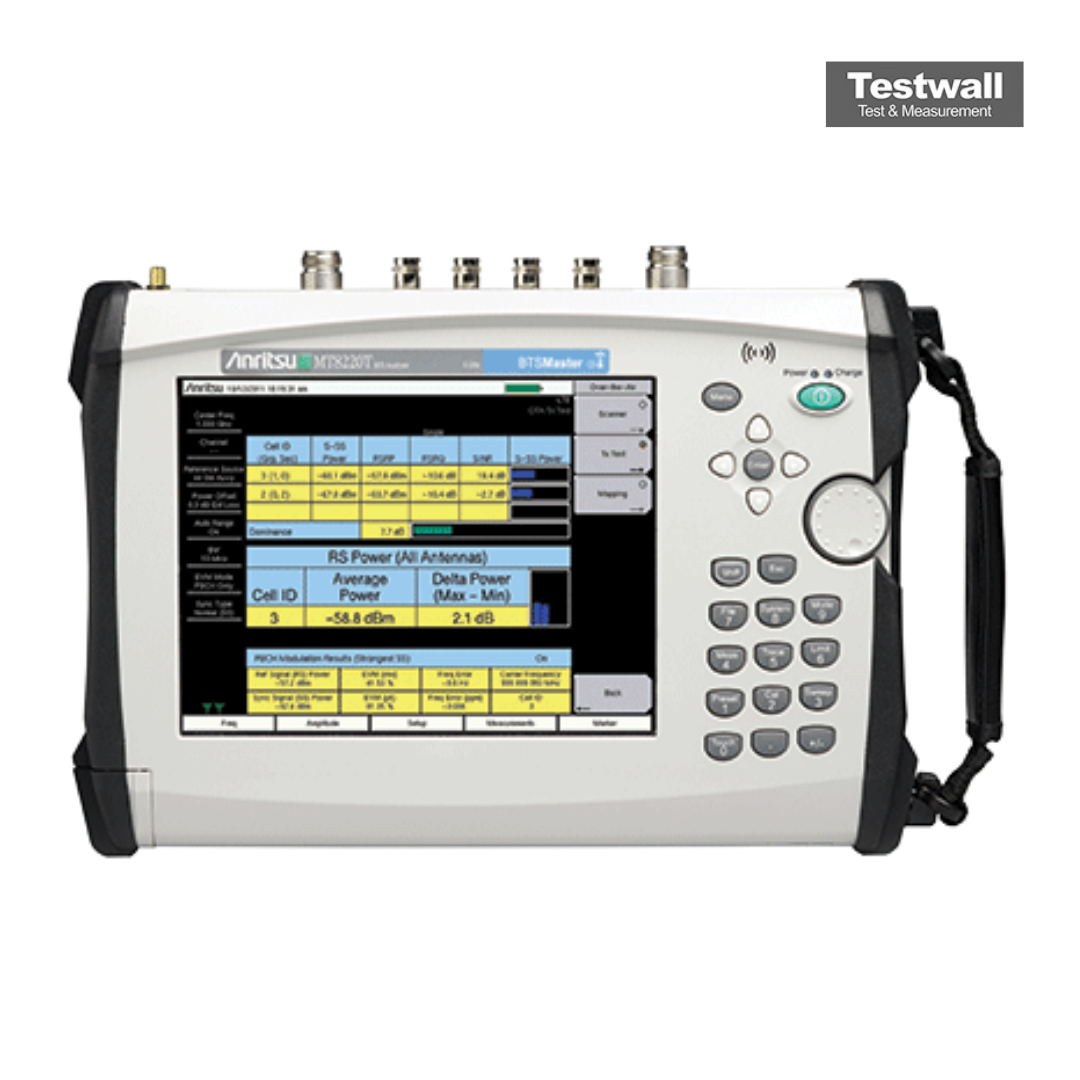

AnritsuMT8220TThe AnritsuMT8220T BTS Master is the 3rd generation high performance handheld Base Station Tester for installation and maintenance of wireless networks. The MT8220T BTS Master is curly the only all-in-one, touchscreen handheld tool that combines cable and antenna testing, signal analysis for all cellular standards, ultra-sensitive spectrum analysis, sophisticated interference tracking, and a vector signal generator for receiver testing in a compact, easy-to-use instrument.Features of the AnritsuMT8220T include:

• 2-port Cable and Antenna Analyser 400 MHz to 6 GHz
• Spectrum Analyser 150 kHz to 7.1 GHz
• Power Meter 10 MHz to 7.1 GHz
• GPS Receiver with Antenna
• Bias Tee
• High Accuracy Power Meter (up to 26 GHz with external sensor)
• Interference Analyser with Mapping
• Channel Scanner
• Vector Signal Generator 400 MHz to 6 GHz
• Signal Analysers
• LTE/LTE-A FDD/TDD, W-CDMA/HSPA+, GSM/GPRS/EDGE,
  TD-SCDMA/HSPA+
• CDMA, EV-DO
• Fixed and Mobile WiMAX
• CPRI RF Analyser
• BBU Emulation
• eMBMS

2-port Cable and Antenna Analyser 400 MHz to 6 GHz

Spectrum Analyser 150 kHz to 7.1 GHz

Power Meter 10 MHz to 7.1 GHz

GPS Receiver with Antenna

Bias Tee

High Accuracy Power Meter (up to 26 GHz with external sensor)

Interference Analyser with Mapping

Channel Scanner

Vector Signal Generator 400 MHz to 6 GHz

Signal Analysers

• LTE/LTE-A FDD/TDD, W-CDMA/HSPA+, GSM/GPRS/EDGE,
  TD-SCDMA/HSPA+
• CDMA, EV-DO
• Fixed and Mobile WiMAX

CPRI RF Analyser

BBU Emulation

eMBMS

LTE/LTE-A FDD/TDD, W-CDMA/HSPA+, GSM/GPRS/EDGE,
TD-SCDMA/HSPA+

CDMA, EV-DO

Fixed and Mobile WiMAX

Cable and Antenna Analyser Highlights of the AnritsuMT8220T include:

Measurements: RL, VSWR, Cable Loss, DTF, Phase, Gain

2-port Gain Measurement Uncertainty: < 0.45 dB

2-port Dynamic Range: > 100 dB • RF Immunity: +17 dBm on-channel, +10 dBm on-frequency

Calibration: OSL and FlexCal™ • Bias Tee: 32 V internal

Spectrum Analyser and Interence Analyser Highlights of the MT8220T include:

Measurements: Occupied Bandwidth, Channel Power, ACPR, C/I, Field Strength, Spectral Emissions

Interference Analyser: Spectrogram, Signal Strength, RSSI, Signal ID

Dynamic Range: > 95 dB in 1 Hz RBW • DANL: –163 dBm in 1 Hz RBW

Phase Noise: –100 dBc/Hz @ 10 kHz offset

Frequency Accuracy: ± 2.5 × 10–8 with GPS On

Burst Detect™ Sweep Mode: sweep 1000x in 15 MHz span

Coverage Mapping: plot RSSI to on-screen map

Interference Mapping: on-screen mapping with triangulation

Capabilities and Functional Highlights of the MT8220T:

CPRI RF Measurements

BBU Emulation ALu-Nokia LTE

LTE/LTE-A FDD/TDD

GSM/GPRS/EDGE

W-CDMA/HSPA+

TD-SCDMA/HSPA+

CDMA/EV-DO

WiMAX Fixed/Mobile

Vector Signal Generator

Zero-span IF Output

Gated Sweep

Standard GPS receiver, GPS information on stored traces

PIM Alert Application

Standard Internal Preamp

Internal Power Meter

High Accuracy Power Meter

USB Power Sensors up to 26 GHz

Channel Scanner

2.5 hour battery operation time

< 5 minute warm-up time

Ethernet/USB data transfer

Remote Access Tool

Line Sweep Tools
