Anritsu

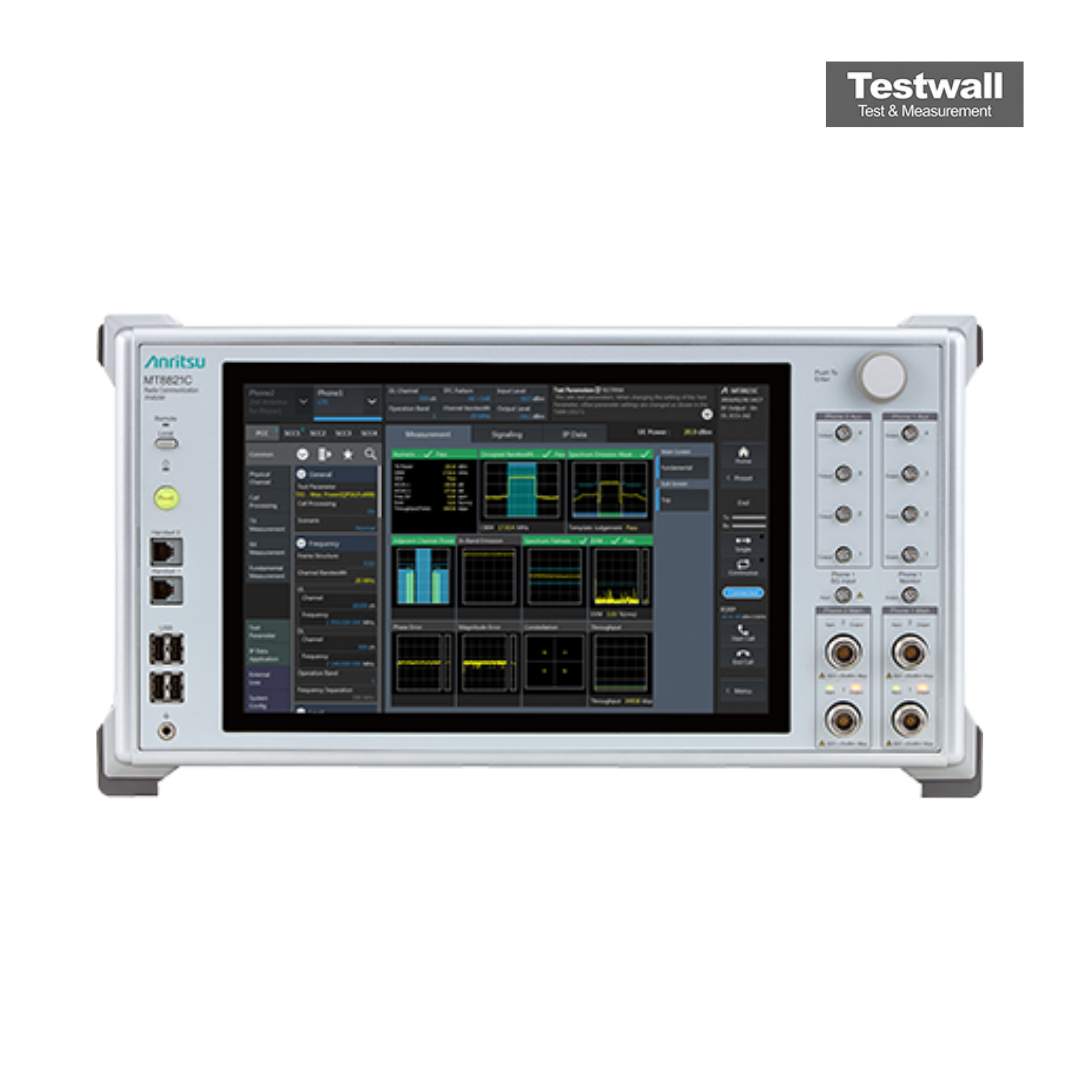

Anritsu MT8821C
Radio Communication Analyser
300 kHz – 6 GHz Intervallo di Frequenza
LTE, LTE-Advanced, W-CDMA/HSPA+, GSM/GPRS/EDGE, CDMA2000, TD-SCDMA Standard di Comunicazione Supportati
+10 dBm Potenza di Uscita RF Massima
-130 dBm Livello Minimo di Potenza di Uscita RF
1,4 MHz / 3 MHz / 5 MHz / 10 MHz / 15 MHz / 20 MHz Larghezza di Banda del Canale LTE
| Attributo | Valore |
|---|---|
| Intervallo di Frequenza | 300 kHz – 6 GHz |
| Standard di Comunicazione Supportati | LTE, LTE-Advanced, W-CDMA/HSPA+, GSM/GPRS/EDGE, CDMA2000, TD-SCDMA |
| Potenza di Uscita RF Massima | +10 dBm |
| Livello Minimo di Potenza di Uscita RF | -130 dBm |
| Larghezza di Banda del Canale LTE | 1,4 MHz / 3 MHz / 5 MHz / 10 MHz / 15 MHz / 20 MHz |
| Interfaccia di Connessione | USB, LAN (Ethernet), GPIB |
| Dimensioni (L x A x P) | 426 mm × 177 mm × 451 mm |
| Peso | Circa 18 kg |
| Alimentazione | 100 – 240 V CA, 50/60 Hz |
| Temperatura di Esercizio | +5°C – +40°C |
Anritsu MT8821C Options:
- MT8821C - 001 - W-CDMA Measurement Hardware
- MT8821C - 002 - TDMA Measurement Hardware
- MT8821C - 003 - CDMA2000 Measurement Hardware
- MT8821C - 005 - 1xEV-DO Measurement Hardware (Requires MT8821C-003)
- MT8821C - 007 - TD-SCDMA Measurement Hardware (Requires MT8821C-001)
- MT8821C - 008 - LTE Measurement Hardware
- MT8821C - 011 - Audio Board
- MT8821C - 012 - Parallel Phone Measurement Hardware
- MT8821C - 019 - Extended RF 3.8 GHz to 6 GHz
- MT8821C - 025 - 2nd RF for Phone1
- MT8821C - 026 - 3rd RF for Phone1 (Requires MT8821C-025)
- MT8821C - 027 - 4th RF for Phone1 (Requires MT8821C-026)
- MT8821C - 028 - 2nd RF for Phone2 (Requires MT8821C-012)
- MT8821C - 029 - 3rd RF for Phone2 (Requires MT8821C-028)
- MT8821C - 030 - 4th RF for Phone2 (Requires MT8821C-029)
- MT8821C - 043 - CDMA2000 Time Offset CAL for GPS SG (Requires MT8821C-003 and MX882102C)
- MX882100C - W-CDMA Measurement Software (Requires MT8821C-001)
- MX882100C - 001 - W-CDMA Voice Codec (Requires MT8821C-011 and MX882100C)
- MX882100C - 002 - W-CDMA External Packet Data (Requires MX882100C)
- MX882100C - 003 - W-CDMA Video Phone Test (Requires MX882100C)
- MX882100C - 005 - W-CDMA A-GPS (Requires MX882100C)
- MX882100C - 019 - W-CDMA HSPA Measurement Software (Requires MX882100C)
- MX882100C - 032 - DC-HSDPA Measurement Software (Requires MT8821C-001 (2 sets), MT8821C-012, MX882100C and MX882100C-019)
- MX882100C - 033 - DC-HSUPA Measurement Software (Requires MX882100C-032)
- MX882100C - 034 - 4C-HSDPA Measurement Software (Requires MX882100C-032)
- MX882170C - W-CDMA Ciphering Software (Requires MX882100C)
- MX882101C - GSM Measurement Software (Requires MT8821C-002)
- MX882101C - 001 - GSM Voice Codec (Requires MT8821C-011 and MX882101C)
- MX882101C - 002 - GSM External Packet Data (Requires MX882101C)
- MX882101C - 005 - GSM A-GPS (Requires MX882101C)
- MX882101C - 011 - EGPRS Measurement Software (Requires MX882101C)
- MX882102C - CDMA2000 Measurement Software (Requires MT8821C-003)
- MX882102C - 001 - CDMA2000 Voice Codec (Requires MT8821C-011 and MX882102C)
- MX882102C - 002 - CDMA2000 External Packet Data (Requires MX882102C)
- MX882106C - 1xEV-DO Measurement Software (Requires MT8821C-005 and MX882102C)
- MX882106C - 002 - 1xEV-DO External Packet Data (Requires MX882106C)
- MX882107C - TD-SCDMA Measurement Software (Requires MT8821C-007)
- MX882107C - 001 - TD-SCDMA Voice Codec (Requires MT8821C-011 and MX882107C)
- MX882107C - 002 - TD-SCDMA External Packet Data (Requires MX882107C)
- MX882107C - 003 - TD-SCDMA Video Phone Test (Requires MX882107C)
- MX882107C - 011 - TD-SCDMA HSDPA Measurement Software (Requires MX882107C)
- MX882107C - 012 - TD-SCDMA HSDPA Evolution Measurement Software (Requires MX882107C-011)
- MX882107C - 021 - TD-SCDMA HSUPA Measurement Software (Requires MX882107C-011)
- MX882112C - LTE FDD Measurement Software (Requires MT8821C-008)
- MX882112C - 006 - LTE FDD IP Data Transfer (Requires MX882112C)
- MX882112C - 011 - LTE FDD 2x2 MIMO DL (Requires MT8821C-012 and MX882112C)
- MX882112C - 012 - LTE FDD 4x4 MIMO DL (Requires MT8821C-026, MT8821C-029 and MX882112C-011)
- MX882112C - 016 - LTE FDD CS Fallback to W-CDMA/GSM (Requires MX882112C and MX882100C or MX882101C)
- MX882112C - 017 - LTE FDD CS Fallback to CDMA2000 (Requires MX882112C and MX882102C)
- MX882112C - 021 - LTE-Advanced FDD DL CA Measurement Software (Requires MT8821C-025 and MX882112C)
- MX882112C - 022 - LTE-Advanced FDD UL CA Measurement Software (Requires MX882112C-021)
- MX882112C - 026 - LTE-Advanced FDD DL CA IP Data Transfer (Requires MX882112C-006 and MX882112C-021)
- MX882112C - 031 - LTE-Advanced FDD DL CA 3CCs Measurement Software (Requires MT8821C-008 (2 sets), MT8821C-026 and MX882112C-021)
- MX882112C - 036 - LTE-Advanced FDD DL CA 3CCs IP Data Transfer (Requires MX882112C-026 and MX882112C-031)
- MX882112C - 041 - LTE-Advanced FDD DL CA 4CCs Measurement Software (Requires MT8821C-027 and MX882112C-031)
- MX882112C - 046 - LTE-Advanced FDD DL CA 4CCs IP Data Transfer (Requires MX882112C-036 and MX882112C-041)
- MX882112C - 051 - LTE-Advanced FDD DL CA 5CCs Measurement Software (Requires MT8821C-012 and MX882112C-041)
- MX882112C - 061 - LTE-Advanced FDD DL CA 6CCs Measurement Software (Requires MX882112C-051)
- MX882113C - LTE TDD Measurement Software (Requires MT8821C-008)
- MX882113C - 006 - LTE TDD IP Data Transfer (Requires MX882113C)
- MX882113C - 011 - LTE TDD 2x2 MIMO DL (Requires MT8821C-012 and MX882113C)
- MX882113C - 012 - LTE TDD 4x4 MIMO DL (Requires MT8821C-026, MT8821C-029 and MX882113C-011)
- MX882113C - 016 - LTE TDD CS Fallback to W-CDMA/GSM (Requires MX882113C and MX882100C or MX882101C)
- MX882113C - 017 - LTE TDD CS Fallback to CDMA2000 (Requires MX882113C and MX882102C)
- MX882113C - 018 - LTE TDD CS Fallback to TD-SCDMA/GSM (Requires MX882113C and MX882101C or MX882107C)
- MX882113C - 021 - LTE-Advanced TDD DL CA Measurement Software (Requires MT8821C-025 and MX882113C)
- MX882113C - 022 - LTE-Advanced TDD UL CA Measurement Software (Requires MX882113C-021)
- MX882113C - 026 - LTE-Advanced TDD DL CA IP Data Transfer (Requires MX882113C-006 and MX882113C-021)
- MX882113C - 031 - LTE-Advanced TDD DL CA 3CCs Measurement Software (Requires MT8821C-008 (2 sets), MT8821C-026 and MX882113C-021)
- MX882113C - 036 - LTE-Advanced TDD DL CA 3CCs IP Data Transfer (Requires MX882113C-026 and MX882113C-031)
- MX882113C - 041 - LTE-Advanced TDD DL CA 4CCs Measurement Software (Requires MT8821C-027 and MX882113C-031)
- MX882113C - 046 - LTE-Advanced TDD DL CA 4CCs IP Data Transfer (Requires MX882113C-036 and MX882113C-041)
- MX882113C - 051 - LTE-Advanced TDD DL CA 5CCs Measurement Software (Requires MT8821C-012 and MX882113C-041)
- MX882113C - 061 - LTE-Advanced TDD DL CA 6CCs Measurement Software (Requires MX882113C-051)
- MX882115C - W-CDMA HSPA Evolution IP Data Transfer (Requires MT8821C-008)
- MX882115C - 001 - DC-HSDPA IP Data Transfer (Requires MX882115C)
- MX882116C - LTE Category M1 Measurement Software (Requires MT8821C-008)
- MX882116C - 006 - LTE Category M1 IP Data Transfer (Requires MX882116C)
- MX882117C - NB-IoT Measurement Software (Requires MT8821C-008)
- MX882117C - 006 - NB-IoT IP Data Transfer (Requires MX882117C)
- MX882120C - Sequence Measurement Software
- MX882120C - 001 - W-CDMA Measurement Software (Requires MX882120C)
- MX882120C - 002 - GSM Measurement Software (Requires MX882120C)
- MX882120C - 003 - CDMA2000 Measurement Software (Requires MX882120C)
- MX882120C - 004 - LTE Measurement Software (Requires MX882120C)
- MX882120C - 005 - TD-SCDMA Measurement Software (Requires MX882120C)
- MX882132C - CDMA2000 Measurement Software Lite
- MX882136C - 1xEV-DO Measurement Software Lite
- MX882142C - LTE FDD Measurement Software Lite
- MX882143C - LTE TDD Measurement Software Lite
- MX882164C - LTE VoLTE Echoback (Requires MX882112C for LTE FDD, requires MX882113C for LTE TDD)
- MT8821C - ES210 - 2 Years Extended Warranty Service
- MT8821C - ES310 - 3 Years Extended Warranty Service
- MT8821C - ES510 - 5 Years Extended Warranty Service
| Model | MT8821C |
|---|
L’Anritsu MT8821C è un analizzatore RF e protocollo versatile progettato per lo sviluppo di dispositivi mobili. Supporta il 2G fino a LTE-Advanced, i formati IoT come NB-IoT e LTE Cat-M1, e offre copertura in frequenza da 30 MHz a 3,8 GHz con estensione opzionale fino a 6 GHz. Dotato di GUI con touchscreen ad alta risoluzione, il dispositivo integra applicazioni per EVM, throughput e verifica del protocollo, consentendo anche test automatizzati tramite GPIB o Ethernet secondo gli standard RF 3GPP TS 36.521-1.
Ideale per la valutazione di GSM, W-CDMA/HSPA, LTE-Advanced e IoT, il MT8821C supporta test OTA, misurazioni su canali paralleli e validazione codec voce, rendendolo perfetto per applicazioni R&S e ambienti di produzione.
Testwall può fornire l’Anritsu MT8821C usato, completamente testato. Con supporto esperto e consegna globale, Testwall garantisce strumentazione ad alte prestazioni con affidabilità e qualità di servizio impareggiabili. Contattaci direttamente se hai bisogno di calibrazione o riparazione dell’Anritsu MT8821C.
