Anritsu S361E

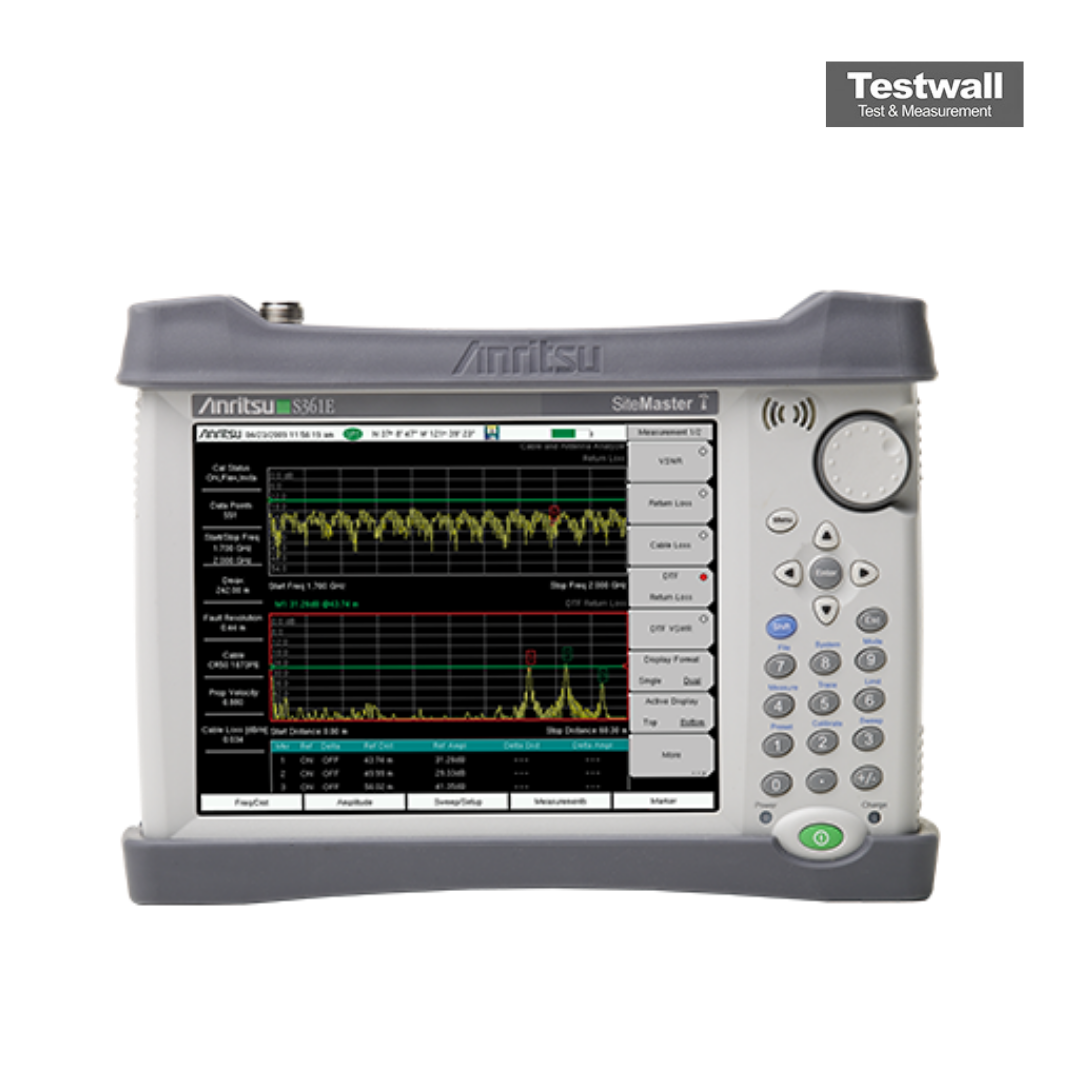

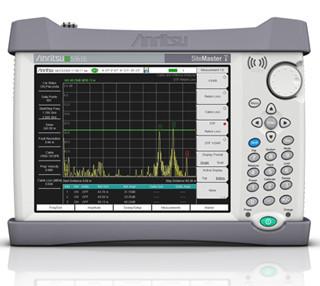

AnritsuS361E The AnritsuS361E Site Master Handheld Cable and Antenna Analyser covers the 2 MHz to 6 GHz spectrum and is the industry standard for installing, provisioning, maintaining, and troubleshooting wireless base station cable and antenna systems. Accurate, versatile, affordable, rugged and a true handheld at under 5 pounds (including battery), Site Master is ideally suited for field technicians of any experience level working with VHF, broadcasting, paging, cellular, PCS/GSM, 3G, 4G and ISM.The S361E SiteMaster measurement capabilities include precision Return Loss/SWR, Cable Loss and power meter measurements. Frequency Domain Reflectometry (FDR) provides superior Distance to Fault (DTF) analysis to locate faults accurately. Patented RF interference rejection enables accurate, repeatable measurements in the presence of high RF activity. Data analysis software enables assessment of system trends, problems, and performance in addition to professional report generation.1 ms/data Sweep Speed saves the technician time and enables easier identification of intermittent problems in real time. FlexCal broadband calibration allows troubleshooting cable and antenna systems without multiple calibrations and calibration setups. Built-In Worldwide Signal Standards eliminates the need to remember system frequencies and manually input the start and stop frequency values. Built-In Average Cable Loss eliminates the need to calculate a measured cable loss value. Built-In Power Meter Option measures the base station transmitter power accurately. The High Accuracy Power Meter (Option 0019) provides true RMS measurements from 50 MHz to 6 GHz.Data analysis software is included, along with a soft carrying case, rechargeable/field-replaceable battery, AC/DC power supply, 12V automobile cigarette lighter adapter and users guide.Highlights of the AnritsuS361E include:Cable and Antenna:

Measurements: RL, VSWR, Cable Loss, DTF, Phase

2-port Transmission Measurement: High/Low Power

Sweep Speed: 1 ms/data point, typical

Display: Single or Dual Measurement Touchscreen

Calibration: OSL, InstaCal™, and FlexCal™

Bias Tee: 32 V internal

Functional highlights of the AnritsuS361E include:

4.5 hour battery operation time

Store 2000 Traces internally

Touchscreen keyboard

Quick Name Matrix

PIM Analyser (S332E and S362E only)

AM / FM / PM Analyser

High Accuracy Power Meter

4, 6, 8, 18, 26 GHz USB Sensors available

On-Screen Interference Mapping

On-Screen Coverage Mapping

GPS tagging of saved traces

USB & Optional Ethernet (Option 0411) for data transfer and instrument control

Increase throughput by automating repetitive or operator intensive tasks via Ethernet or USB. Remote programming provided via Ethernet (Option 0411)

< 5 minute warm-up time

E-Learning Training

Certified Line Sweep Training

Master Software Tools™

Line Sweep Tools™

easyTest Tools™
