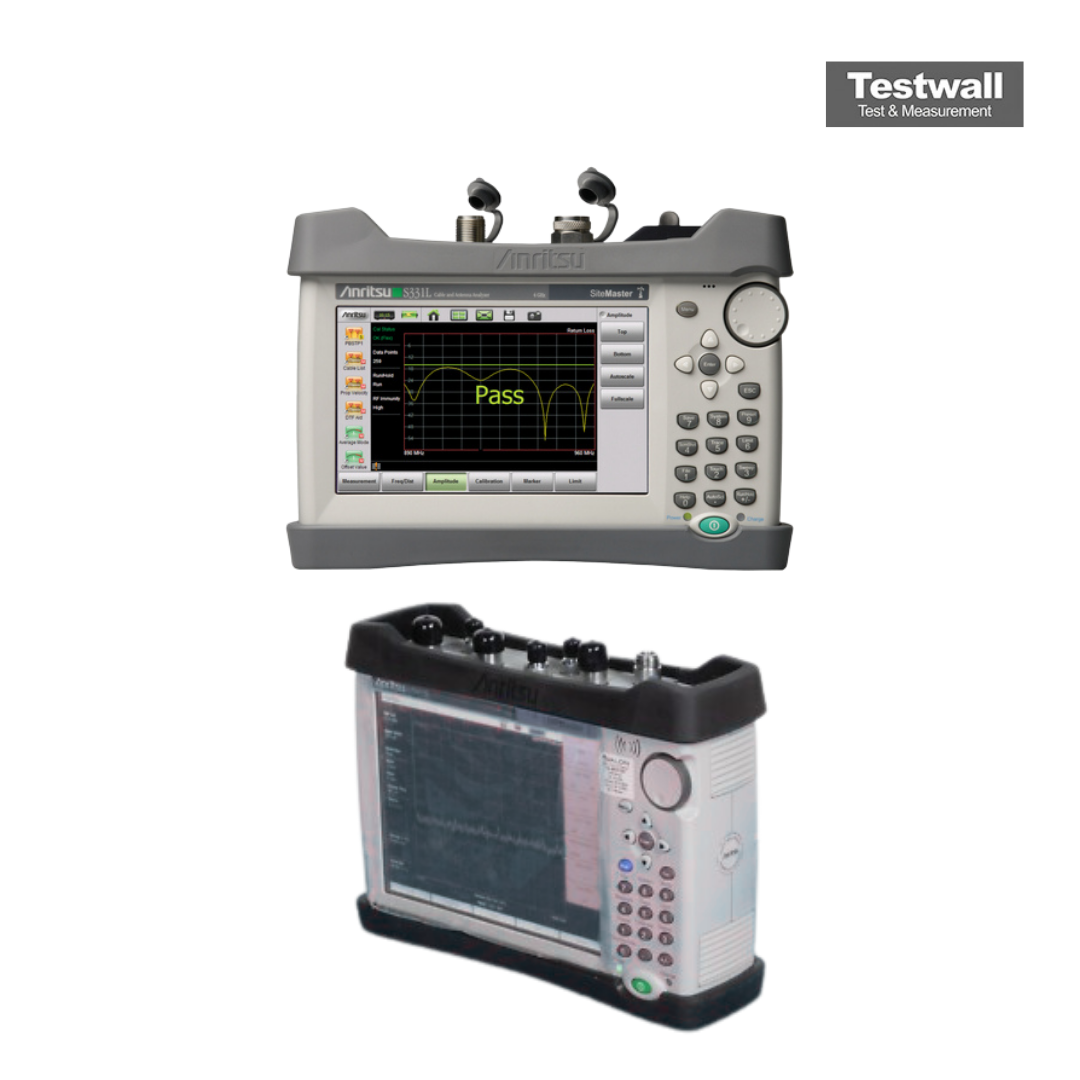

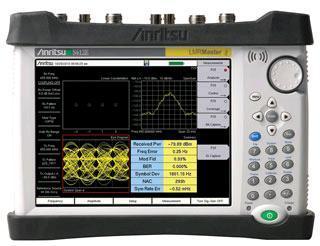

Anritsu S412E
| Produttore | Anritsu |
| Modello | S412E |
| Prodotto | LMR Master Cable, Antenna, Spectrum, Interference, and P25 / iDEN Modulation Analyser |
SKU
121315
AnritsuS412E LMR Master System The AnritsuS412E is the superb and second generation answer for installing and maintaining public safety systems. Built upon nine generations of handheld platforms, the LMR Master System is a champion combination of a high performance receiver / spectrum Analyser with state of the art handheld vector network Analyser plus a CW / P25 / NXDN signal generator with internally adjustable power. Features and Specifications of the AnritsuS412E include: Features of the Spectrum Analyser: Features of the VNA network Analyser: Features of the Land Mobile Radio Signal Analyser: Capabilities and Functional Features of the AnritsuS412E: Measurements: Interference Analyser: 9 kHz to 1.6 GHz frequency coverage (optional extension to 6 GHz) Dynamic range: > 95 dB in 10 Hz RBW DANL: -152 dBm in 10 Hz RBW Phase noise: -100 dBc/Hz max @ kHz offset at 1 GHz Frequency accuracy: Occupied bandwidth Channel power ACPR C/I Coverage mapping Spectrogram Signal strength RSSI Mapping 120 ppb standard (25 ºC ± 25 ºC) < 50 ppb after 3 minutes with GPS lock 1-path, 2-port vector network Analyser (VNA) w / quad trace display 500 kHz to 1.6 GZHz frequency coverage (optional extension to 6 GHz) Intuitive graphical user interface (GUI) with convnient Touch Screen VNA-quality error correction for directivity and source match Outstanding calibration stability, up to 16 hours Arbitrary data points up to 4001 IF bandwith selections of 10 Hz to 100 kHz 100 dB transmission dynamic range 850 μs/data point sweep speed Analyzes Narrowband FM analog systems Analyzes: 100 kHz to 1.6 GHz frequency coverage (optional extension to 6 GHz) Internal signal generator: 2.0 dB signal generator accuracy (typical) P25/P25p2, NXDN, and ETSI DMR BER test patterns including 1011 Hz, 1031 Hz, and V.52/0.153 Duplex test: Simultaneous analysis and generation of analog or digital LMR signals Independent control of both receive/transmit frequencies and test patterns P25 (TIA-102, CAAA-C) P25 Phase 2 (TIA-102, CCAA) DMR (MotoTRBO™) NXDN™ ITC-R PTC TETRA digital systems 0.1 dB resolution 0 dBm to -130 dBm (spec to -120 dBm) 3 hour battery operation time Analog FM and digital LMR Analyser High accuracy internal power meter On-screen LMR Coverage Mapping (outdoor and indoor) Complies with MIL-PRF-28800F Class 2 Certified for use in Explosive Atmosphere per MIL-PRF-28800F and MIL-STD-810G GPS tagging of saved traces USB data transfer < 5 minute warm-up time 8.4 inch dayligh-viewable TFT LCD color resistive touchscreen - allows use while wearing gloves Alternative Product: AnritsuS412D
- Measurements:
- Occupied bandwidth
- Channel power
- ACPR
- C/I
- Coverage mapping
- Interference Analyser:
- Spectrogram
- Signal strength
- RSSI
- Mapping
- 9 kHz to 1.6 GHz frequency coverage (optional extension to 6 GHz)
- Dynamic range: > 95 dB in 10 Hz RBW
- DANL: -152 dBm in 10 Hz RBW
- Phase noise: -100 dBc/Hz max @ kHz offset at 1 GHz
- Frequency accuracy:
- 120 ppb standard (25 ºC ± 25 ºC)
- < 50 ppb after 3 minutes with GPS lock
- 1-path, 2-port vector network Analyser (VNA) w / quad trace display
- 500 kHz to 1.6 GZHz frequency coverage (optional extension to 6 GHz)
- Intuitive graphical user interface (GUI) with convnient Touch Screen
- VNA-quality error correction for directivity and source match
- Outstanding calibration stability, up to 16 hours
- Arbitrary data points up to 4001
- IF bandwith selections of 10 Hz to 100 kHz
- 100 dB transmission dynamic range
- 850 μs/data point sweep speed
- Analyzes Narrowband FM analog systems
- Analyzes:
- P25 (TIA-102, CAAA-C)
- P25 Phase 2 (TIA-102, CCAA)
- DMR (MotoTRBO™)
- NXDN™
- ITC-R PTC
- TETRA digital systems
- 100 kHz to 1.6 GHz frequency coverage (optional extension to 6 GHz)
- Internal signal generator:
- 0.1 dB resolution
- 0 dBm to -130 dBm (spec to -120 dBm)
- 2.0 dB signal generator accuracy (typical)
- P25/P25p2, NXDN, and ETSI DMR BER test patterns including 1011 Hz, 1031 Hz, and V.52/0.153
- Duplex test: Simultaneous analysis and generation of analog or digital LMR signals
- Independent control of both receive/transmit frequencies and test patterns
- 3 hour battery operation time
- Analog FM and digital LMR Analyser
- High accuracy internal power meter
- On-screen LMR Coverage Mapping (outdoor and indoor)
- Complies with MIL-PRF-28800F Class 2
- Certified for use in Explosive Atmosphere per MIL-PRF-28800F and MIL-STD-810G
- GPS tagging of saved traces
- USB data transfer
- < 5 minute warm-up time
- 8.4 inch dayligh-viewable TFT LCD color resistive touchscreen - allows use while wearing gloves
- Occupied bandwidth
- Channel power
- ACPR
- C/I
- Coverage mapping
- Spectrogram
- Signal strength
- RSSI
- Mapping
- 120 ppb standard (25 ºC ± 25 ºC)
- < 50 ppb after 3 minutes with GPS lock
- P25 (TIA-102, CAAA-C)
- P25 Phase 2 (TIA-102, CCAA)
- DMR (MotoTRBO™)
- NXDN™
- ITC-R PTC
- TETRA digital systems
- 0.1 dB resolution
- 0 dBm to -130 dBm (spec to -120 dBm)
