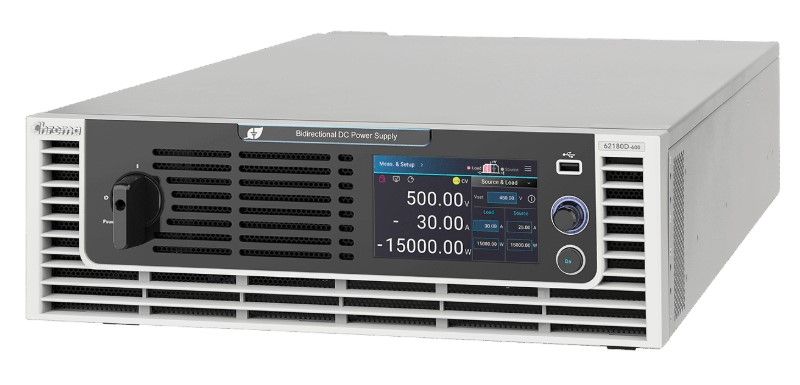

Chroma 62360D-2000HL
| Attributo | Valore |
|---|---|
| Tensione di Uscita Massima | 2000 V |
| Corrente di Uscita Massima | 30 A |
| Potenza Massima | 60000 W (60 kW) |
| Interfacce di Comunicazione | GPIB, RS-232, USB, CAN Bus, Ethernet (LAN) |
| Modalità di Funzionamento | CV (Tensione Costante), CC (Corrente Costante), CP (Potenza Costante) |
| Precisione della Tensione | ± 0,05% del fondo scala |
| Precisione della Corrente | ± 0,1% del fondo scala |
| Tensione di Ingresso AC | 200/208 V AC, trifase, 50/60 Hz |
| Fattore di Forma | Rack 19", 3U |
| Funzione di Simulazione della Batteria | Supportata (profili di carica/scarica programmabili) |
Chroma 62360D-2000HL Options:
- 62360D-2000HL - A636011 - GPIB Interface (Supports 62XXXD-2000HL models)
- 62360D-2000HL - A636012 - CAN FD Interface (Supports 62XXXD-2000HL models)
- 62360D-2000HL - B620003 - Optional Solar Array Simulation Function (Supports 62XXXD-600/1200/1800/2000HL models)
- 62360D-2000HL - A620046 - 62000D Softpanel
| Model | 62360D-2000HL |
|---|
CHROMA 62360D-2000HL Programmable, Bidirectional DC Power Supply
Chroma 62360D-2000HL programmable, bidirectional DC power supplies provide both power source and load characteristics. These two quadrant power supplies allow power from the DUT to be converted back to the utility grid and so are ideal for testing renewable energy power systems such as PV, storage, and EV inverters as well as a wide range of bidirectional power conditioning system (PCS) and may also be used as a battery simulator. CHROMA 62360D-2000HL has applications in testing power components in electric vehicles as well as bidirectional on-board chargers (BOBC), bidirectional DC converters, and DC-AC motor drivers and can perform power conversion tests of Li-ion batteries in both charge and discharge directions.
Chroma 62360D-2000HL programmable, bidirectional DC power supplies can easily be used in any region of the world due to its wide input range of 200-480 Vac and an active PFC low-cur harmonic feed to grid, reducing power consumption, power system configuration, and ambient temperature changes under high-power testing. Control options include digital USB, LAN, CANbus, GPIB as well as analog APG interfaces. The master/slave feature of 62360D-2000HL allows for up to 10 models to be paralleled easily and safely up to 180kW. 62000D series is equipped with 100 programmable user settings through the unit's List Mode. When combined with the Chroma Softpanel, the user can conduct the complex tests with simple clicks of the mouse.
Specifications for the CHROMA 62360D-2000HL Programmable, Bidirectional DC Power Supply Include:
| Source/Sink Voltage | 0 - 2000V |
| Source/Sink Current | 0 - 180A |
| Source/Sink Power | 36kW |
| Min. Load Voltage | 90V |
