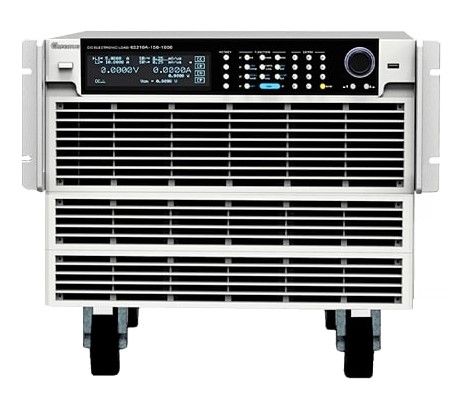

Chroma 63210A-150-1000
| Attributo | Valore |
|---|---|
| Tensione Massima di Ingresso | 150 V |
| Corrente Massima | 1000 A |
| Potenza Massima | Fino a 63210A |
| Modalità di Funzionamento | CC, CV, CR, CP |
| Interfaccia di Comunicazione | GPIB, USB, RS-232 |
| Risoluzione della Corrente | 1 mA |
| Risoluzione della Tensione | 1 mV |
| Protezioni Integrate | Sovratensione, Sovratemperatura, Sovracorrente |
| Dimensioni (L x A x P) | Formato rack 19 pollici |
| Temperatura di Funzionamento | 0°C - 40°C |
Chroma 63210A-150-1000 Options:
- 63210A-150-1000 - A600009 - GPIB cable (200cm)
- 63210A-150-1000 - A600010 - GPIB cable (60cm)
- 63210A-150-1000 - A632000 - Softpanel for 63200A Series
- 63210A-150-1000 - A632006 - NI USB-6211 Bus-Powered Multifunction DAQ
- 63210A-150-1000 - A636000 - GPIB interface
- 63210A-150-1000 - A636010 - Ethernet interface
- 63210A-150-1000 - B632002 - Rack mounting kit for 7U models (8kW/10kW/12kW)
| Model | 63210A-150-1000 |
|---|
CHROMA 63210A-150-1000 Programmable DC Electronic Load (Call for availability)
Chroma's 63200A series high power DC electronic loads with digital signal microprocessor built in have the optimal speed and control performance designed for testing a wide range of power conversion products. The 300% peak overpower capability provides extra headroom for fault condition simulations in automotive batteries, fuel cells, and more. The dynamic auto-frequency sweep function of the Chroma 63210A-150-1000 DC load enables detecting a UUTs worst case output deviation across a wide range of cur frequencies.
The Chroma 63210A-150-1000 electronic DC load offers high speed, programmable dynamic loading and sweep simulation for testing. Its super high voltage (0.015%+0.015%F.S.) and cur (0.04%+0.04%F.S.) measurement accuracy ensures the fidelity of results. A 255-set of data storage function has been built in for recall of the stored settings at any time. For automated testing, the save and recall functions can save a great deal of time. The Chroma 63210A-150-1000 DC electronic load has 3 power ranges that can precisely measure the voltage and cur in real time. These Chroma 63210A-150-1000 DC loads are reliable products for engineering testing and automated test system's integration.
Specifications for the Chroma 63210A-150-1000 Programmable DC Electronic load include:
| Low | Mid | High | |
| Voltage | 0-150V | ||
| Current | 0-100A | 0-500A | 0-1000A |
| Power | 0-10000W | ||
| Min Operating Voltage | 0.15V@100A | 0.75V@500A | 1.5V@1000A |
