COM-POWER AH-118 Options:
- AH-118 - PAM-118A - Preamplifier
- AH-118 - AT-812 - Antenna Tripod
| Model | AH-118 |
|---|

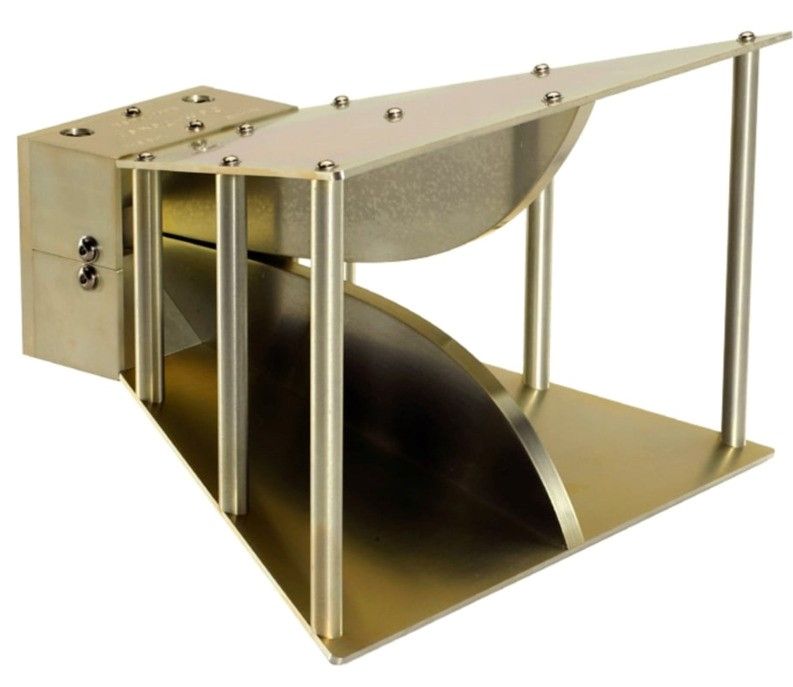

The COM-POWER AH-118 is a standard broadband double ridged waveguide horn antenna. This antenna is linearly polorized and is designed specifically for EMC measurements for the 1-18 GHz frequency range.
The AH-118 Horn antenna can be used for emissions and immunity testing. The gain of this Horn antenna is at least 6.1 dBi over the entire frequency range. Model AH-118 can accept up to 300 Watts input power in continuous mode.
This COM-POWER AH-118 antenna is suitable for ANSI 63.4, CISPR16, EN 55022, FAA and other EMC standards that require emissions and immunity testing.
Specifications of the COM-POWER AH-118 Antenna include:
- Frequency Range: 1 GHz - 18 GHz
- Input Power: 300 Watts continious
- VSWR: 2.0 : 1
- Polorization: Linear
- Impedance: 50 Ohm
- Connector type: N Female
- Weight: 4 lb. max.
- Size: 7.8" X 9.5" X 5.6" max.
