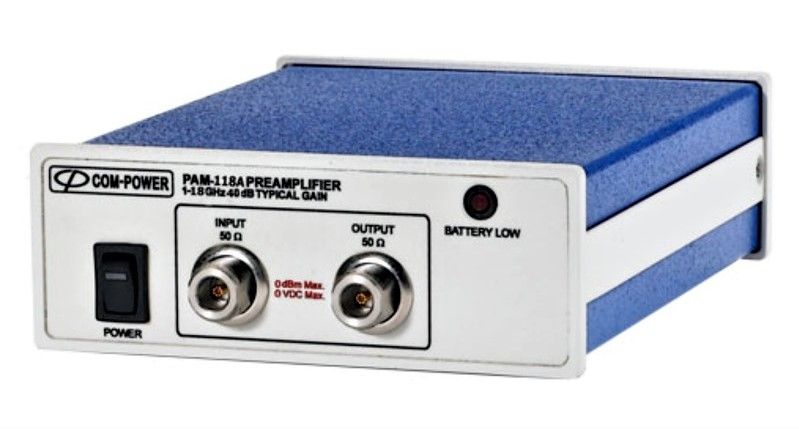

COM-POWER PAM-118A

COM-POWER PAM-118A  (available for rental)

The COM-POWER PAM-118A is a Wideband, high gain, bench top microwave preamplifier. The PAM-118A has a frequency range of 500 MHz to 18 GHz. This preamplifier is primarily intended for EMC applications; However, it may be used for other application that require low noise and high signal amplification. The simple front panel consists of two 50 Ohm matched precision N-connectors for input and out- put. The preamplifier was designed to have flat gain with minimal variation over the entire frequency range. The flat gain helps in taking fast readings during trouble shutting, R&D phase. The high gain and low noise figure of PAM-118A increases system sensitivity of effectively all measurement systems. It is very effective in measuring low level signals during Electromagnetic Interference (EMI) testing. It has low VSWR and high reverse isolation. Each preamplifier is individually calibrated using equipment traceable to National Institute of Standards and Technology. Individual data and certificate of calibration is shipped with each unit. The PAM- 118A is battery powered to avoid any noise effects of power cables. It can also be powered by 15 VDC, 500 mA power adapter (provided with the unit).

Specifications of the COM-POWER PAM-118A PreAmplifier include:

• High Gain - 40 dB minimum
• Low Noise Figure: 3 dB max
• Pout @ 1 dB Gain Compression: +12 dBm
• Battery Powered
• Frequency: 500 MHz - 18 GHz
• Application: EMI / EMC Measurements
• Gain Flatness: + 2.5 dB
• Impedance I/O: 50 Ohms
• Connector Type: Precision N-type (female)
• Power: 15 VDC, 500 mA
• Size: 7.7" x 6.5" x 3.2" (18.4 x 15.6 x 7.7 cm)
• Weight: 2.5 lbs. (1.1Kg)
