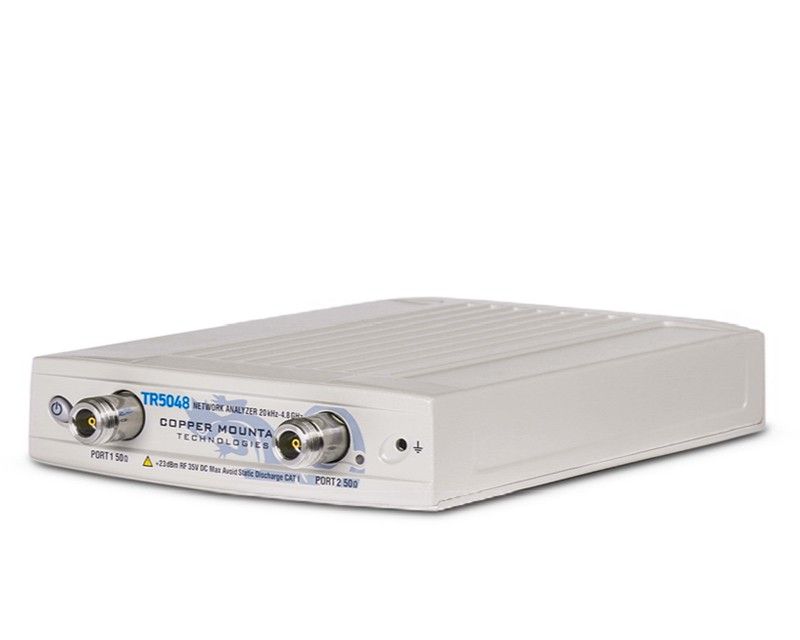

Copper Mountain Technologies TR5048
20kHz to 4.8GHz Vector Network Analyser
100 kHz – 4,8 GHz Gamma di frequenza
2 Numero di porte
fino a 148 dB Gamma dinamica
da -45 dBm a +3 dBm Potenza di uscita
N femmina 50 Ω Connettori RF
| Attributo | Valore |
|---|---|
| Gamma di frequenza | 100 kHz – 4,8 GHz |
| Numero di porte | 2 |
| Gamma dinamica | fino a 148 dB |
| Potenza di uscita | da -45 dBm a +3 dBm |
| Connettori RF | N femmina 50 Ω |
| Interfaccia PC | USB 2.0 |
| Punti di misura | fino a 100.001 punti per traccia |
| Alimentazione | Tramite USB (bus-powered) |
| Dimensioni | 215 mm × 171 mm × 38 mm |
| Peso | circa 1,0 kg |
| Model | Mountain |
|---|
The Copper Mountain Technologies TR5048 VNA is an S-parameter Vector Network analyser designed for operation with an external PC. It connects to any Windows-based computer via USB and delivers accurate testing and measurement through a platform that can keep up with constant advancements as well as be remotely accessed.
- Frequency range: 20 kHz to 4.8 GHz
- Measured parameters: S11, S21
- Output power adjustment range: -55 dBm to +5 dBm
- 200,001 measurement points
- Measurement time per point: 200 ?s
- High price-performance ratio
- Time Domain Measurements with Gating standar
