CPI (Communication & Power Industries) VZU-6994
CPI (Communication & Power Industries) VZU-6994 Options:
- VZU-6994 - VZU-6994AC - Ku-Band 13.75 to 14.50 GHz, 350W configuration
- VZU-6994 - VZU-6994AD - Ku-Band 13.75 to 14.50 GHz, 400W configuration
- VZU-6994 - VZU-6994AB - Ku-Band 12.75 to 14.50 GHz, 350W configuration
- VZU-6994 - VZU-6994AP - Ku-Band 14.7 to 15.2 GHz, 350W configuration
- VZU-6994 - Space 1, Code 0 - Prime Power: Single Phase, 110-240 VAC (Standard)
- VZU-6994 - Space 2, Code 0 - Front Panel Assembly: Standard (01018626-00)
- VZU-6994 - Space 2, Code S - Front Panel Assembly: Special Front Panel Assembly (01019455-XX)
- VZU-6994 - Space 3, Code G - Attenuator: IPA W/Integral PIN Diode (Standard)
- VZU-6994 - Space 4, Code M - Forward Power Metering (Standard)
- VZU-6994 - Space 5, Code 0 - Integral Linearizer: None
- VZU-6994 - Space 5, Code T - Integral Linearizer: Include Integral LTI Linearizer (01021338-07)
- VZU-6994 - Space 5, Code P - Integral Linearizer: Include LIPA (IPA with Linearizer) option (01040152-00)
- VZU-6994 - Space 6, Code 0 - Computer I/F Port: Factory Pre-set at RS-422/485 4-wire (01019702-00)
- VZU-6994 - Space 6, Code H - Computer I/F Port: Factory Pre-set at RS-232 (01019702-01)
- VZU-6994 - Space 6, Code S - Computer I/F Port: Factory Pre-set at RS-422/485 4-wire w/SA Bus Adapter (01019702-02)
- VZU-6994 - Space 8&9, Code 01 - Short Exhaust Duct (01020747-00)
- VZU-6994 - Space 8&9, Code 02 - Receive Filter, External (01020654-00)
- VZU-6994 - Space 8&9, Code 03 - High Altitude Heatsink (01027598-00)
- VZU-6994 - Space 8&9, Code 05 - 8 inch dia Intake Duct (01033309-00)
- VZU-6994 - Space 8&9, Code 06 - 13 inch long duct kit (01030901-00)
| Model | VZU-6994 |
|---|

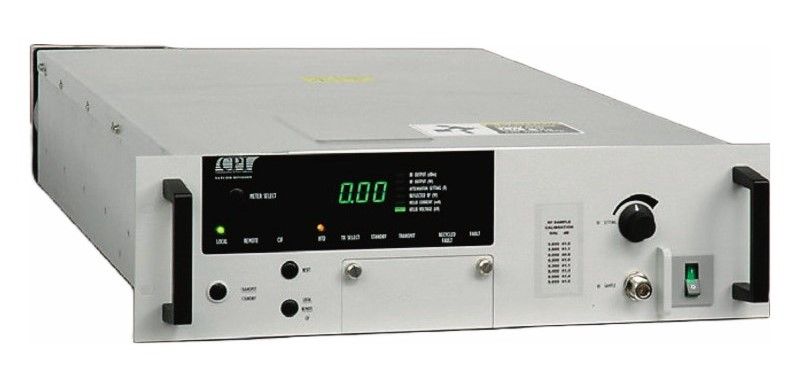

L’amplificatore TWT CPI VZU-6994 fornisce fino a 400 watt di potenza in un compatto chassis 3RU, ottimizzato per le frequenze Ku-Band. Engineered with a dual-depressed collector helix traveling wave tube, it ensures high efficiency and reliability, proven in military and airborne applications. Designed for wideband, single and multi-carrier satellite services, it offers exceptional performance for demanding earth station environments.
Con una costruzione modulare, diagnostica integrata e indicatori chiari, il CPI VZU-6994 garantisce una manutenzione semplice. Its microprocessor-controlled logic, digital metering, and optional linearizer further enhance usability and intermodulation performance.
Testwall può fornire il CPI VZU-6994 TWT Amplifier usato, completamente testato. Con supporto esperto e consegna globale, Testwall garantisce strumenti ad alte prestazioni con affidabilità e qualità di servizio impareggiabili. Si prega di contattarci direttamente se avete bisogno di calibrazione o riparazione del CPI VZU-6994 TWT Amplifier.
