EA Elektro-Automatik PSI12000-40
| Produttore | EA Elektro-Automatik |
| Modello | PSI12000-40 |
| Prodotto | Autoranging DC Power Supply, 2000V, 40A, up to 30kW (option dependent) |
| Tipo | Usato |

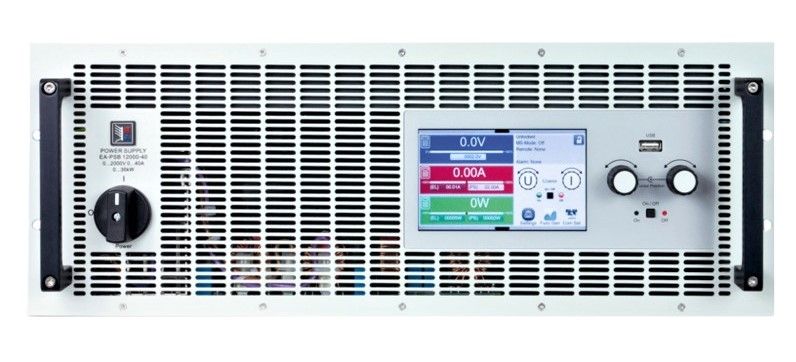

ELEKTRO-AUTOMATIK PSI12000-40 DC Power Supply
The new high efficiency laboratory power supplies of series EA-PSI12000-40 are a power extension of series EA-PSI 9000 3U, offering twice the power in a space of just 1 extra unit of height. This saves a space of 2U or one third compared to EA-PSI 9000 3U and 30 kW of power. User-friendly, interactive menu navigation makes the use of this equipment remarkably easy and most effective. User and process profiles can be edited, saved and archived so that the reproducibility of a test or other application is improved. All models are provided with an active Power Factor Correction circuit and offer a wide range AC input that runs with 342...528 V three-phase, covering the typical worldwide grid voltages 380 V, 400 V and 480 V.
The Elektro-Automatik PSI12000-40 are equipped with a flexible autoranging output stage which provides a higher output voltage at lower output current, or a higher output cur at lower output voltage, always limited to the adjustable power set value or the rated power. Therefore, a wide range of applications can already be covered by the use of just one unit. Included with the PSI12000-40 is a control software for Windows PCs, which allows for the remote control of multiple identical or even diffe types of devices. It has a clear interface for all set and actual values, a direct input mode for SCPI and ModBus RTU commands, a firmware update feature and the semi-automatic table control named €œSequencing ". For protection of the equipment connected, it's possible to set an overvoltage protection threshold (OVP), as well as one for overcur (OCP) and overpower (OPP).
Specifications for the ELEKTRO-AUTOMATIK PSI12000-40 DC Power Supply Include:
| Voltage | 0 - 2000V |
| Current | 0 - 40A |
| Total Power | 30kW |
| Efficiency | Up to 95.5% |
