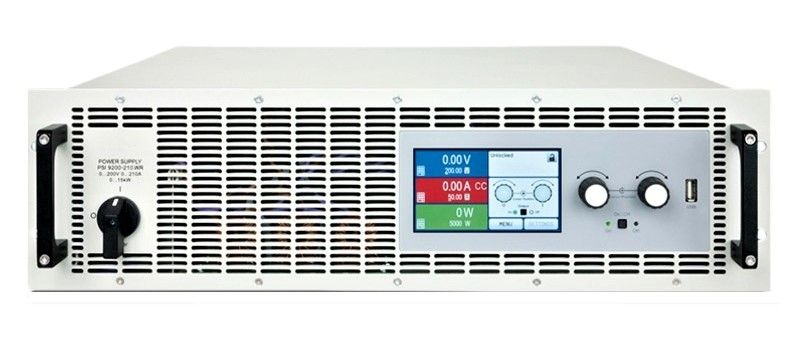

EA Elektro-Automatik PSI91000-30
| Produttore | EA Elektro-Automatik |
| Modello | PSI91000-30 |
| Prodotto | Autoranging DC Power Supply, 1000V, 30A, 10kW |
| Tipo | Usato |
ELEKTRO-AUTOMATIK PSI91000-30 DC Power Supply
The microprocessor-controlled high efficiency Elektro-Automatik PSI91000-30 laboratory power supplies offer multiple functions and features in their standard version. User-friendly, interactive menu navigation makes the use of this equipment remarkably easy and most effective. All models are equipped with a flexible autoranging output stage which provides a higher output voltage at lower output current, or a higher output cur at lower output voltage, always limited to the adjustable power set value or the rated power. Therefore, a wide range of applications can already be covered by the use of just one unit.
The Elektro-Automatik PSI91000-30 includes a software based function generator which can generate typical functions, and apply them to either the output voltage or the output current. The generator can be completely configured and controlled by using the touch panel on the front of the device, or by remote control via one of the digital interfaces. Included with the devices is a control software for Windows PC, which allows for the remote control of multiple identical or even diffe types of devices. It has a clear interface for all set and actual values, a direct input mode for SCPI and ModBus RTU commands, a firmware update feature and the semi-automatic table control named €œSequencing ". For protection of the equipment connected, it's possible to set an overvoltage protection threshold (OVP), as well as one for overcur (OCP) and overpower (OPP).
Specifications for the ELEKTRO-AUTOMATIK PSI91000-30 DC Power Supply Include:
| Voltage | 0 to 1000V |
| Current | 0 to 30A |
| Total Power | 10kW |
| Efficiency | 95% |
