EMC
EMC Compliance
9 kHz - 18 GHz Gamma di frequenza
EN 55032, EN 55035, CISPR 32, FCC Parte 15 Standard di conformità
Conforme a IEC 61000-4 serie completa Livello di immunità ai disturbi
50 Ω Impedenza di ingresso
fino a 120 dB Dinamica di misura
| Attributo | Valore |
|---|---|
| Gamma di frequenza | 9 kHz - 18 GHz |
| Standard di conformità | EN 55032, EN 55035, CISPR 32, FCC Parte 15 |
| Livello di immunità ai disturbi | Conforme a IEC 61000-4 serie completa |
| Impedenza di ingresso | 50 Ω |
| Dinamica di misura | fino a 120 dB |
| Risoluzione di banda | 200 Hz - 1 MHz (selezionabile) |
| Tipo di rilevatore | Picco, Quasi-picco, Media, RMS |
| Interfacce di connessione | USB, LAN (Ethernet), GPIB |
| Alimentazione | 100 - 240 V CA, 50/60 Hz |
| Temperatura di esercizio | 0 °C - 50 °C |
EMC Compliance Options:
- HMS-X - HMS-EMC (HV213) - EMC option including preamplifier, activates all functions required for EMC precompliance measurements
- HMS-X - HMS-3G (HV212) - Bandwidth upgrade, increases frequency range from 1.6 GHz to 3 GHz
- HMS-X - HMS-TG (HV211) - Unlocks the built-in tracking generator (frequency range 5 MHz to 1.6 GHz/3 GHz, output level -20 dBm to 0 dBm)
| Model | Compliance |
|---|

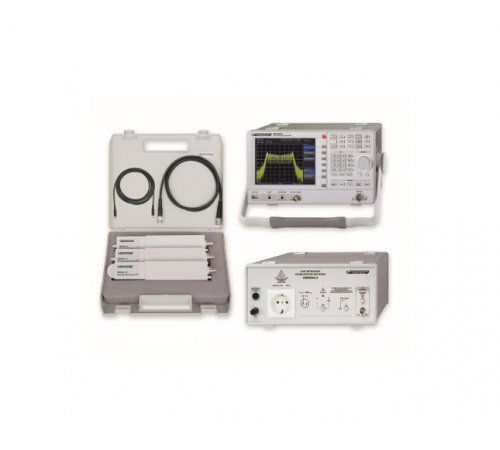

The EMC precompliance set EMC-SET1 includes all necessary instruments to analyse typical EMC problems. This set contains a spectrum analyzer HMS-X incl. HMS-EMC option, a probe set HZ530, the HM6050-2 LISN for line conducted measurements and the HMExplorer software for EMC precompliance measurements.
Key Features
- Frequency range: 100 kHz to 1.6 GHz/3 GHz
- Spectral purity greater than -100 dBc/Hz (at 100 kHz)
- SWEEP from 20 ms to 1000 s
- Detectors: auto-, min-/max.-peak, sample, RMS, average, quasi-peak
- Miscellaneous marker/?marker and peak functions
- Tracking generator
- Frequency range: 5 MHz to 1.6 GHz/3 GHz
- Output level: -20 dBm to 0 dBm
- Directly export data to USB fl ash drive, RS-232/USB dual interfacefor remote control
- Fanless design and fast boot time
