ETS-Lindgren 3109

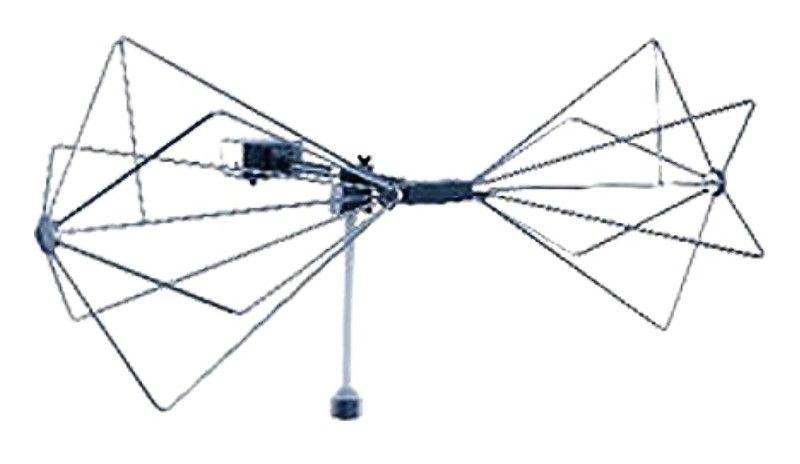

The ETS-Lindgren 3109 Biconical Antenna uses a modified Guanella balun for impedance transformation and matching, and it is constructed of much heavier materials so that maximum continuous input power can reach 2 kW. While this antenna typically has a high VSWR at frequencies below 70 MHz, it is still capable of generating a high field strength with acceptable input power in this region of the band. The optional extended elements markedly improve its performance in this region.
ETS-Lindgren is the only manufacturer to offer optional extended elements. These elements are twice as long as standard elements and enable users to generate high fields at low frequencies with less than 25% of the power usually required.
Key features of the ETS-Lindgren 3109 Biconical Antenna include:
- Power Handling Capability Up to 3 kW
- Unique Element Design Improves Performance
- Compact Size for Use in Limited Space
- Improved Balun Design for Increased Efficiency
- Quality Construction for Trouble-Free Service
Specifiations include:
- Frequency Minimum 20 MHz
- Frequency Maximum 300 MHz
- Connectors Type N (f)
- Impedance (Nominal) 50 ?
- Maximum Continuous Power 2 kW
- Pattern Type omnidirectional
- Peak Power 3 kW
- Polarization linear
- VSWR 1.9:1
