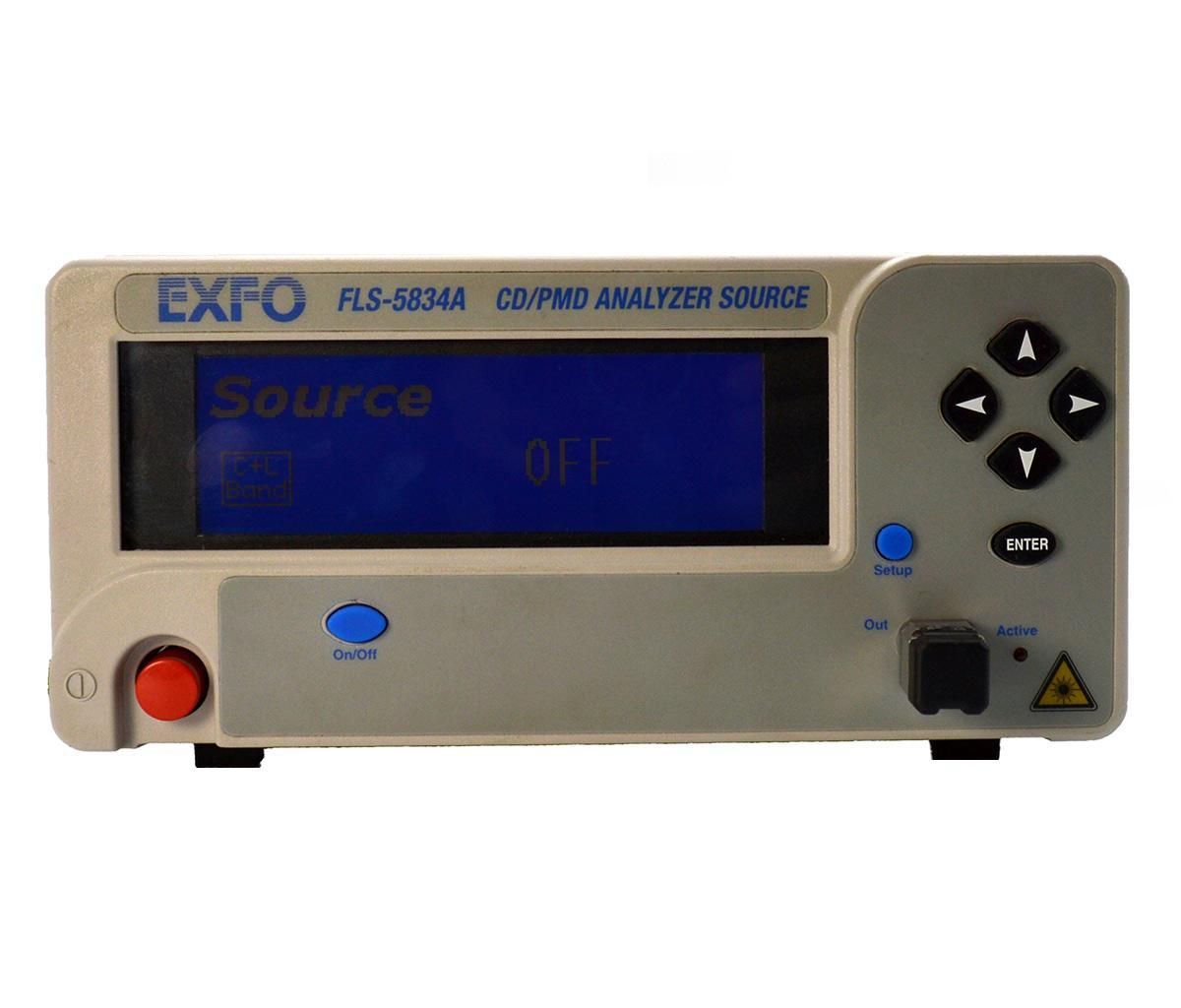

Exfo FLS-5834
| Attributo | Valore |
|---|---|
| Lunghezza d'onda | 1310 / 1550 nm |
| Tipo di sorgente luminosa | LED / Laser FP |
| Potenza di uscita | -7 dBm (tipico) |
| Stabilità della potenza | ±0,05 dB su 8 ore |
| Connettore di uscita | FC/APC intercambiabile |
| Autonomia della batteria | Fino a 200 ore di utilizzo continuo |
| Tipo di fibra compatibile | Fibra monomodale (SM) |
| Modulazione | CW, 270 Hz, 1 kHz, 2 kHz |
| Temperatura operativa | -10 °C / +50 °C |
| Dimensioni | 175 x 75 x 32 mm |
Exfo FLS-5834 Options:
- FLS-5834 - EI-EUI-28 - UPC/DIN 47256
- FLS-5834 - EI-EUI-76 - UPC/HMS-10/AG (EI only)
- FLS-5834 - EI-EUI-89 - UPC/FC narrow key
- FLS-5834 - EI-EUI-90 - UPC/ST (EI only)
- FLS-5834 - EI-EUI-91 - UPC/SC
- FLS-5834 - EI-EUI-95 - UPC/E-2000
- FLS-5834 - EA-EUI-28 - APC/DIN 47256
- FLS-5834 - EA-EUI-89 - APC/FC narrow key
- FLS-5834 - EA-EUI-91 - APC/SC
- FLS-5834 - EA-EUI-95 - APC/E-2000
EXFO's FLS-5800 CD/PMD Analyzer Source is a modulated, polarized, high-power SLED. Thanks to its high power density, you can use it as a broadband source for DWDM channel and component testing. High Modulation The FLS-5800's high modulation makes it a perfect complement to the FTB-5800 Chromatic Dispersion Analyzer, whose technology is based on the phase-shift method. This first-class duo lets you run chromatic dispersion (CD) measurements through amplifiers such as EDFAs, providing the highest accuracy in field CD testing. High Degree of Polarization When measuring PMD and a broadband, polarized source is required, turn to the FLS-5800, which features a high degree of polarization. Test PMD through EDFAs by combining the FLS-5800 with patent-design breakthrough technology FTB-5500B PMD Analyzer.
