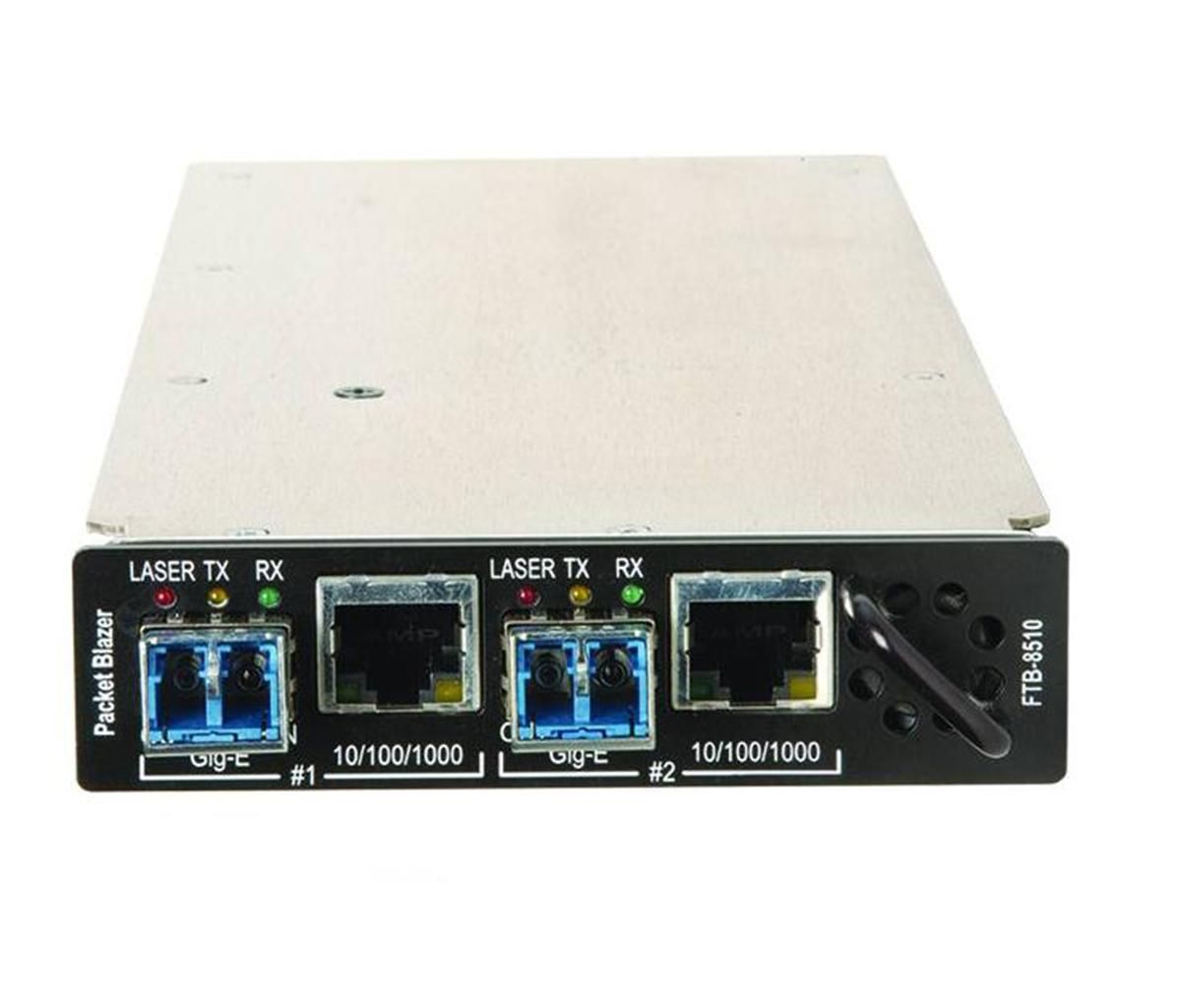

Exfo FTB-8510B
| Attributo | Valore |
|---|---|
| Lunghezza d'onda operativa | 1250 – 1650 nm |
| Velocità di trasmissione supportate | 100 Mbps, 1 Gbps, 10 Gbps Ethernet |
| Interfaccia ottica | SFP/SFP+ interscambiabile |
| Standard supportati | IEEE 802.3, RFC 2544, Y.1564 |
| Tipo di test | Analisi del traffico Ethernet, BERT, test di latenza e jitter |
| Piattaforma compatibile | EXFO FTB-500 / FTB-200 |
| Connettore ottico | LC/UPC duplex |
| Temperatura operativa | 0 °C – 50 °C |
| Alimentazione | Tramite piattaforma FTB (batteria o alimentazione esterna) |
| Certificazioni | CE, UL, CSA |
Exfo FTB-8510B Options:
- FTB-8510B - FTB-8510 - Two 10/100Base-T ports, RJ-45 connectors, 10/100 Mb/s connect speed
- FTB-8510B - FTB-8510-1 - Two 10/100Base-T ports and one Gigabit Ethernet port, RJ-45 and LC connectors
- FTB-8510B - FTB-8510-2 - Two 10/100Base-T ports and two Gigabit Ethernet ports, RJ-45 and LC connectors
- FTB-8510B - A-1.7.0 - Packet Blazer software release 1.7.0
- FTB-8510B - A-1.7.1 - Packet Blazer software release 1.7.1
- FTB-8510B - A-1.7.2 - Packet Blazer software release 1.7.2
- FTB-8510B - FTB-8590 - 1000Base-SX (850 nm) LC connectors; optical SFP transceiver module
- FTB-8510B - FTB-8591 - 1000Base-LX (1310 nm) LC connectors; optical SFP transceiver module
- FTB-8510B - FTB-8592 - 1000Base-ZX (1550 nm) LC connectors; optical SFP transceiver module
| Model | FTB-8510B |
|---|
The EXFO FTB-8510B Packet Blazer. brings performance assurance to Ethernet-based frame services. It offers all the test and measurement functionalities required to meet service-level agreements (SLAs) between service providers and their customers. This FTB-housed module tests transparent connectivity in its native format: 10/100/1000Base-T, 1000Base-SX, 1000Base-LX and 1000Base-ZX for LAN-to-LAN services delivered via ATM, frame relay, Next-Generation SONET/SDH, SONET/SDH hybrid multiplexers, switched Ethernet, VLANs, dark fiber, WDM or other means. It is capable of performing RFC-2544 testing.
Here is a comprehensive list of features available with the FTB-8510B:
- Complete EtherSAM (ITU-T Y.1564) test suite, the new standard for turning up and troubleshooting mobile backhaul and business Ethernet services
- Throughput, back-to-back, latency and frame loss measurements as per RFC 2544 (bidirectional results)
- Multistream generation and analysis, allowing quality of service (QoS) verification through VLAN and ToS/DSCP prioritization testing
- True wire-speed, stateful TCP throughput based on RFC 6349 for undisputable SLA enforcement for Ethernet services
- IPTV testing and analysis
- Up to 1 Gbit/s full-line-rate data capturing and decoding
- Complete Carrier Ethernet services portfolio: PBB-TE (MAC-in-MAC), MPLS, MPLS-TP, 802.3ah and IPv4/IPv6 1x and 2x Fiber Channel testing
- EXFO Connect-compatible: automated asset management; data goes through the cloud and into a dynamic database
If you are looking for a new or well-maintained used EXFO FTB-8510B 10/100/1000 Ethernet test module for rent or sale, contact us or request a quote today.
