Fluke 719PRO-30G
| Attributo | Valore |
|---|---|
| Intervallo di pressione | 0 - 30 psi |
| Tipo di pressione | Pressione manometrica |
| Alimentazione | 6 batterie AA |
| Pompa integrata | Pompa pneumatica a doppia azione integrata |
| Precisione della pressione | ±0,1% del fondo scala |
| Display | Display grafico retroilluminato |
| Unità di misura della pressione | psi, bar, mbar, kPa, cmH₂O, inH₂O, mmHg, inHg, kg/cm² |
| Uscita del segnale | Generazione e simulazione di segnali 4-20 mA e 0-10 V |
| Temperatura di esercizio | -10°C fino a +50°C |
| Certificazioni | ATEX, IECEx (sicurezza intrinseca per ambienti pericolosi) |
Fluke 719PRO-30G Options:
- 719PRO-30G - Fluke-719Pro-150G - Electric Pressure Calibrator, 150 PSIG
- 719PRO-30G - Fluke-719Pro-300G - Electric Pressure Calibrator, 300 PSIG
- 719PRO-30G - Fluke-720RTD - RTD Probe for 721 and 719Pro
- 719PRO-30G - Fluke-720URTDA - Universal RTD adapter for Fluke-721 and 719Pro
- 719PRO-30G - Fluke-71XTrap - Liquid and dirt trap for 718 and 719Pro
| Model | 719PRO-30G |
|---|

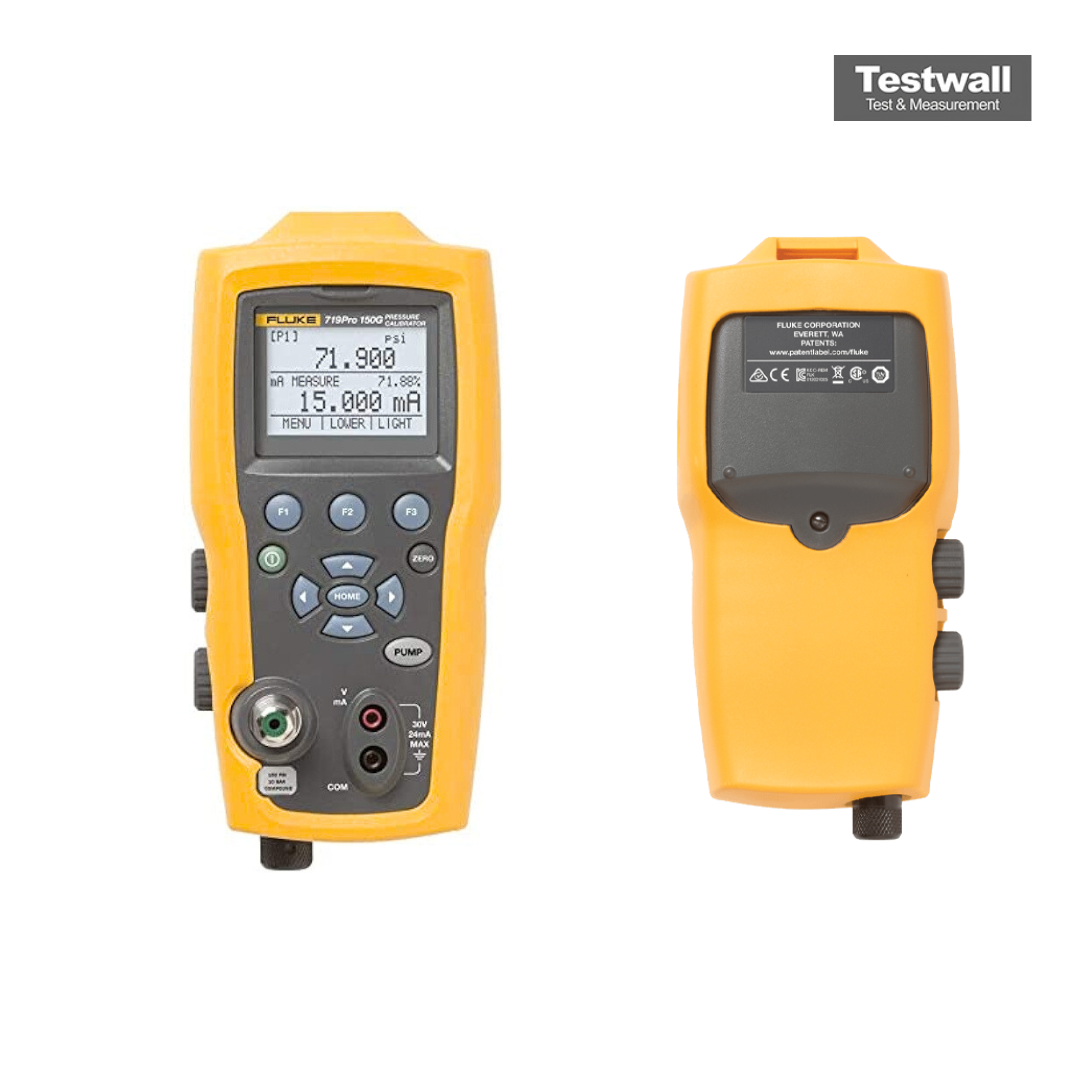

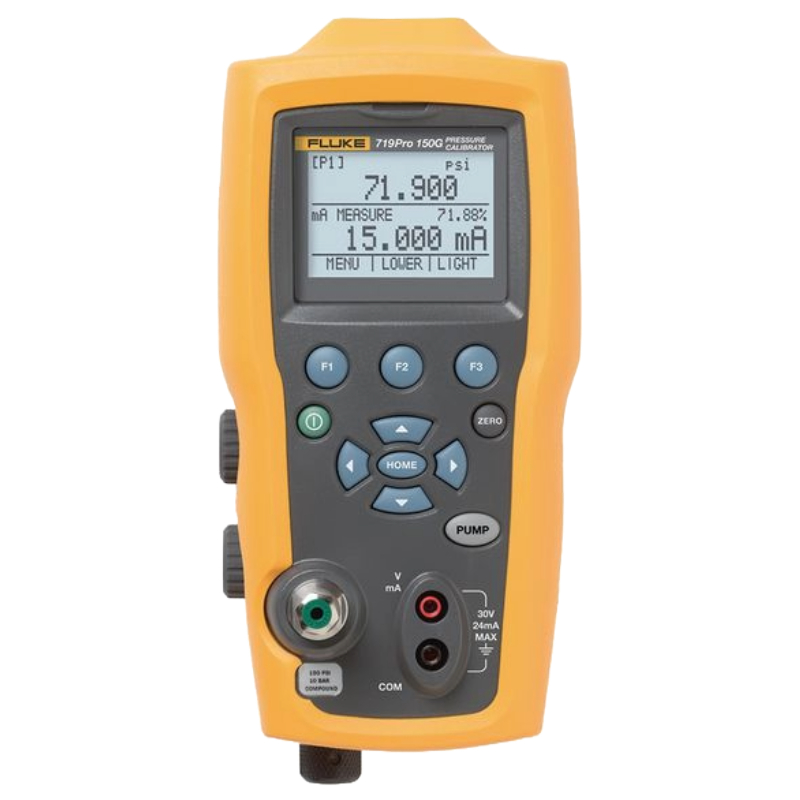

Fluke 719PRO-30G Electric Pressure Calibrator
The Fluke 719PRO-30G Electric Pressure Calibrator is the ideal test tool for calibrating high accuracy transmitters, pressure switches and pressure gauges. It includes a full functioning loop calibrator that sources, simulates and measures mA signals and more. The large backlit screen displays three parameters at once: pressure measurement from internal or external sensor, sourced/simulated or measured mA values and temperature measured by optional RTD probe.
Fluke 719PRO-30G Electric Pressure Calibrator unique integrated electric pump for one handed pressure calibration. Test pressure switches easily with easy-to-use switch test function. Precision pressure adjust vernier for easy and accurate pressure calibration. This rugged durable device is built to withstand harsh working environments. It features programmable pump limit to eliminate over-pressurization and allows user to program target pressures for pumping. Fluke 719PRO-30G Electric Pressure Calibrator delivers exceptional pressure measurement accuracy with a best-in-class uncertainty of 0.025%.
Specifications for the Fluke 719PRO-30G Electric Pressure Calibrator Include:
| Range | -12 to 30 PSI /-0.8 to 2 bar |
| Resolution | 0.001 PSI, 0.0001 bar |
| Accuracy | ± 0.025 % of full scale, 6 months, ± 0.035 % of full scale, 1 year |
| mA dc range | 0-24 mA dc (simulation and measurement) |
