Fluke PVA-1500HE2
| Attributo | Valore |
|---|---|
| Tensione massima di ingresso | 1500 V CC |
| Corrente massima di ingresso | 20 A |
| Potenza massima misurabile | 30 kW |
| Numero di canali di ingresso | 2 ingressi stringa |
| Interfaccia di comunicazione | USB, Bluetooth |
| Display | Display grafico a colori integrato |
| Funzioni di misura | Curva I-V, curva P-V, irraggiamento, temperatura |
| Compatibilità software | Fluke PVA PC Software per analisi e reportistica |
| Alimentazione | Batteria ricaricabile agli ioni di litio |
| Grado di protezione | IP54 |
Fluke PVA-1500HE2 Options:
- PVA-1500HE2 - FLUKE-PVA-1500T2 - PV Analyzer I-V Curve Tracer
- PVA-1500HE2 - FLUKE-PVA-1500HE2 - High Efficiency PV Analyzer I-V Curve Tracer
- PVA-1500HE2 - FLUKE-SOL-Ti-9Hz-KIT - High Efficiency PV Analyzer I-V Curve Tracer Thermography Kit
- PVA-1500HE2 - FLUKE-SOL-TI-27HZ-KIT - High Efficiency PV Analyzer I-V Curve Tracer Thermography Kit
- PVA-1500HE2 - FLUKE-SOL-DMM87V-KIT - High Efficiency PV Analyzer I-V Curve Tracer Multimeter and Clamp Meter Kit
- PVA-1500HE2 - FLUKE-SOL-INS87-KIT - High Efficiency PV Analyzer I-V Curve Tracer Insulation Testing, Multimeter and Clamp Meter Kit
- PVA-1500HE2 - FLUKE-SOL-INS37-KIT - High Efficiency PV Analyzer I-V Curve Tracer Insulation Testing Kit 2500V
- PVA-1500HE2 - N/A - Field charging kit (optional accessory)
- PVA-1500HE2 - N/A - Training (optional accessory)
| Model | PVA-1500HE2 |
|---|

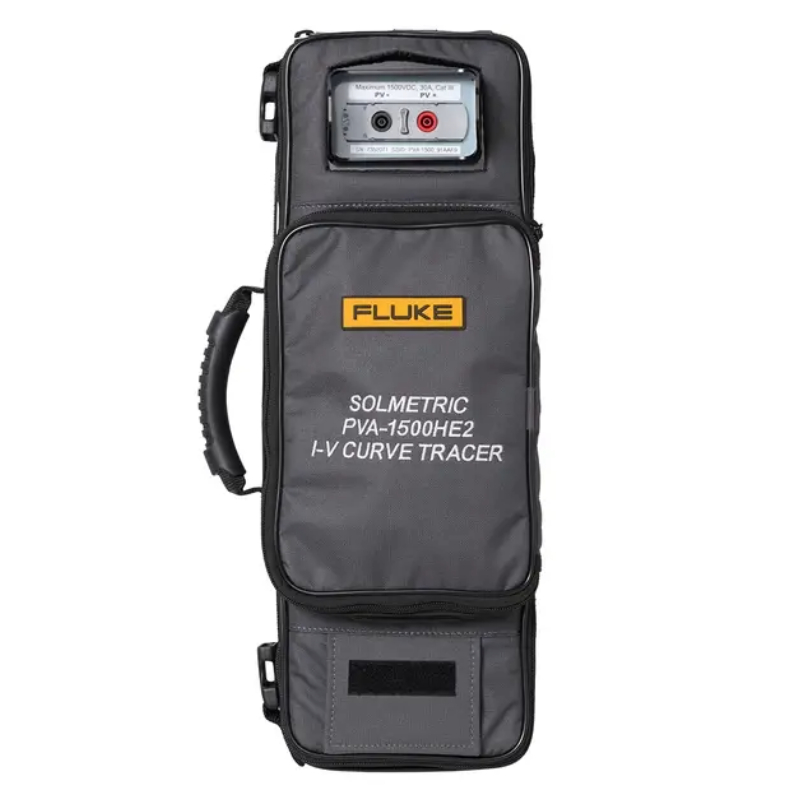

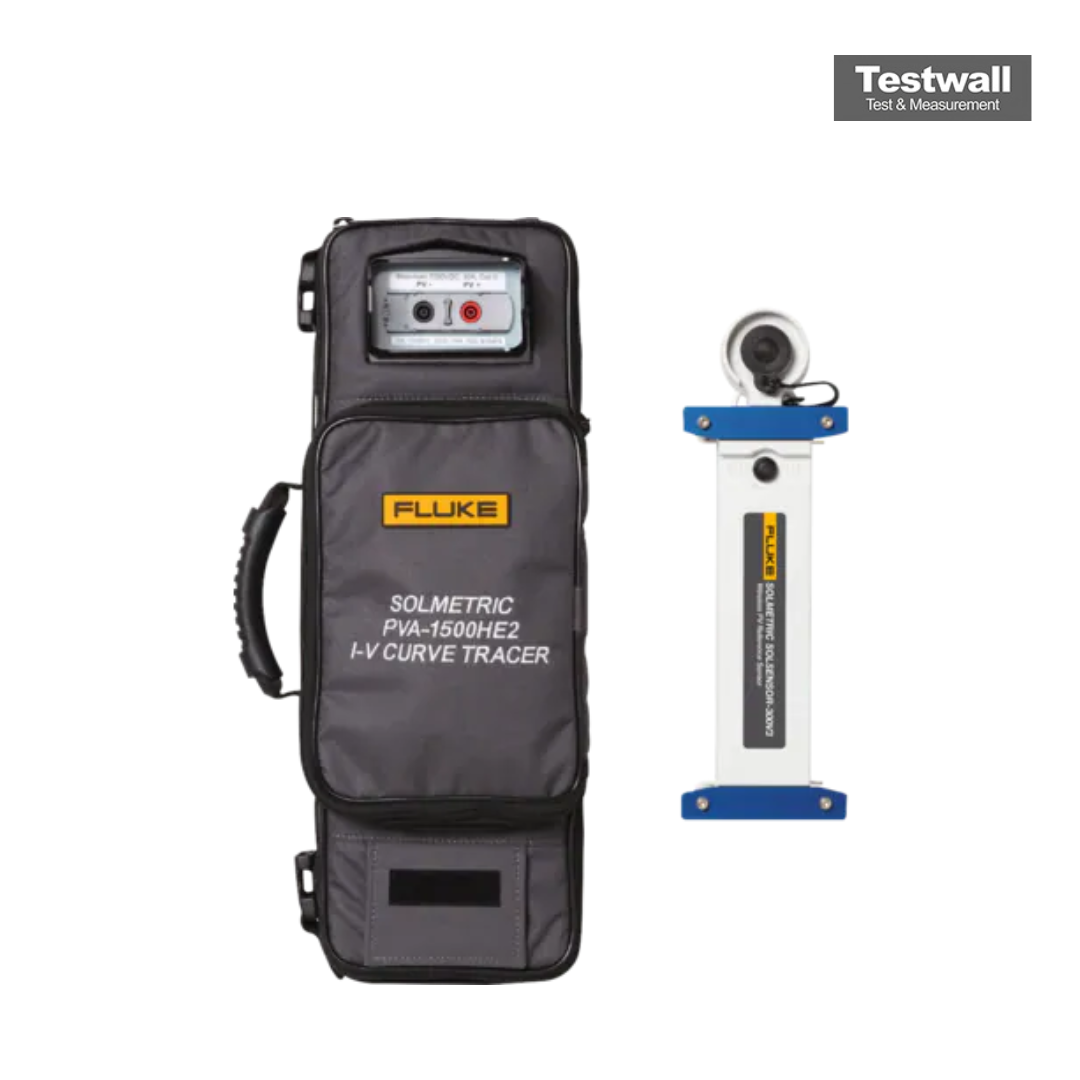

FLUKE PVA-1500HE2 PV Analyzer
The Fluke PVA-1500HE2 PV Analyzer is a cutting-edge I-V curve tracer kit designed to measure PV system performance. With this high precision testing equipment, it's easy to assess the health and performance of solar modules and arrays, making informed decisions to enhance their output and longevity. The PVA-1500 kit offers an array of advanced features, including high throughput I-V curve tracing, providing quick and detailed performance data. Its intuitive user interface enables easy navigation and real-time analysis, allowing for immediate identification of potential issues. By pinpointing problems early, Fluke PVA-1500HE2 PV Analyzer maximize solar energy production and minimize downtime.
The Fluke PVA-1500HE2 PV Analyzer elevates PV testing capabilities. It is uniquely designed to measure all string types, even those with high efficiency modules, up to 30A. The PVA-1500HE2 operates with a swift sweep-to-sweep delay of 9 seconds (at Voc<1350V). This results in the ability to measure 3.5 MW within an hour, even in high-temperature settings where standard curve tracers often fail due to overheating. Equipped with data logging capabilities, the PVA-1500HE2 enables users to capture and store measurement data for detailed analysis and documentation. Fluke PVA-1500HE2 PV Analyzer supports wireless interfaces for faster setup, safer work environment, and freedom of movement during PV troubleshooting.
Specifications for the FLUKE PVA-1500HE2 PV Analyzer Include:
| Voltage Range | 20 to 1500V DC |
| Module Efficiency | 0 to 30A DC |
| I-V Trace Points | 100 or 500 (selectable) |
| Max number of I-V sweeps per hour | 400 sweeps/hr |
