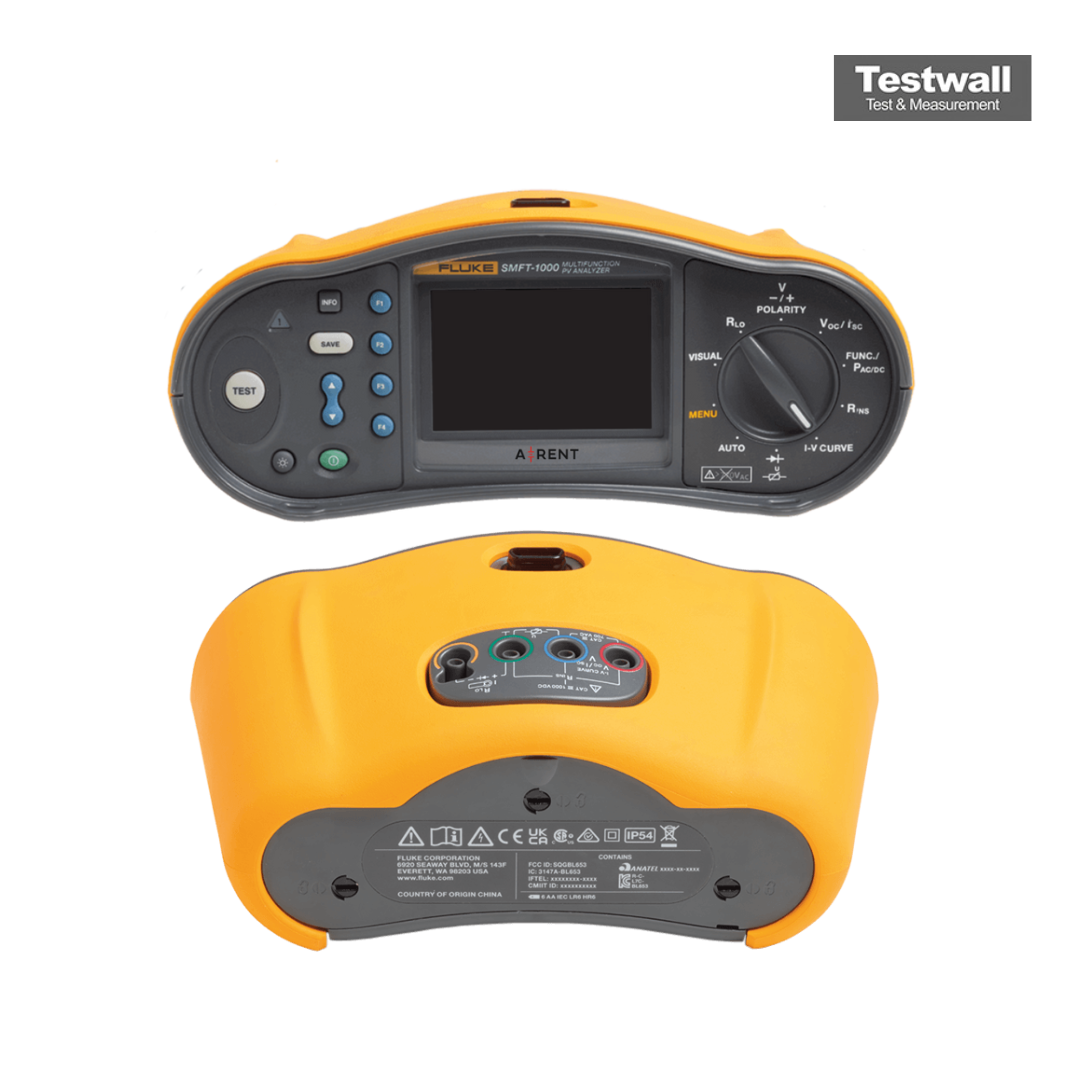

Fluke SMFT-1000
| Attributo | Valore |
|---|---|
| Tensione massima di prova | 1000 V DC |
| Misura della tensione a circuito aperto (Voc) | Fino a 1000 V DC |
| Misura della corrente di cortocircuito (Isc) | Fino a 15 A |
| Misura della resistenza di isolamento | 250 V, 500 V, 1000 V DC selezionabili |
| Misura della resistenza dei diodi di bypass | Sì, test automatico integrato |
| Display | Display grafico retroilluminato |
| Comunicazione dati | USB e Bluetooth integrato |
| Alimentazione | Batterie ricaricabili agli ioni di litio |
| Grado di protezione | IP54 (resistente a polvere e spruzzi d'acqua) |
| Conformità normativa | IEC 62446, CEI EN 62446 per impianti fotovoltaici |
Fluke SMFT-1000 Options:
- SMFT-1000 - SMFT-1000/KIT - Multifunction PV Analyzer Kit (includes Professional Tool Backpack, Wireless Solar Irradiance Meter, Current Clamp, Test Leads, and more)
- SMFT-1000 - SMFT-1000/PRO - Kit with Advanced TruTest™ Software and MC4 Solar Clamp Test Lead Set
- SMFT-1000 - SMFT-1000-BP - Professional Tool Backpack
- SMFT-1000 - TruTest™ - Data Management and Reporting Software (Lite or Advanced version, purchase software key to unlock)
- SMFT-1000 - 393 FC - CAT III 1500 V Solar Clamp Meter
- SMFT-1000 - 87V MAX - True-rms Digital Multimeter
- SMFT-1000 - 1587 FC - Insulation Multimeter
- SMFT-1000 - Ti480 PRO - Infrared Camera
- SMFT-1000 - 1625-2 GEO - Earth Ground Tester
- SMFT-1000 - 500 Series - Battery Analyzers
- SMFT-1000 - PVLEAD3 - Pomona PVLEAD3 MC4 Solar Clamp Test Lead Set
- SMFT-1000 - TL1000-MC4 - Test Lead Set
- SMFT-1000 - TL1000/30M - Test Lead on Reel
| Model | SMFT-1000 |
|---|
Fluke SMFT-1000 Multifunction PV Tester & Performance Analyzer, I-V Curve Tracer
The Fluke SMFT-1000 multifunction PV tester with I-V curve tracing is designed for PV professionals that provide installation, commissioning and maintenance services to systems that operate at 1000 V DC or under, the SMFT-1000 provides a complete PV testing solution that conforms to IEC 62446-1 standards. The included IRR2-BT irradiance meter wirelessly connects to the SMFT-1000 to communicate data in real time, providing the most accurate I-V curve measurements possible. With Fluke's €œKeep the Leads " system, less time is wasted on set-up, and less user errors occur while testing PV systems.

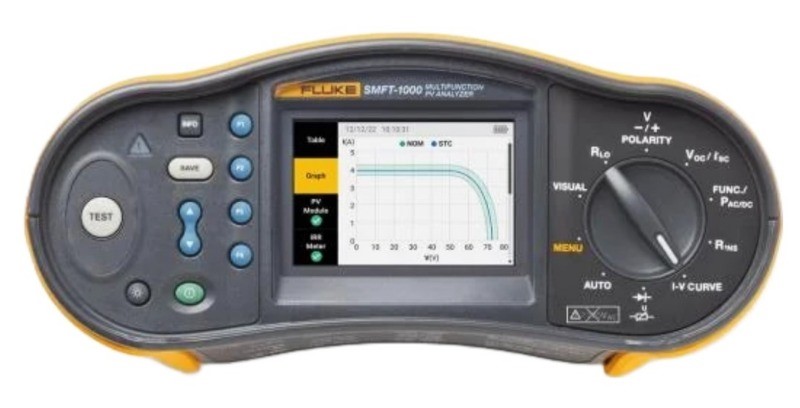

While taking an I-V curve reading in the field, the Fluke SMFT-1000 will display the curve as it loads in the test data, against the module specifications as defined by the manufacturer. This makes it easy to immediately confirm measurements without the use of a laptop or tablet. Run the I-V curve test on new installations to confirm they
are working according to the site specifications, or to test if existing modules or strings are working to their expected performance levels. To meet PV system IEC regulations for visual inspections, the SMFT-1000 features a convenient setting in which to record observations directly to the memory.
Specifications for the Fluke SMFT-1000 Multifunction PV Tester & Performance Analyzer, I-V Curve Tracer Include:
| PV Voltage Range (Voc) | 5 V - 99.9 V / 100 V - 1000 V |
| PV Cur Range (Is/c) | 0-20 A |
| RLO Test Current | ‰¥ 200 mA ( ‰¤ 2Ω + Rcomp) |
| PV Accuracy (Voc) | ± (0.5 % + 2 Digit) |
