GW Instek

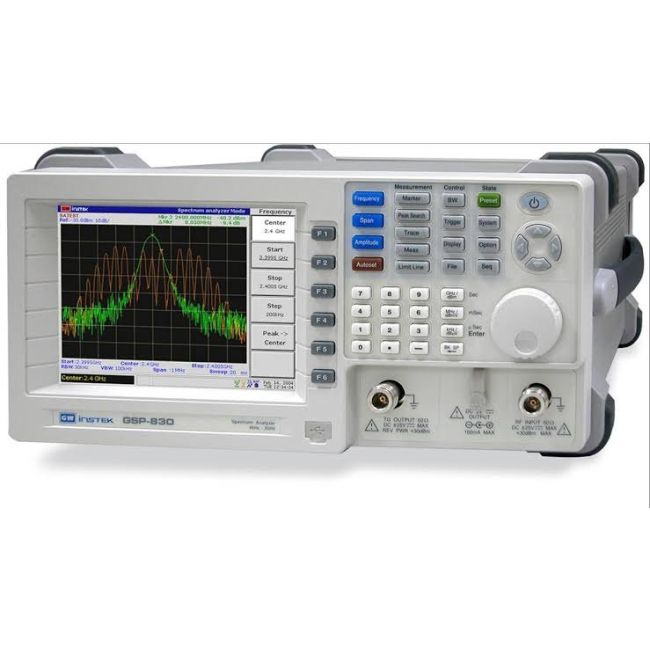

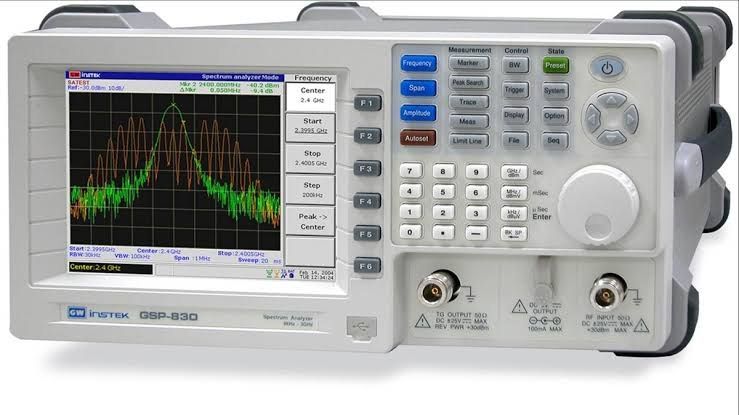

GW Instek GSP-830
3GHz - 3KHz 9KHz Spectrum Analyser
150 kHz – 3 GHz Gamma di Frequenza
100 Hz – 1 MHz (in passi 1-3-10) Ampiezza di Risoluzione (RBW)
30 Hz – 1 MHz (in passi 1-3-10) Ampiezza del Filtro Video (VBW)
-135 dBm (tipico) a 1 GHz, RBW 1 kHz Livello di Rumore Medio Visualizzato (DANL)
70 dB Gamma Dinamica
| Attributo | Valore |
|---|---|
| Gamma di Frequenza | 150 kHz – 3 GHz |
| Ampiezza di Risoluzione (RBW) | 100 Hz – 1 MHz (in passi 1-3-10) |
| Ampiezza del Filtro Video (VBW) | 30 Hz – 1 MHz (in passi 1-3-10) |
| Livello di Rumore Medio Visualizzato (DANL) | -135 dBm (tipico) a 1 GHz, RBW 1 kHz |
| Gamma Dinamica | 70 dB |
| Impedenza di Ingresso | 50 Ω |
| Massimo Livello di Ingresso | +20 dBm (continuo) |
| Display | LCD a colori TFT da 6,5 pollici |
| Interfacce di Comunicazione | USB, RS-232 |
| Alimentazione | 100 – 240 V CA, 50/60 Hz |
GW Instek GSP-830 Options:
- GSP-830 - Opt. 01 - Tracking Generator (9kHz ~ 3GHz Frequency Range, -50dBm ~ 0dBm Amplitude Range)
- GSP-830 - Opt. 02 - Battery Pack (10.8V Li-Ion battery pack x 2)
- GSP-830 - Opt. 03 - 1ppm Stability (1ppm, 0 ~ 50°C, 1ppm/yr)
- GSP-830 - Opt. 04 - 300Hz RBW (RBW 300Hz, 3dB bandwidth)
- GSP-830 - Opt. 05 - 9kHz & 120kHz RBW (RBW selections: 9kHz and 120kHz, 6dB bandwidth)
- GSP-830 - Opt. 06 - 10kHz & 100kHz RBW (RBW selections: 10kHz and 100kHz, 3dB bandwidth)
- GSP-830 - Opt. 07 - AM/FM Demodulator & 10kHz & 100kHz RBW (Demodulation: AM, FM; Output: internal speaker, 3.5mm stereo jack)
- GSP-830 - Opt. 08 - GPIB Interface (IEEE 488 bus, fully programmable with IEEE 488.2 compliance)
- GSP-830 - GSC-001 - Soft Carrying Case
- GSP-830 - GRA-404 - Rack Adapter Panel (Rack Mounting 19", 4U, for GSP-827/830)
- GSP-830 - GTL-401 - DC Power Cord with DC Jack and Lighter Plug, Current 5A (for GSP-827/830)
- GSP-830 - GTL-301 - RF Cable, RG 223 N(P/M), 1000mm
- GSP-830 - ATA-001 - BNC Antenna
- GSP-830 - GAP-801 - Preamplifier (Preamplifier with 10dB typical, 9kHz ~ 6GHz)
- GSP-830 - ATA-002 - Near Field Probe (Wideband, 0.1~1000 MHz, Low Noise, 2.9dB Typical)
- GSP-830 - GKT-001 - General Kit Set (includes GSC-002 Kit box, ADP-002 adaptor SMA(J/F)~N(P/M) x2, ATN-100 10dB attenuator N(J/F)~N(P/M) x1, GTL-303 RF cable assembly SMA(P/M) RD316 600mm x2)
- GSP-830 - GKT-002 - CATV Kit Set (includes GSC-003 Kit box, ADP-001 adaptor BNC(J/F)~N(P/M) x2, ADP-101 adaptor BNC(J/F)75~BNC(P/M)50 x2, GTL-304 RF cable assembly RG223 N(P/M)-N(J/F) 300mm x2)
- GSP-830 - GKT-003 - RLB Kit Set (includes GSC-004 Kit box, GAK-001 termination 50Ω N(P/M) x1, GAK-002 Cap with chain N(P/M) x1, GTL-302 RF cable assembly RG223 N(P/M) 300mm x2)
- GSP-830 - GKT-006 - EMI Probe Kit Set (includes ANT-02 3cm Loop H-Field Probe, ANT-01 6cm Loop H-Field Probe, ANT-03 6mm Stub tip E-Field Probe, PR-03 Touch Passive Probe, ADP-02 N(P/M)~SMA(J/F) Adapter, ADP-01 N(P/M)~BNC(J/F) Adapter, BNC(P/M)~BNC(P/M) RF Cable, SMA(P/M)~SMA(P/M) RF Cable)
| Model | GSP-830 |
|---|
The GW Instek GSP-830 is a 3.00 GHz - 3 KHz , 9.00 KHz Spectrum Analyser
