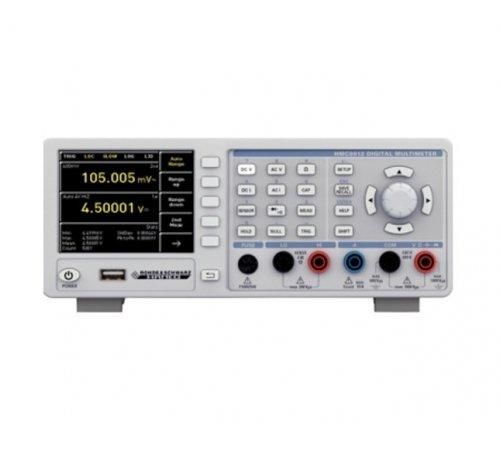

Hameg HMC8012 Digital Multimeter
5,5 cifre (fino a 1.200.000 conteggi) Numero di cifre del display
100 mV – 1000 V, precisione base ±0,015% Tensione DC
100 mV – 750 V (TRMS), frequenza 10 Hz – 100 kHz Tensione AC
100 µA – 10 A, precisione base ±0,05% Corrente DC
100 µA – 10 A (TRMS), frequenza 10 Hz – 10 kHz Corrente AC
| Attributo | Valore |
|---|---|
| Numero di cifre del display | 5,5 cifre (fino a 1.200.000 conteggi) |
| Tensione DC | 100 mV – 1000 V, precisione base ±0,015% |
| Tensione AC | 100 mV – 750 V (TRMS), frequenza 10 Hz – 100 kHz |
| Corrente DC | 100 µA – 10 A, precisione base ±0,05% |
| Corrente AC | 100 µA – 10 A (TRMS), frequenza 10 Hz – 10 kHz |
| Resistenza | 100 Ω – 100 MΩ, precisione base ±0,03% |
| Misura della capacità | 1 nF – 10 mF |
| Interfacce di comunicazione | USB (HID e TMC), LAN (LXI Core), RS-232 |
| Velocità di misurazione | Fino a 500 misurazioni al secondo |
| Display | Display grafico a colori TFT da 4,3 pollici (480 × 272 pixel) |
Hameg HMC8012 Digital Multimeter Options:
- HMC8012 - IEEE-488/GPIB - Optional IEEE-488 (GPIB) interface
- HMC8012 - HZ812 - PT100 Temperature probe 2-wire
- HMC8012 - HZ887 - PT100 Temperature probe 4-wire
- HMC8012 - HZC95 - 19" rackmount kit 2RU for HMC series
| Model | HMC8012 |
|---|
The Hameg HMC8012 Digital Multimeter consists of three measurement functions displayed simultaneously and a 5 3/4 digit display.
Provides quick and easy measurement, high accuracy and resolution, long-term data logging capability and is a highly valuable multimeter for service and repair centres, training centres and schools and universities.
Key Features
- Simultaneous display of 3 measurements
- Up to 200 measurements per second
- 12 measurements functions:
- DCV, DCI, true RMS, ACV and ACI, frequency, 2- and 4-wire resistance, capacitance, continuity, diode test, temperature, power
- Mathematic functions:
- Limit testing, minimum/maximum, average, offset, DC power, dB, dBm
- Data logging in .CSV-format to internal memory or USB-stick
- Interfaces: USB-TMC and Ethernet (LXI in preparation), optional IEEE-488 (GPIB
