Hughes Electro Dynamics 8010H02
TWT Amplifier, 4 to 8 GHz, 10W
Hughes Electro Dynamics 8010H02 Options:
- 8010H02 - A - 198 to 264 VAC Input Voltage
- 8010H02 - E - Rackmount (standard EIA 19-inch cabinet)
- 8010H02 - F - Remote-Control Interface (Relay Contact)
- 8010H02 - G - 400 Hz (380 to 420 Hz AC frequency operation)
- 8010H02 - H - Remote-Control Interface (TTL)
- 8010H02 - I - 28 Vdc Input Voltage
- 8010H02 - J - Output Isolator/Circulator
- 8010H02 - K - High Gain (solid-state preamplifier at input)
- 8010H02 - M - 48 Vdc Input Voltage
- 8010H02 - N - Variable Input Attenuator (0 to 20 dB continuous adjustment)
- 8010H02 - P - Remote-Control Interface (IEEE-488 Data Bus)
- 8010H02 - Q - Input Isolator
- 8010H02 - R - RF Signal Sample Port
- 8010H02 - S - Output Harmonic Filter (lowpass filter)
- 8010H02 - T - RF Metering (LED bar graph display of RF output power)
| Model | 8010H02 |
|---|
HUGHES 8010H02

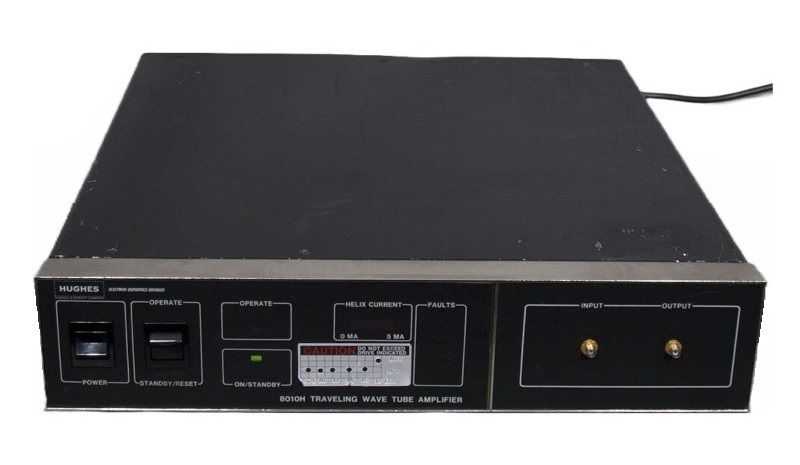

The Hughes 8010H02 / 8010H02F000 is a TWT Amplifier that has the following features and specifications:
- Power output: up to 10W
- Frequency Range: 4.0 - 8.0 GHz
- 30dB gain minimum
- 50 Ohm RF impedance
- N(f) connectors input/output
- 99-132 Vac; 47-63 Hz operation
