Hughes Electro Dynamics 8010H15F000
TWT Amplifier, 8 - 18 GHz, 10W
Hughes Electro Dynamics 8010H15F000 Options:
- 8010H15F000 - A - 198 to 264 VAC Input Voltage
- 8010H15F000 - E - Rackmount (standard EIA 19-inch cabinet)
- 8010H15F000 - F - Remote-Control Interface (Relay Contact)
- 8010H15F000 - G - 400 Hz (380 to 420 Hz AC frequency operation)
- 8010H15F000 - H - Remote-Control Interface (TTL)
- 8010H15F000 - I - 28 Vdc Input Voltage
- 8010H15F000 - J - Output Isolator/Circulator
- 8010H15F000 - K - High Gain (solid-state preamplifier at input)
- 8010H15F000 - M - 48 Vdc Input Voltage
- 8010H15F000 - N - Variable Input Attenuator (0 to 20 dB continuous adjustment)
- 8010H15F000 - P - Remote-Control Interface (IEEE-488 Data Bus)
- 8010H15F000 - Q - Input Isolator
- 8010H15F000 - R - RF Signal Sample Port
- 8010H15F000 - S - Output Harmonic Filter (lowpass filter after TWT output)
- 8010H15F000 - T - RF Metering (LED bar graph display of RF output power)
| Model | 8010H15F000 |
|---|

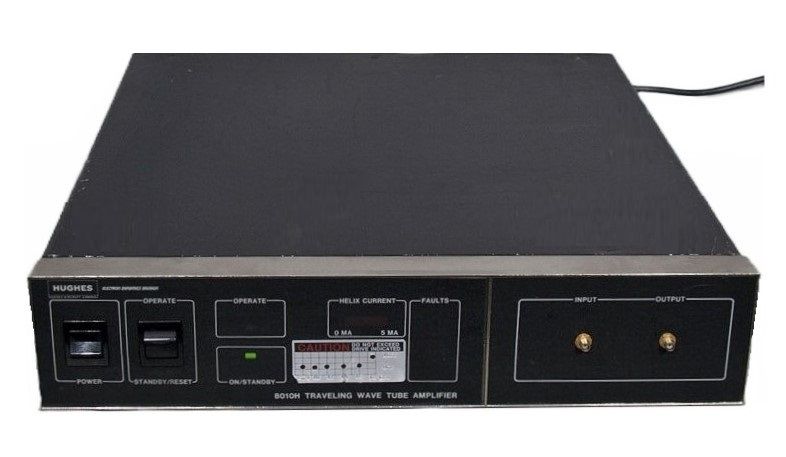

Hughes 8010H15F000 TWT Amplifier
The 8010H15F000 is a self-contained traveling-wave tube amplifier designed for general purpose microwave applications.
Features and Specifications
- Power output: 10 W
- Frequency Range: 8.0 to 18.0 GHz
- 30 dB gain
- RF Impedance €“ 50 Ohms
- SMA(f) connectors input/output
- 99-132 Vac; 47-63 Hz operation
- Input/output Connectors: SMA
