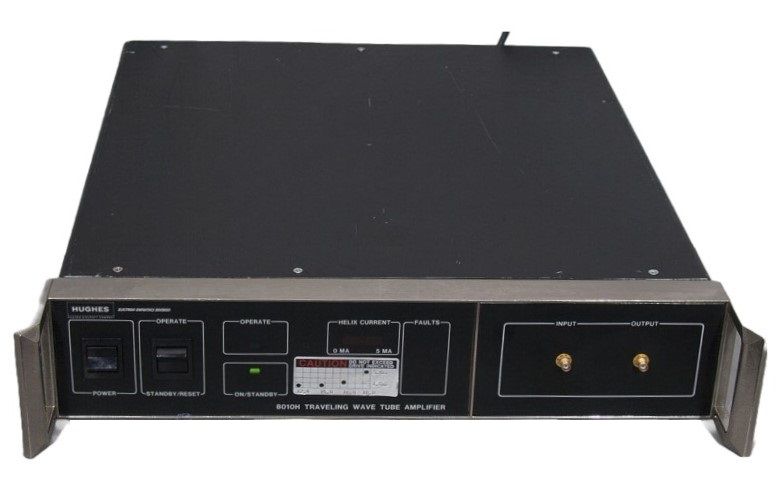

HUGHES 8010H18R TWT AMPLIFIER
The Hughes 8000 Series of Standard Band Traveling Wave Tube Amplifiers cover the 1 to 40 GHz frequency range with a minimum power output of 10 or 20 watts CW. The 8010H18R TWT amplifier consists of a PPM metal-ceramic traveling-wave tube, a regulated solid state power supply and complete air cooling system assembled within a compact instrument case. The 8010H18R is light-weight and compact, which makes it ideal for either bench or 19-inch rack mounting. The size-weight feature is the result of the unique circuit design. The 8010H18R Amplifier has a wide variety of uses. Appliations include EMI testing, antenna testing, communications, component testing, system testing and general laboratory requirements.
Specifications of the Hughes 80210H18R TWT Amplifier include:
- Frequency 26.5 GHz to 40 GHz
- Power: ‰¥10W from 26.5 GHz to 32 GHz and ‰¥7W up to 40 GHz
- Connectors: WR-28
- Input Power: 220VAC
