Hughes Electro Dynamics

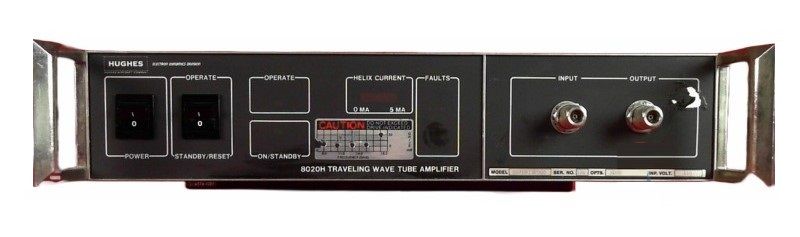

Hughes Electro Dynamics 8020H15F000
TWT Amplifier, 8 - 18 GHz, 20W
Hughes Electro Dynamics 8020H15F000 Options:
- 8020H15F000 - A - 198 to 264 VAC Input Voltage
- 8020H15F000 - E - Rackmount (standard EIA 19-inch cabinet)
- 8020H15F000 - F - Remote-Control Interface (Relay Contact)
- 8020H15F000 - G - 400 Hz (380 to 420 Hz AC frequency operation)
- 8020H15F000 - H - Remote-Control Interface (TTL)
- 8020H15F000 - I - 28 Vdc Input Voltage
- 8020H15F000 - J - Output Isolator/Circulator
- 8020H15F000 - K - High Gain (solid-state preamplifier at input)
- 8020H15F000 - M - 48 Vdc Input Voltage
- 8020H15F000 - N - Variable Input Attenuator (0 to 20 dB continuous adjustment)
- 8020H15F000 - P - Remote-Control Interface (IEEE-488 Data Bus)
- 8020H15F000 - Q - Input Isolator
- 8020H15F000 - R - RF Signal Sample Port
- 8020H15F000 - S - Output Harmonic Filter (lowpass filter)
- 8020H15F000 - T - RF Metering (LED bar graph display of RF output power)
| Model | 8020H15F000 |
|---|
Hughes 8020H15F000
The Hughes 8000H Series Instrumentation Traveling Wave Tube Amplifiers are specifically designed for general purpose system and component testing and laboratory experimentation and measurement. Customized units can be provided for communications and other specialized applications.
Features and Specifications
- 8-18 GHz
- 20W
- Opts: J/P/S
- High -Efficiency Switching Regulator and Converter
- Lightweight and Compact
- Protective Features
- Automatic Recycle
- LED fault Indicators
