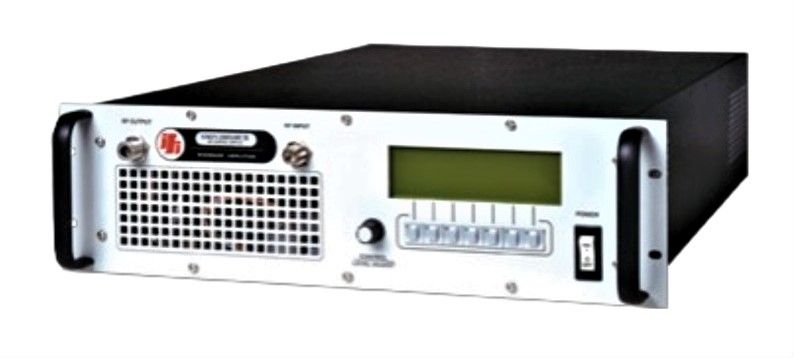

IFI Instruments T2618-40
| Attributo | Valore |
|---|---|
| Gamma di Frequenza | 2 GHz - 18 GHz |
| Potenza di Uscita Massima | 40 W |
| Guadagno Tipico | 40 dB |
| Tensione di Alimentazione | 220-240 V CA, 50/60 Hz |
| Impedenza di Ingresso/Uscita | 50 Ohm |
| Connettore di Ingresso | SMA (F) |
| Connettore di Uscita | SMA (F) |
| Potenza di Ingresso Massima | 0 dBm |
| Figura di Rumore Tipica | 8 dB |
| Dimensioni (L x P x A) | 483 mm x 508 mm x 88 mm |
IFI Instruments T2618-40 Options:
- T2618-40 - Option 103 G/D - VSWR Reflected Power Protection "Graceful Degradation Feature" which will automatically reduce the input drive and fold back the output power when the average reflected power exceeds a preset limit of 3.0:1
- T2618-40 - Option 110-1E - GPIB IEEE-488 RS232 and Ethernet Remote Control
- T2618-40 - Option 110-2 - GPIB IEEE-488 and RS 422 Remote Control
- T2618-40 - Option 110-3 - GPIB IEEE-488 and RS 485 Remote Control
- T2618-40 - Option 113 - Chassis Slides for 19" Rack Mounting
- T2618-40 - Option 118F or R - Front Panel RF Connections / 118R for Rear Panel RF Connections
- T2618-40 - Option 123F or R - Reflected RF Sample Port -40, -50 or -60dB N or SMA, Front or Rear Panel
| Model | T2618-40 |
|---|
INSTRUMENTS FOR INDUSTRY T2618-40 Microwave Amplifier
Instruments for Industry, T2618 Series Amplifiers provide outstanding RF performance. These amplifiers are €œState of the Art "; have field proven reliability and unsurpassed performance as the best in the industry. Operation safety and ease of use are paramount in IFI product designs. The IFI T2618 Series include a full complement of RF and hardware protection systems including high VSWR, over-cur and voltage protection as well as redundant thermal and airflow sensors to prevent the TWT from overheating.
In addition, the T2618 series includes a state-of-the-art interface that is sophisticated, comprehensive, but yet simple to use. Our amplifiers feature modular construction and this concept of modular design minimizes internally produced EMI signal leakage and provides easy access for field service and rapid turnaround at depot level repair facilities. For computer automation both an RS-232 and IEEE-488 interface are included. To meet individual application needs, the T2618 Series amplifiers can be easily customized with harmonic filters or other options. With this capability and its reliable elegant design, the T2618 series amplifiers are the perfect amplifier for your microwave needs.
Specifications for the INSTRUMENTS FOR INDUSTRY T2618-40 Microwave Amplifier Include:
| Frequency | 18 - 26.5 GHz |
| Rated Output Power | 40W |
| Gain | 46 dB min |
