IFI Instruments T62-500
| Attributo | Valore |
|---|---|
| Potenza di uscita | 500 W |
| Intervallo di frequenza | DC - 1000 MHz |
| Guadagno minimo | 50 dB |
| Tensione di alimentazione | 220 - 240 V AC |
| Impedenza di ingresso/uscita | 50 Ohm |
| Potenza di ingresso massima | 100 mW |
| Connettori | Type N femmina |
| Raffreddamento | Raffreddamento forzato ad aria |
| Temperatura operativa | 0°C - 50°C |
| Dimensioni (L x A x P) | 482 x 133 x 508 mm |
IFI Instruments T62-500 Options:
- T62-500 - Option 103 G/D - VSWR Reflected Power Protection "Graceful Degradation Feature" which will automatically reduce the input drive and fold back the output power when the average reflected power exceeds a preset limit of 3.0:1
- T62-500 - Option 110-1E - GPIB IEEE-488 RS232 and Ethernet Remote Control
- T62-500 - Option 110-2 - GPIB IEEE-488 and RS 422 Remote Control
- T62-500 - Option 110-3 - GPIB IEEE-488 and RS 485 Remote Control
- T62-500 - Option 113 - Chassis Slides for 19" Rack Mounting
- T62-500 - Option 118F or R - Front Panel RF Connections / 118R for Rear Panel RF Connections
- T62-500 - Option 123F or R - Reflected RF Sample Port -40, -50 or -60dB N or SMA, Front or Rear Panel
- T62-500 - Option 129E - External Harmonic Filtering
- T62-500 - Option 129S - Internal Switchable Harmonic Filtering
| Model | T62-500 |
|---|
IFI T62-500

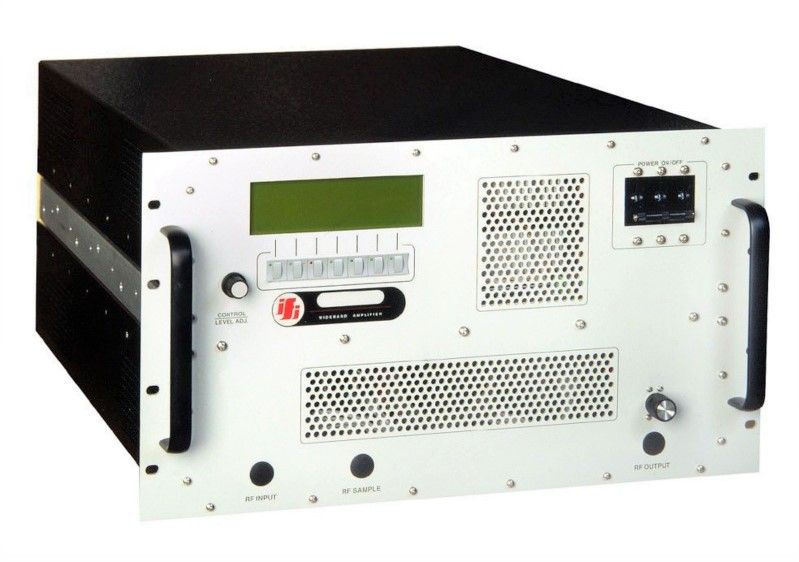

IFI Instruments T62-500 TWT Amplifier, 2 - 6 GHz, 500W
The IFI T62-500 RF Microwave TWT (traveling Wave Tube) Amplifier provides outstanding RF performance. The IFI T62-500 Amplifier incorporate the latest features with respect to control and monitoring. The amplifier is a field proven and reliable amplifier, that offers unsurpassed performance as the best in the industry.
The IFI T62-500 features operational safety and is easy to use. It includes a full complement of RF and hardware protection systems, including high VSWR, over-cur and voltage protection as well as redundant thermal and airflow sensors to prevent the TWT amplifier from overheating. In addition, the T62-500 TWT amplifier includes a modern interface thatis intuitive and simple to use. The modular construction and design minimizes internally produced EMI signal leakage and provides easy access for field service and rapid turnaround at depot level repair facilities.
The backlit LCD screen shows forward/reverse power indication, system status and self-diagnostic information. All the high power TWT amplifier operating parameters are simultaneously available in the amplifier front panel display as well as over the remote bus. Selection switches allow you to switch the amplifier to the desired mode of operation for local control if the unit is not being operated remotely.
For computer automation both an RS-232 and IEEE-488 interface are included.
Features of the IFI T62-500 TWT Amplifier include:
- VSWR Reflected Power Protection, the unit operates without damage or oscillation into any magnitude of phase or load impedance, Open and Short Circuit Protection.
- * Alternate Prime Power (specify at time of order)
- GPIB IEEE 488 & RS232 Remote Control
- RF Sample Port on the Front Panel, 112R for rear panel
- Internal Pre-amplification to obtain rated output power with an input level of 0 dBm or less.
- RF Input/Output Connectors on the Front Panel, 118R for rear panel
- Internal Systems Diagnostics & Status Indicators
- Filament/Beam Elapsed Time Metering in hours
- RF Safety Interlock
- Forward/Reflected Power Indication simultaneously on Front Panel display
Specifications of the T62-500 include:
- Frequency Range: 2 to 6 GHz
- Rated Power: 500 watts (min)
- P1dB Power: 250 watts (min)
- Gain: 57dB (min)
- Input /Output Impedance: 50 ohms
- RF Input / Sample Connectors: Type N Female
- RF Output Connector: Type N Female
- Input VSWR: 2.0:1
- Output VSWR: 2.5:1
- Operating Temp: 0 º to 50 º C
- Non-operating Temp: -40 º to 70 º C (50,000 feet max)
- Humidity: 95% without condensation
- Altitude: 10,000 feet
- Cooling System: Air cooled, self contained
- Modulation: All types, AM, FM, Pulse
- Spurious Outputs:
