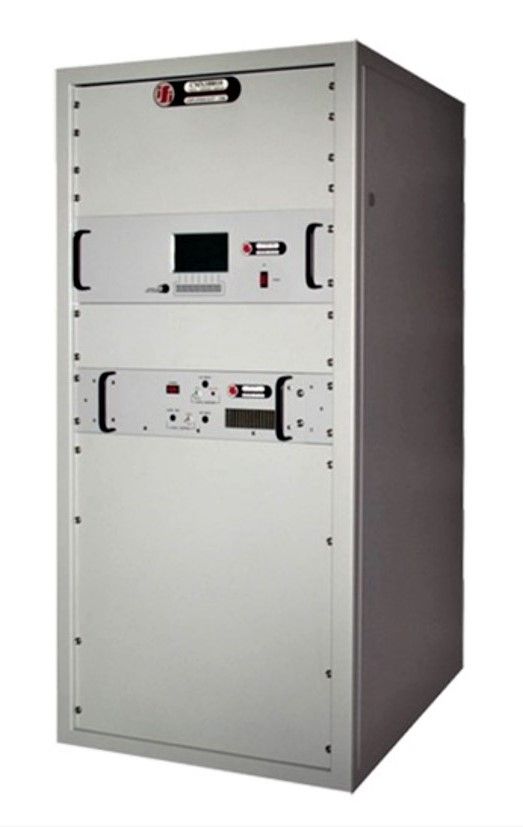

IFI Instruments TCCX2500
| Attributo | Valore |
|---|---|
| Potenza massima di uscita | 2500 Watt |
| Intervallo di frequenza | 10 kHz - 1000 MHz |
| Tensione di alimentazione | 208-240 V CA, trifase |
| Guadagno | 55 dB (tipico) |
| Impedenza di ingresso/uscita | 50 Ohm |
| Potenza di ingresso massima | 100 mW (20 dBm) |
| Connettori | Tipo N (ingresso e uscita) |
| Raffreddamento | Raffreddamento forzato ad aria |
| Dimensioni (L x A x P) | 483 mm x 222 mm x 559 mm (4U rack) |
| Peso | Circa 45 kg |
IFI Instruments TCCX2500 Options:
- TCCX2500 - 110-1E - GPIB IEEE-488 RS232 and Ethernet Remote Control
- TCCX2500 - 110-2 - GPIB IEEE-488 and RS 422 Remote Control
- TCCX2500 - 110-3 - GPIB IEEE-488 and RS 485 Remote Control
- TCCX2500 - 118A - RF Input On Front Output On Rear
- TCCX2500 - 118B - RF Input On Rear Output On Front
| Model | TCCX2500 |
|---|
IFI INSTRUMENTS TCCX2500 RF Amplifier
Instruments for Industry, TCCX2500 Amplifiers provide outstanding RF performance. These amplifiers have field proven reliability and unsurpassed performance as best of the breed. They were specifically designed for laboratory testing applications into the worst mismatch conditions. IFI Tetrode Tube amplifiers are very conservatively designed to operate below maximum ratings for ruggedness and long term reliability. The Amplifier system integrates a Solid State Power supply to provide reliable brute-power performance at frequencies up to 200 MHz.
The IFI TCCX2500 power amplifiers feature modular heavy duty construction. This concept of modular design minimizes internally produced EMI signal leakage and provides easy access for field service and rapid turnaround at depot level repair facilities. From the ground up, the TCCX2500 RF amplifiers are structurally engineered to withstand operation into complete mismatch conditions without folding back. A product and design built to last!
Specifications for the IFI INSTRUMENTS TCCX2500 RF Amplifier Include:
| Frequency | 10KHz €“200 MHz |
| Rated Output Power | 2500W |
| Gain | 64 dB min |
| Mains power | 20 kVA |
