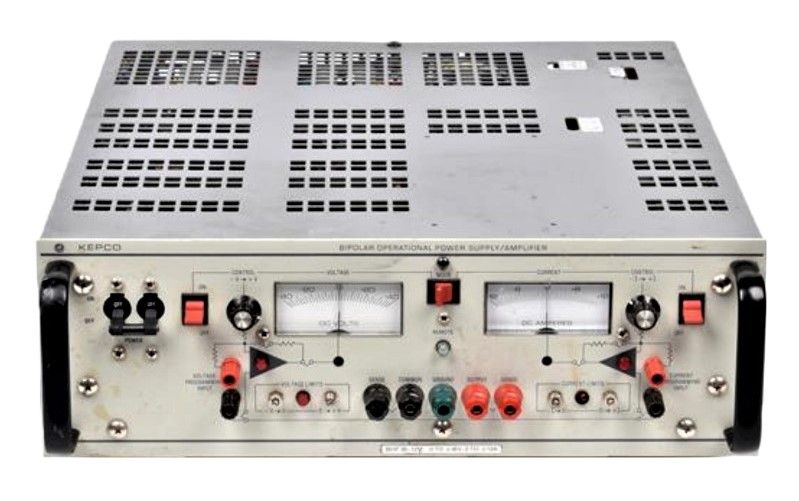

Kepco BOP36-12M
| Attributo | Valore |
|---|---|
| Tensione di Uscita | ±36 V |
| Corrente di Uscita | ±12 A |
| Potenza di Uscita | 432 W |
| Modalità Operativa | Alimentatore a due quadranti (tensione e corrente bidirezionali) |
| Interfaccia di Programmazione | GPIB (IEEE-488), RS-232 |
| Tensione di Ingresso | 105–125 V / 210–250 V CA, 50/60 Hz |
| Regolazione della Tensione (Carico) | 0,01% della tensione massima di uscita |
| Regolazione della Corrente (Carico) | 0,01% della corrente massima di uscita |
| Dimensioni (L x A x P) | 483 mm x 133 mm x 597 mm (3U rack) |
| Peso | Circa 22 kg |
Kepco BOP36-12M Options:
- BOP36-12M - D - Digital Meter (substitute suffix letter "D" for suffix letter "M" when ordering, e.g. BOP36-12D)
- BOP36-12M - L - Optimized for Inductive Loads (e.g. BOP36-12ML)
- BOP36-12M - C - Optimized for Capacitive Loads (e.g. BOP36-12MC)
- BOP36-12M - -4886 - GPIB (IEEE 488-2) and RS 232 Digital Control (e.g. BOP36-12M-4886)
| Model | BOP36-12M |
|---|
The Kepco BOP36-12M, while a fully rated power supply (36V, 12A), is also a high-powered operational amplifier with full 4-quadrant, bipolar operation. The output is capable of both sustained DC and the replication of arbitrary AC waveforms.
The voltage and cur outputs can be controlled smoothly and linearly through the entire rated plus and minus ranges, passing smoothly through zero with no polarity switching.
The BOP36-12M is a high speed power operational amplifier that can be used to provide dynamically agile voltage for test and simulation. It is not a general purpose power supply. By the nature of the bipolar high speed design, it does not have any energy storage noise discriminating output capacitors. To realize the full high speed potential of the BOP36-12M, the load characteristics should be mainly resistive. If the load is capacitive, (>0.1 microfarad), the BOP36-12M must be slowed to avoid oscillation. This is accomplished in voltage mode by increasing the value of the feedback capacitance. Special terminals on the user port are available to slow the BOP for optimum current-mode stability into inductive loading.
Features of the Kepco BOP36-12M include:
- Source and sink 100% of their cur rating.
- Separate control circuits for voltage and cur with automatic crossover to cur and voltage limits.
- All controls and flag signals accessible through a 50-terminal userport at the rear.
- Zeroable preamplifier available for scaling and summing external signals.
