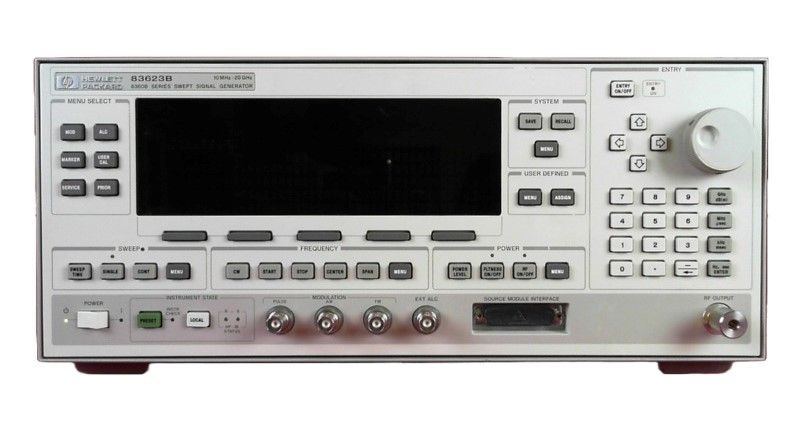

Keysight (Agilent) 83623B
Signal Generator 10 MHz - 20 GHz
10 MHz a 20 GHz Gamma di frequenza
1 kHz Risoluzione di frequenza
GPIB Interfacce
425 × 178 × 648 mm Dimensioni (L × A × P)
27 kg Peso
| Attributo | Valore |
|---|---|
| Gamma di frequenza | 10 MHz a 20 GHz |
| Risoluzione di frequenza | 1 kHz |
| Interfacce | GPIB |
| Dimensioni (L × A × P) | 425 × 178 × 648 mm |
| Peso | 27 kg |
| Potenza di uscita | -20 dBm a +17 dBm |
| Rumore di fase SSB | -80 dBc/Hz a 10 GHz, 10 kHz offset |
| Modulazione | AM, FM, impulso |
| Precisione di livello | ±0,7 dB a 2 a 20 GHz, > -10 dBm (spec.) |
| Spurie non armoniche | -60 dBc a 20 GHz, -54 dBc a 40 GHz, -52 dBc a 50 GHz |
| Velocità di commutazione | 15 ms + 5 ms per GHz step (max.) |
| Larghezza di banda di modulazione | AM DC a 100 kHz; FM fino a 8 MHz frequenza, ±8 MHz agganciato, ±75 MHz non agganciato |
| Modalità sweep | sweep a passi, modalità lista, sweep a rampa, sweep di potenza (801 punti) |
| Invecchiamento base tempi | 10 MHz, 5 × 10⁻¹⁰ al giorno, 1 × 10⁻⁷ all’anno |
| Connettore uscita RF | 3,5 mm maschio pannello frontale |
Keysight (Agilent) 83623B Options:
- 83623B - 001 - Adds step attenuator; minimum settable output power –110 dBm; maximum leveled output power reduced by 1.5 dB to 20 GHz, 2 dB above 20 GHz, and 2.5 dB above 40 GHz
- 83623B - 002 - Adds internal modulation generator (8360B only); digitally synthesized modulation waveform source with sine, square, triangle, ramp, and noise waveforms
- 83623B - 004 - Rear panel RF output; moves RF output, external ALC input, pulse input/output, AM input, and FM input connectors to the rear panel
- 83623B - 006 - Fast pulse modulation; improves pulse rise/fall time to 10 ns; also improves harmonic performance
- 83623B - 008 - 1 Hz frequency resolution
- 83623B - 700 - MATE system compatibility; provides CIIL programming commands
- 83623B - 806 - Rack slide kit; used to rack mount the 8360 while permitting access to internal spaces
- 83623B - 908 - Rack flange kit; used to rack mount the 8360 without front handles
- 83623B - 910 - Extra operating and service manuals; provides a second copy of Operating and Service manuals
- 83623B - 913 - Rack flange kit; used to rack mount the 8360 with front handles
- 83623B - H31 - Special option; modifies the main product to limit frequency output to 31 GHz
RENT AGILENT / HP 83623B Signal Generator (call for availability)
The Agilent / HP 83623B high power synthesized sweeper Signal Generator is the standard of excellence for applications requiring the high performance and accuracy of a synthesized source and the speed and versatility of a sweep oscillator. It also delivers excellent harmonic performance with harmonics at least 25 dB below the carrier from 2.0 to 20 GHz. Synthesized broadband frequency coverage and precise 1 Hz frequency resolution (Opt 008) are generated by indirect synthesis, enabling the Agilent / HP 83623B Signal Generator to achieve low single-sideband phase noise performance.
Features and Specifications of the Agilent / HP 83623B Signal Generator include:
- +17 dBm to -110 dBm (Option 001) calibrated output power
- 50 dBc harmonics
- SSB phase noise
- Complete analog sweeper
- 1 Hz frequency resolution (Option 008)
- A & B Series have AM, FM and pulse modulation
- 1 kHz resolution, 1 Hz optional
- Low harmonics
- HP-IB
Opzioni e configurazioni
- Risoluzione di frequenza: 1 kHz (1 Hz con Opz. 008)
- Potenza di uscita: -20 dBm (-110 dBm con Opz. 001) a +17 dBm
- Modulazione: AM, FM, impulso (on/off 80 dB, 25 ns rise/fall; 10 ns con Opz. 006)
- Connettore uscita RF: 3,5 mm maschio pannello frontale (pannello posteriore con Opz. 004)
