Keysight (Agilent)

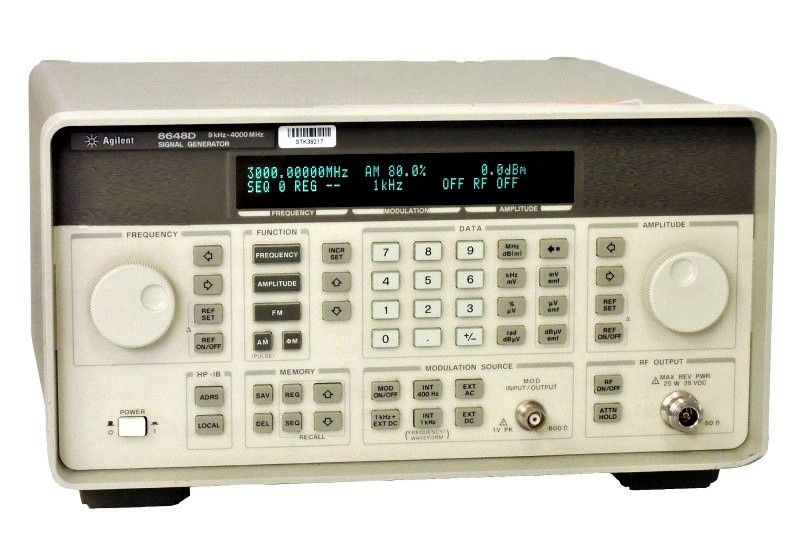

Keysight (Agilent) 8648D
Signal Generator, 9 kHz - 4 GHz
9 kHz a 4 GHz Gamma di frequenza
AM, FM, ΦM, impulso Modulazione
0,001 Hz Risoluzione di frequenza
< -30 dBc a ≤ +4 dBm Armoniche
< -48 dBc, ≥ 5 kHz offset Spurie non armoniche
| Attributo | Valore |
|---|---|
| Gamma di frequenza | 9 kHz a 4 GHz |
| Modulazione | AM, FM, ΦM, impulso |
| Risoluzione di frequenza | 0,001 Hz |
| Armoniche | < -30 dBc a ≤ +4 dBm |
| Spurie non armoniche | < -48 dBc, ≥ 5 kHz offset |
| Potenza di uscita | -136 a +13 dBm (≤ 2,5 GHz), -136 a +10 dBm (> 2,5 GHz) |
| Rumore di fase SSB | < -116 dBc/Hz a 1 GHz, 20 kHz offset (tip.) |
| Precisione di livello | ±1,0 dB (< 2,5 GHz), ±1,5 dB (2,5 a 3,2 GHz), ±2,0 dB (3,2 a 4 GHz) |
| Larghezza di banda di modulazione | FM DC a 150 kHz (tip.) |
| Invecchiamento base tempi | < ±2 ppm all’anno |
| Interfacce | GPIB |
| Dimensioni (L × A × P) | 330 × 165 × 368 mm |
| Peso | 8,5 kg |
Keysight (Agilent) 8648D Options:
- 8648D - 1EA - High output power
- 8648D - 1E2 - Modulation generator
- 8648D - 1E5 - High stability time base
- 8648D - 1E6 - Pulse modulation
- 8648D - UK6 - Commercial calibration certificate with test data
- 8648D - AB0 - Chinese localization Taiwan
- 8648D - AB1 - Korean localization
- 8648D - AB2 - Chinese localization - China
- 8648D - ABD - German localization
- 8648D - ABE - Spanish localization
- 8648D - ABF - French localization
- 8648D - ABJ - Japanese localization
- 8648D - 0B0 - Delete manuals
- 8648D - 1CM - Rack mount kit
RENT AGILENT / HP 8648D Generator (call for availability)
The Agilent / HP 8648D Synthesized RF Signal Generator is ideal for the engineer looking for that higher frequency range at an economical price. Designed for semi-automated receiver test, and a variety of general purpose applications, the Agilent / HP 8648D starts with the basic capabilities of the Agilent / HP 8647A, enhances residual FM, level accuracy and phase noise performance, offers optional pulse modulation and high power, and extends the frequency to 4.0 GHz. While economical, the Agilent / HP 8648D Generator is built to stringent quality standards, promoting reliability and measurement repeatability.
Features and Specifications of the Agilent / HP 8648D Generator include:
- Economical 4.0 GHz synthesized signal generator
- Superior level accuracy
- Wide frequency and output power coverage
- Optional pulse modulation and high power
- Remote and memory interfaces for semi-automated testing
- Simple, dependable operation
- Small Footprint Saves Bench Space
Opzioni e configurazioni
- Modulazione: AM, FM, ΦM, impulso (Opz. 1E6)
- Invecchiamento base tempi: < ±2 ppm all’anno (< ±0,1 ppm all’anno con Opz. 1E5)
