Produttore | Keysight (Agilent) |
Modello | B2911B |
Prodotto | Precision Source/Measure Unit, 1 Ch, 10 fA, 210 V, 3 A DC/10.5 A Pulse |
Tipo | Usato |

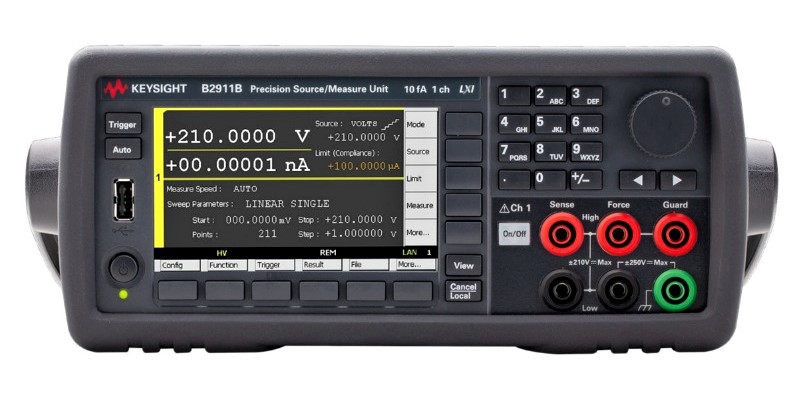

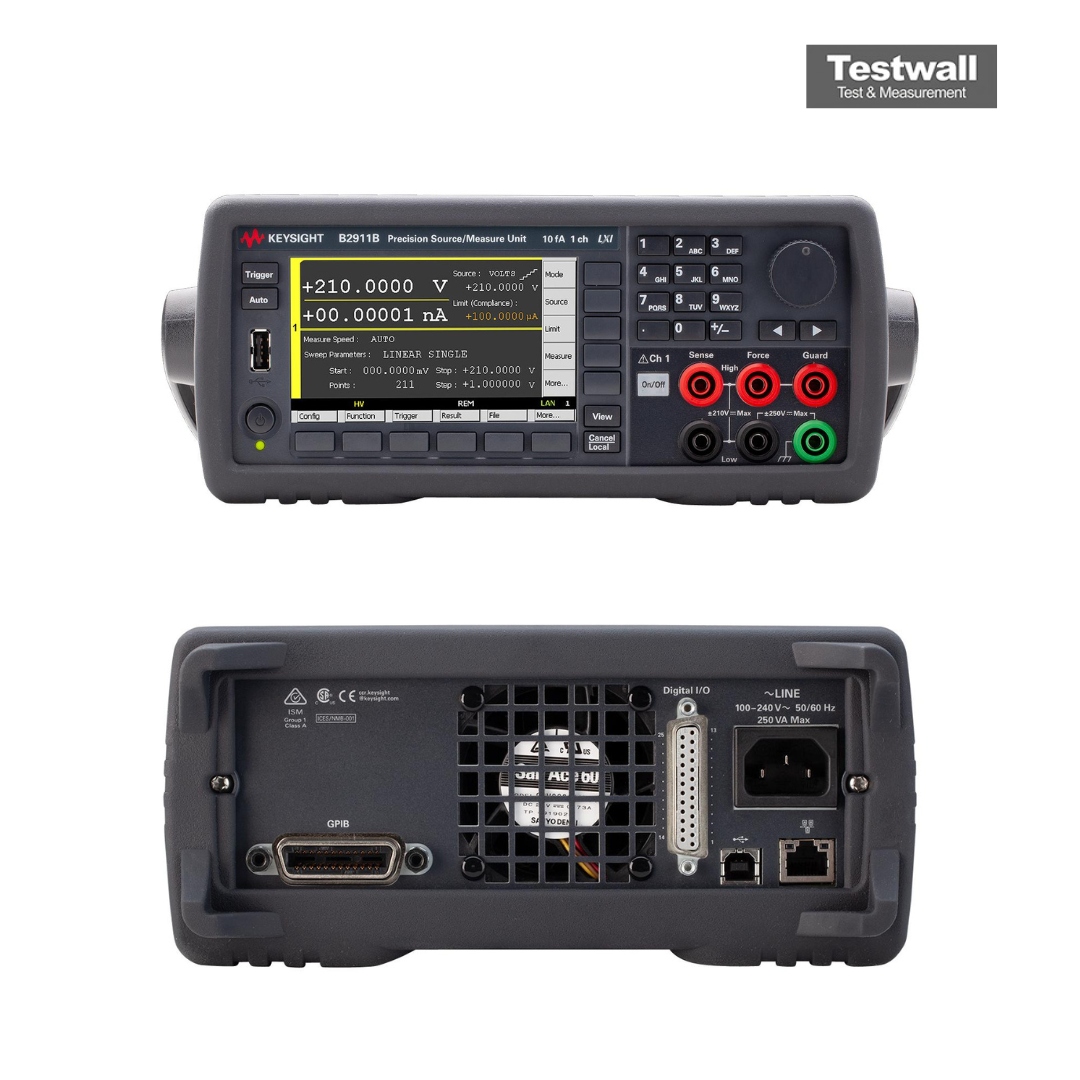

Keysight (Agilent) B2911B Precision Source/Measure Unit
The Keysight B2911B Precision Source/Measure Units are compact and cost-effective benchtop Source/Measure Units (SMUs) with the capability to source and measure both voltage and cur with high resolution and accuracy. With a precision minimum of 10 fA/100 nV sourcing and measuring resolution, it is able to make very low-level measurements. User-friendly front panel GUI and 4.3-inch color LCD display supports both graphical and numerical view modes, speeding up interactive test, characterization and debug operations. PC-based control software makes measurements remotely from a PC without the need to program.
The B2911B SMU offers superior measurement throughput and supports conventional SMU SCPI commands for easy test code migration. These features improve efficiency and lower the cost of ownership when integrating the SMUs into systems for production test. 10 microsecond digitizing capability which allows to capture low frequency phenomena in addition to DC characteristics. It can operate as a seamless 4-quadrant precision voltage/cur source, an electrical load, an accurate voltage/cur meter, a pulse generator and an AWG. Its versatile all-in-one integrated source and measurement capabilities allow it to perform a wide variety of measurements from DC to low frequency AC without the need to change connections or use additional equipment. The B2911B SMU has a broad application range that spans uses from R&D and education to industrial development, production test and automated manufacturing.
Specifications for the Keysight (Agilent) B2911B Precision Source/Measure Unit Include:
Number of channels | 1 |
Minimum source resolution | 10 fA /100 nV |
Minimum measurement resolution | 10 fA /100 nV |
Maximum output | 210V, 3.03A(DC) /10.5A(Pulse) |
