Keysight (Agilent)

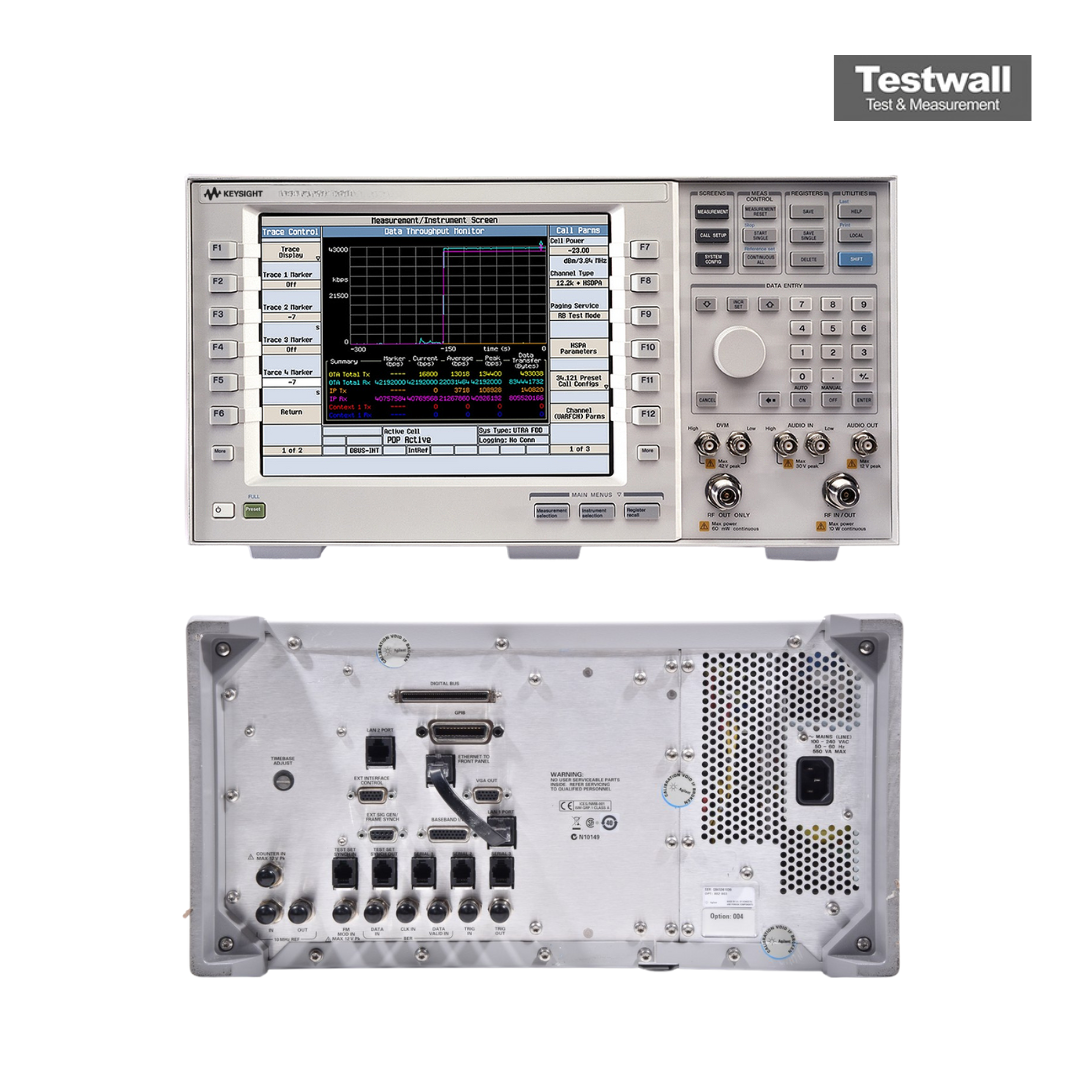

Keysight (Agilent) E5515C
8960 Series 10 Wireless Comms Test Set
300 kHz - 2,7 GHz Intervallo di frequenza
GSM, GPRS, EGPRS, WCDMA, HSDPA, cdma2000, 1xEV-DO Standard supportati
da -130 dBm a +13 dBm Potenza di uscita RF
±0,1 ppm Accuratezza della frequenza
50 Ohm Impedenza RF
| Attributo | Valore |
|---|---|
| Intervallo di frequenza | 300 kHz - 2,7 GHz |
| Standard supportati | GSM, GPRS, EGPRS, WCDMA, HSDPA, cdma2000, 1xEV-DO |
| Potenza di uscita RF | da -130 dBm a +13 dBm |
| Accuratezza della frequenza | ±0,1 ppm |
| Impedenza RF | 50 Ohm |
| Connettori RF | Tipo N femmina |
| Interfacce di controllo | GPIB, LAN (10Base-T/100Base-TX), RS-232 |
| Alimentazione | 100-240 V CA, 50/60 Hz |
| Dimensioni (L x A x P) | 426 mm x 221 mm x 635 mm |
| Peso | Circa 23 kg |
Keysight (Agilent) E5515C 8960 Series 10 Wireless Comms Test Set Options:
- E5515C - 002 - 2Nd Rf Source
- E5515C - 003 - Flexible Cdma Base Station Emulator
- E5515C - 004 - Digital Bus For Fading Test Solutions
- E5515C - 58C - Hw Upgrade Kit
- E5515C - 80C - Hw Upgrade Kit
- E5515C - 80E - Hw Upgrade Kit
- E5515C - E1962B - Cdma2000/Is-95/Amps Mobile Test Application
- E5515C - E1962B-401 - Cdma2000 Rel A New Control Channels
- E5515C - E1962B-402 - Advanced Amps Measurements
- E5515C - E1962B-403 - Cdma2000 Authentication
- E5515C - E1962B-405 - Cdma2000 Digital Bus (Fading)
- E5515C - E1962B-406 - Cdma2000 Multi-Unit Sync
- E5515C - E1962B-407 - Cdma2000 Protocol Logging
- E5515C - E1962B-409 - Cdma2000 Sms
- E5515C - E1962B-410 - Cdma2000 1X Advanced
- E5515C - E1963A - W-Cdma Mobile Test Application
- E5515C - E1963A-401 - W-Cdma End-To-End Video
- E5515C - E1963A-402 - W-Cdma Video Loopback
- E5515C - E1963A-403 - Hsdpa Test Modes
- E5515C - E1963A-405 - Hsdpa 14.4Mbps Test Mode
- E5515C - E1963A-408 - W-Cdma Enhanced Audio
- E5515C - E1963A-409 - W-Cdma Adv. Sms
- E5515C - E1963A-413 - Hsupa Test Modes
- E5515C - E1963A-423 - Hspa+ Test Mode
- E5515C - E1963A-433 - Dc-Hsdpa Test Modes
- E5515C - E1963A-435 - Hsdpa Mimo Test Modes
- E5515C - E1966A - 1Xev-Do Terminal Test Application
- E5515C - E1966A-102 - 1Xev-Do Rel A And B
- E5515C - E1966A-103 - 1Xev-Do Multicarrier
- E5515C - E1966A-104 - Rel B Optional Drc
- E5515C - E1966A-405 - 1Xev-Do Digital Bus (Fading)
- E5515C - E1966A-406 - 1Xev-Do Multi-Unit Synchronization
- E5515C - E1966A-407 - 1Xev-Do Protocol Logging
- E5515C - E1968A - Gsm/Gprs Mobile Test Application
- E5515C - E1968A-101 - Gsm Functionality
- E5515C - E1968A-102 - Gprs Functionality
- E5515C - E1968A-103 - Egprs Functionality
- E5515C - E1968A-104 - Evolved Edge Functionality
- E5515C - E1968A-201 - Gsm And Gprs Functionality
- E5515C - E1968A-202 - Gsm,Gprs And Egprs Functionality
- E5515C - E1968A-406 - Vamos
- E5515C - E1968A-408 - Gsm/Gprs Enhanced Audio
- E5515C - E1968A-409 - Gsm/Gprs Adv. Sms
- E5515C - E1968A-410 - Egprs Phase And Amplitude Vs Time
- E5515C - E1968A-411 - Iq Capture
- E5515C - E1968A-417 - 8Psk Distortion Calibration
- E5515C - E1968A-419 - Mobile Calculated Ber
- E5515C - E1968A-430 - Class 34
- E5515C - E1968A-431 - Class 45
- E5515C - E1969A - Td-Scdma_Gsm Fast Switch Test Application
- E5515C - E1969A-101 - Td-Scdma Non Signaling Test Mode
- E5515C - E1969A-201 - Td-Scdma Signaling Mode
- E5515C - E1969A-301 - Td-Scdma Fdt
- E5515C - E1969A-403 - Td-Hsdpa
- E5515C - E1969A-407 - Td-Scdma Prot Log
- E5515C - E1969A-408 - Td-Scdma Rtvocoder
- E5515C - E1969A-413 - Td-Hsupa
- E5515C - E1969A-501 - Inter-Rat With Td-Lte
- E5515C - E1969A-502 - Packet Data Service
- E5515C - E1969A-503 - Simultaneous Service
- E5515C - E1976A - 1Xev-Do Rel 0 Ftm Test Application
- E5515C - E1976A-102 - 1Xev-Do Rel A And B Ftm
- E5515C - E1987A - Fast Switching Test Application
- E5515C - E1991B - Mobile Test Application Suite
- E5515C - E1993A - 8960 Umts Test Application Suite
- E5515C - E1996A - Cdma2000/1Xev-Do Ta Suite
- E5515C - E1999A - E5515 Application Features
- E5515C - E1999A-202 - Fdt Enhanced
- E5515C - E1999A-206 - Single Channel Gps Source
- E5515C - E1999A-301 - Pesq Measurement
- E5515C - E1999A-501 - 2-Box Voice Handover
- E5515C - E6567F - Ta And La Wireless Test Manager Software - Cdma2000/Is-95/1Xev-Do
- E5515C - E6568F - Ta And La Wireless Test Manager Software - W-Cdma/Gsm/Gprs/Egprs
- E5515C - E6571F - Ta And La Wireless Test Manager Software - Run-Time License For All Formats
- E5515C - E6584A - Pc Software That Works With 8960 Lab Applications To Capture And Analyze Wireless Protocols
- E5515C - E6701I - Gsm/Gprs Lab Application
- E5515C - E6701I-010 - Lab Application Installation Set
- E5515C - E6701I-ABA - Us English Localization
- E5515C - E6701K - Gsm/Gprs/Egprs Fading
- E5515C - E6702E - Cdma2000 Lab Application
- E5515C - E6702E-010 - Lab Application Installation Set
- E5515C - E6702E-ABA - Us English Localization
- E5515C - E6702G - Cdma2000 Fading
- E5515C - E6703H - W-Cdma/Hspa Lab Application
- E5515C - E6703H-010 - Lab Application Installation Set
- E5515C - E6703H-ABA - Us English Localization
- E5515C - E6703J - W-Cdma Fading
- E5515C - E6704A - Egprs Lab Application
- E5515C - E6705A - Gsm/(E)Gprs Encryption
- E5515C - E6706E - 1Xev-Do Lab Application
- E5515C - E6706E-010 - Lab Application Installation Set
- E5515C - E6706E-ABA - Us English Localization
- E5515C - E6706G - 1Xev-Do Fading
- E5515C - E6708A - Enhanced Gan License
- E5515C - E6715A - W-Cdma/Hspa Encryption
- E5515C - E6716E - Cdma2000/1Xev-Do Lab Application Suite
- E5515C - E6716E-010 - Lab Application Installation Set
- E5515C - E6716E-ABA - Us English Localization
- E5515C - E6716G - Cdma2000/1Xev-Do La Suite
- E5515C - E6717F - Umts Lab Application Suite
- E5515C - E6717F-010 - Lab Application Installation Set
- E5515C - E6717F-ABA - Us English Localization
- E5515C - E6717H - Umts Lab Application Suite
- E5515C - E6719H - Lab Application Suite
- E5515C - E6719H-010 - Lab Application Installation Set
- E5515C - E6719H-ABA - Us English Localization
- E5515C - E6719J - Lab Application Suite
- E5515C - E6720A - Lab Application Annual Contract For The 8960
- E5515C - E6785H - Fast Switching Lab Application
- E5515C - E6785J - Lab Application Fast Switching
- E5515C - E6965A - Location Server Emulator Software
- E5515C - E6965A-1FP - Supl Server Emulator
- E5515C - E6965A-2FP - Lcs Positioning Server Emulator
- E5515C - F0201A - Fast Device Tune
- E5515C - R2C - Revision To Current
- E5515C - R45 - Hardware Revision 4.5
- E5515C - R48 - Hardware Revision 4.8
- E5515C - R50 - Hardware Revision 5.0
- E5515C - R51 - Hardware Revision 5.1
- E5515C - R55 - Hardware Revision 5.5
- E5515C - R58 - Hardware Revision 5.8
- E5515C - R70 - Hardware Revision 7.0
- E5515C - SS1 - Tripp-Lite Surge Suppresser 120V
- E5515C - SS2 - Tripp-Lite Surge Suppresser 220/240V
| Model | E5515C |
|---|
Il Keysight (Agilent) E5515C 8960 Series 10 supporta frequenze da 292 a 2700 MHz, un intervallo di uscita da -110 a -13 dBm e un VSWR <1.2:1. Garantisce una precisione di ±1,0 dB nella misura di potenza tra 400 e 2000 MHz, ideale per test completi sui dispositivi mobili.
Con applicazioni dedicate e automazione tramite Wireless Test Managers e Interactive Functional Test, l’E5515C ottimizza i test e riduce i costi per i produttori di dispositivi mobili.
Testwall può fornire il Keysight (Agilent) E5515C usato, completamente testato. Con supporto esperto e consegna globale, Testwall garantisce strumenti ad alte prestazioni e affidabilità. Contattaci per la calibrazione o la riparazione del Keysight (Agilent) E5515C.
