Keysight (Agilent)

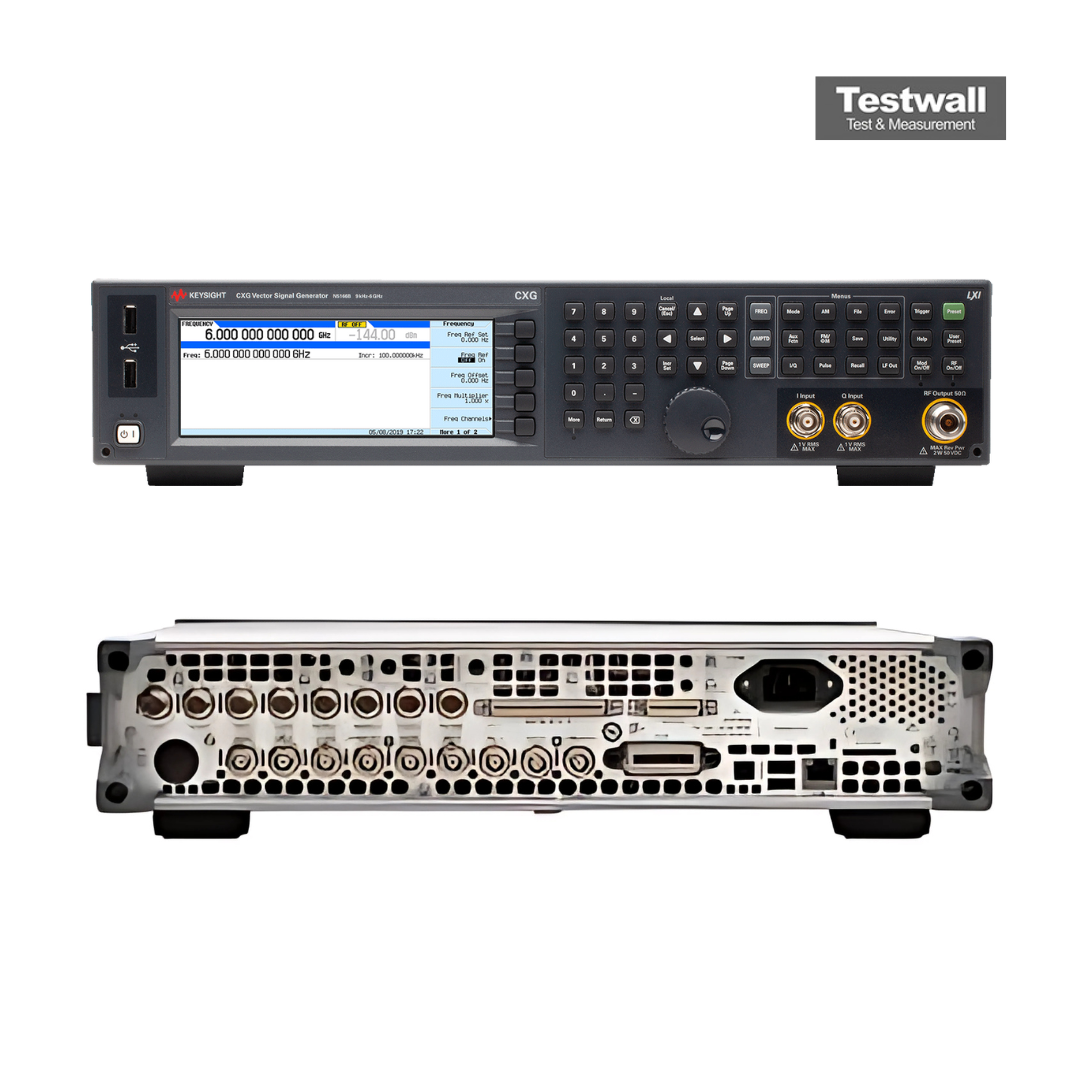

Keysight (Agilent) N5166B
Vector Signal Generator, 9 kHz to 3 GHz (or 6 GHz)
±0,6 dB, max. a -60 dBm Precisione di livello
0,001 Hz Risoluzione di frequenza
< -35 dBc a 9 kHz a 3 GHz Armoniche
-60 a -65 dBc, >10 kHz offset Spurie non armoniche
≤ 5 ms (tip.) Velocità di commutazione
| Attributo | Valore |
|---|---|
| Precisione di livello | ±0,6 dB, max. a -60 dBm |
| Risoluzione di frequenza | 0,001 Hz |
| Armoniche | < -35 dBc a 9 kHz a 3 GHz |
| Spurie non armoniche | -60 a -65 dBc, >10 kHz offset |
| Velocità di commutazione | ≤ 5 ms (tip.) |
| Gamma di frequenza | 9 kHz a 3 o 6 GHz |
| Potenza di uscita | -144 a +18 dBm a 10 MHz a 3 GHz |
| Rumore di fase SSB | -119 dBc/Hz a 1 GHz, 20 kHz offset (tip.) |
| Modulazione | AM, FM, ΦM, impulso, I/Q (a seconda della configurazione) |
| Modalità sweep | sweep a passi, modalità lista |
| Invecchiamento base tempi | < ±1 × 10⁻⁶ all’anno |
| Connettore uscita RF | tipo N femmina |
| Interfacce | GPIB, LAN (LXI), USB |
| Dimensioni (L × A × P) | 426 × 88 × 489 mm |
| Peso | 15,9 kg (nom.) |
Configurazioni disponibili
| Modello | Intervallo di frequenza | Configurazione |
| N5166B-503 | 9 kHz a 3 GHz | Generatore di segnali vettoriale |
| N5166B-506 | 9 kHz a 6 GHz | Generatore di segnali vettoriale |
Keysight (Agilent) N5166B Vector Signal Generator, 9 kHz to 6 GHz Options:
- N5166B - 503 - Frequency range 9 kHz to 3 GHz
- N5166B - 506 - Frequency range 9 kHz to 6 GHz
- N5166B - 1ER - External reference input 1 to 50 MHz (in multiples of 0.1 Hz)
- N5166B - 009 - Extended waveform storage 30 GB / 7.5 GSa
- N5166B - 022 - Extended arbitrary waveform playback memory 512 MSa; extended direct-pattern RAM 1024 Mb
- N5166B - 303 - Multifunction generator (seven waveform generators for composite modulation)
- N5166B - 653 - Internal baseband generator, 100 Sa/s to 75 MSa/s, 60 MHz RF bandwidth
- N5166B - 655 - Extended baseband generator sample rate to 150 MSa/s and 120 MHz RF bandwidth (requires option 653)
- N5166B - 660 - Real-time modulation capability
- N5166B - UNT - AM, FM, and Phase modulation
- N5166B - UNW - Narrow pulse modulation and internal pulse train generator
- N5180320B - Pulse train generator personality
- N5180403B - AWGN (Additive White Gaussian Noise) personality
- N5180430B - Multitone and two-tone personality
- N5180431B - Custom modulation ARB mode and real-time mode personality

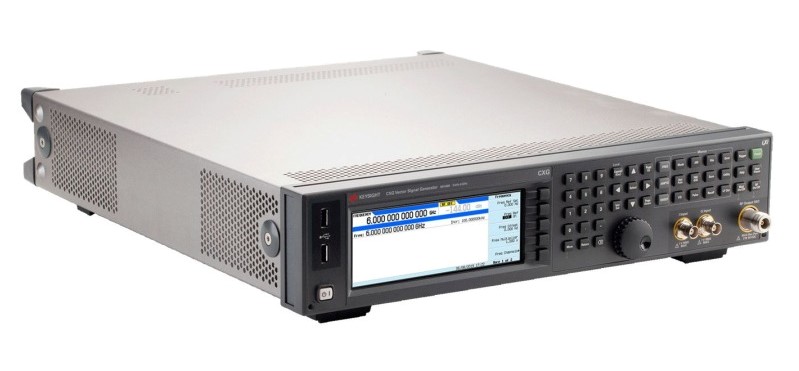

Keysight (Agilent) N5166B Vector Signal Generator
The Keysigt N5166B operates from 9 kHz to 3/6 GHz with up to 120 MHz of RF modulation bandwidth covering most consumer wireless application testing requirements. It provides an output power of 18 dBm and has a phase noise of -119 dBc/Hz (20 kHz offset) at 1 GHz. This signal generator can be used to perform basic parametric testing of components and functional verification of receivers. It is ideal for IoT, general-purpose R&D, and design validation (DVT) applications.
Specifications for the Keysight (Agilent) N5166B Vector Signal Generator Include:
| Frequency | 9 kHz to 3/6 GHz |
| Output Power @1 GHz | +18 dBm |
| Harmonics @1 GHz | < -35 dBc |
| Phase Noise @1 GHz (20 kHz offset) | -119 dBc/Hz |
Opzioni e configurazioni
- Gamma di frequenza: 9 kHz a 3 o 6 GHz (Opz. 503/506)
- Modulazione: AM, FM, ΦM (Opz. UNT), impulso (Opz. UNW), I/Q
- Larghezza di banda di modulazione: 120 MHz RF (I+Q) interno con Opz. 653/655 (nom.)
