Keysight (Agilent) N5231B
| Attributo | Valore |
|---|---|
| Intervallo di Frequenza | 300 kHz – 13,5 GHz |
| Numero di Porte | 2 porte |
| Dinamica di Misura | fino a 122 dB |
| Potenza di Uscita | da -45 dBm a +10 dBm |
| Punti di Misura per Sweep | fino a 100.001 punti |
| Impedenza di Riferimento | 50 Ohm |
| Velocità di Misura | fino a 12 µs per punto |
| Connettori RF | 2,4 mm (compatibile con 3,5 mm e SMA) |
| Interfacce di Connessione | USB, LAN (LXI), GPIB |
| Sistema Operativo | Windows 7 Embedded (64-bit) |
Keysight (Agilent) N5231B Options:
- N5231B - 200 - 2-port base model with standard test set
- N5231B - 216 - To base model, adds front-panel jumpers, and source attenuators (extended power range)
- N5231B - 400 - 4-port base model with standard test set
- N5231B - 416 - To base model, adds front-panel jumpers, and source attenuators (extended power range)
| Model | N5231B |
|---|

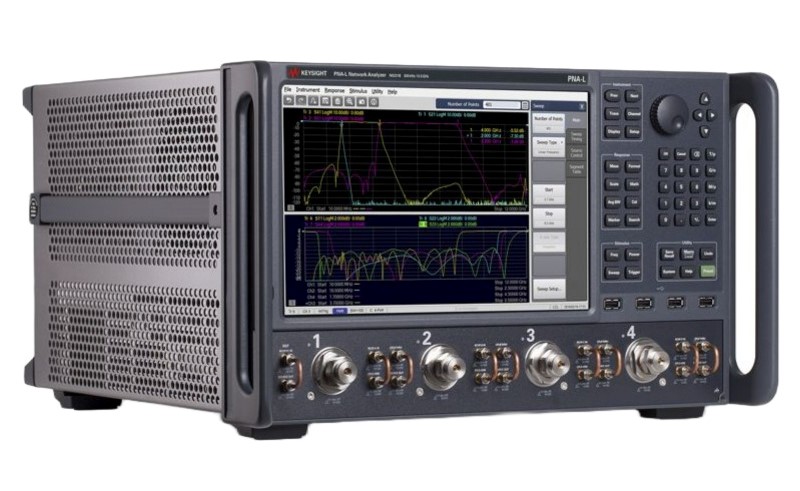

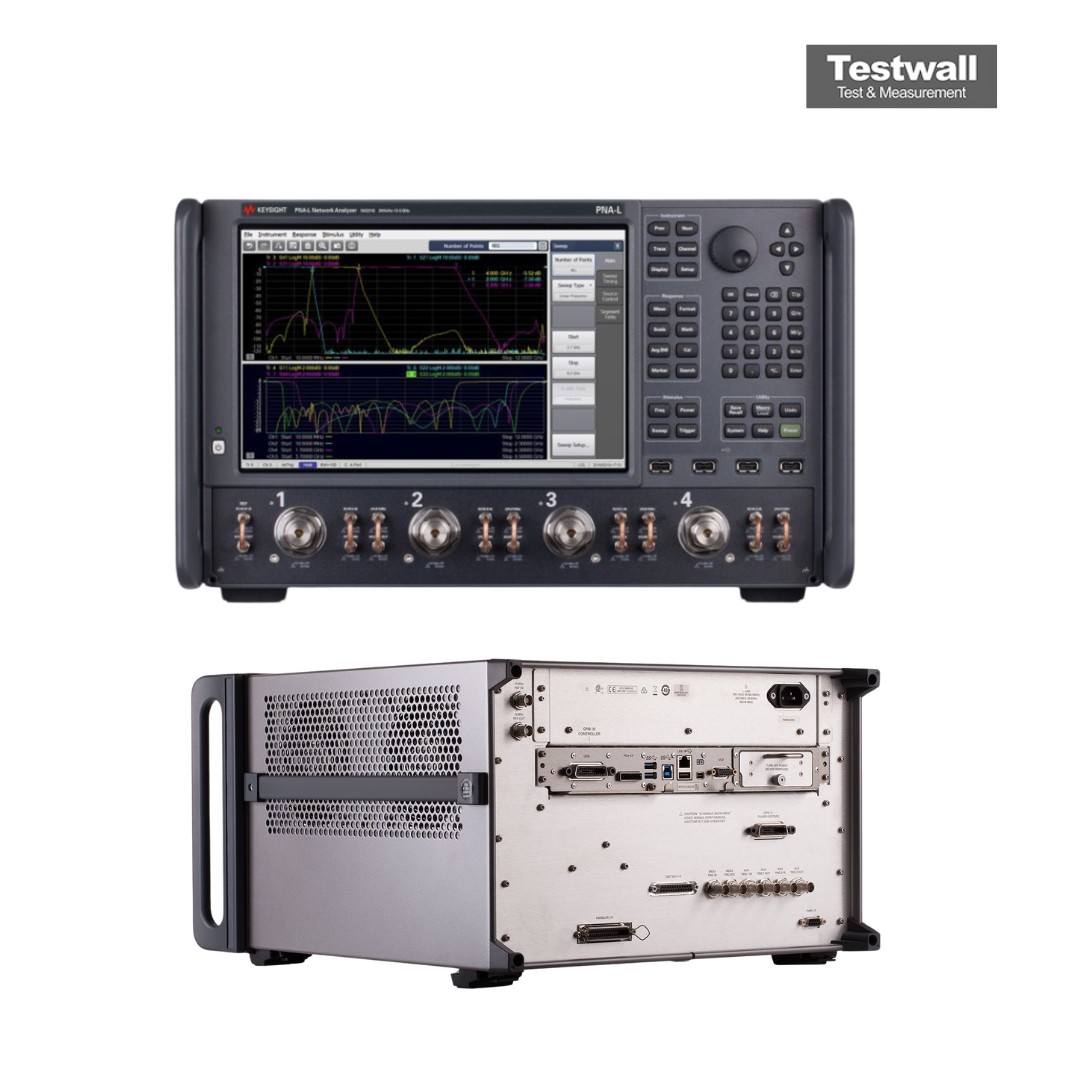

Keysight (Agilent) N5231B PNA-L Network Analyzer
The Keysight N5231B PNA-L series network analyzer is designed for S-parameter and simple nonlinear testing of passive components, amplifiers, and frequency converters. With the same core firmware as the PNA, the PNA-L offers the perfect balance of value and performance. The PNA-L provides efficiency and flexibility in both manufacturing and R&D applications, for industries ranging from mobile-telecomm and wireless-LAN component production to aerospace and defense.
For passive devices that have one or more balanced/differential ports, the Keysight N5231B is an excellent choice for mixed-mode S-parameter measurements, without the need or limitations of using baluns. Users can display differential-, common-, and mixed-mode performance, in a variety of trace formats. Measurement parameters include common-mode-rejection ratio and amplitude and phase imbalance. Supported port configurations include single-ended-to-balanced and balanced-to-balanced topologies.
Specifications for the Keysight (Agilent) N5231B PNA-L Network Analyzer Include:
| Maximum Frequency | 13.5 GHz |
| Dynamic Range | 133 dB |
| Output Power | 13 dBm |
| Trace Noise | 0.004 dBrms |
| Harmonics | -18 dBc |
