Keysight (Agilent)
Keysight (Agilent) P9336A
Streamline USB I/Q Arbitrary Waveform Generator
3 canali (2 I/Q, 1 amplified) Canali
fino a 1,28 GSa/s Frequenza di campionamento
16 bit Risoluzione verticale
fino a 4 GB Memoria arbitraria
SFDR > 67 dBc Distorsione armonica
| Attributo | Valore |
|---|---|
| Canali | 3 canali (2 I/Q, 1 amplified) |
| Frequenza di campionamento | fino a 1,28 GSa/s |
| Risoluzione verticale | 16 bit |
| Memoria arbitraria | fino a 4 GB |
| Distorsione armonica | SFDR > 67 dBc |
| Gamma di frequenza | 540 MHz bandwidth per canale (1080 MHz I/Q) |
| Ampiezza | fino a 1 Vpp (2 Vpp diff.), canale 1 e 2; fino a 1,7 Vpp (3,4 Vpp diff.), canale 3 |
| Impedenza di uscita | 50 Ω (nom.) |
| Connettore di uscita | SMB |
| Interfacce | USB 3,0 |

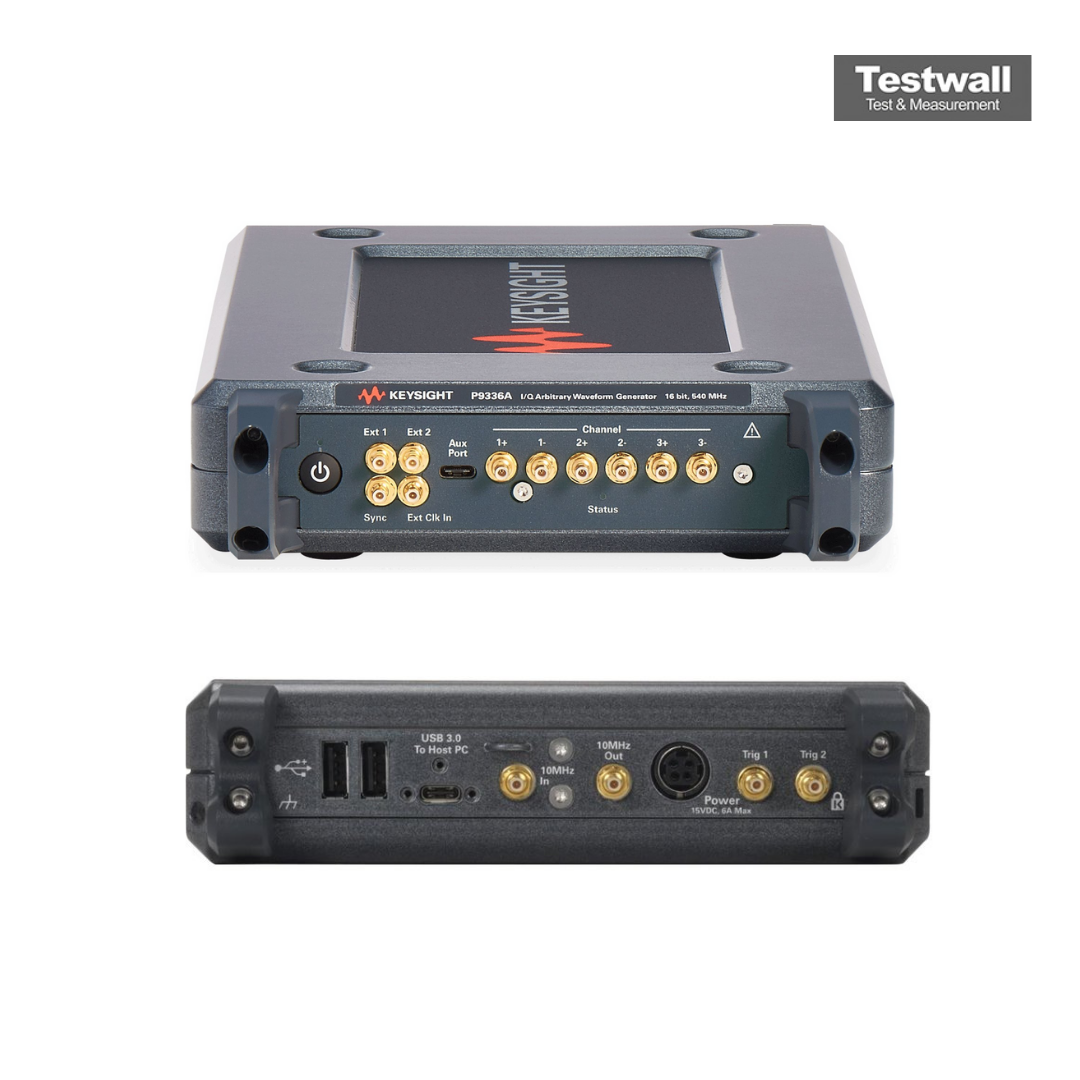

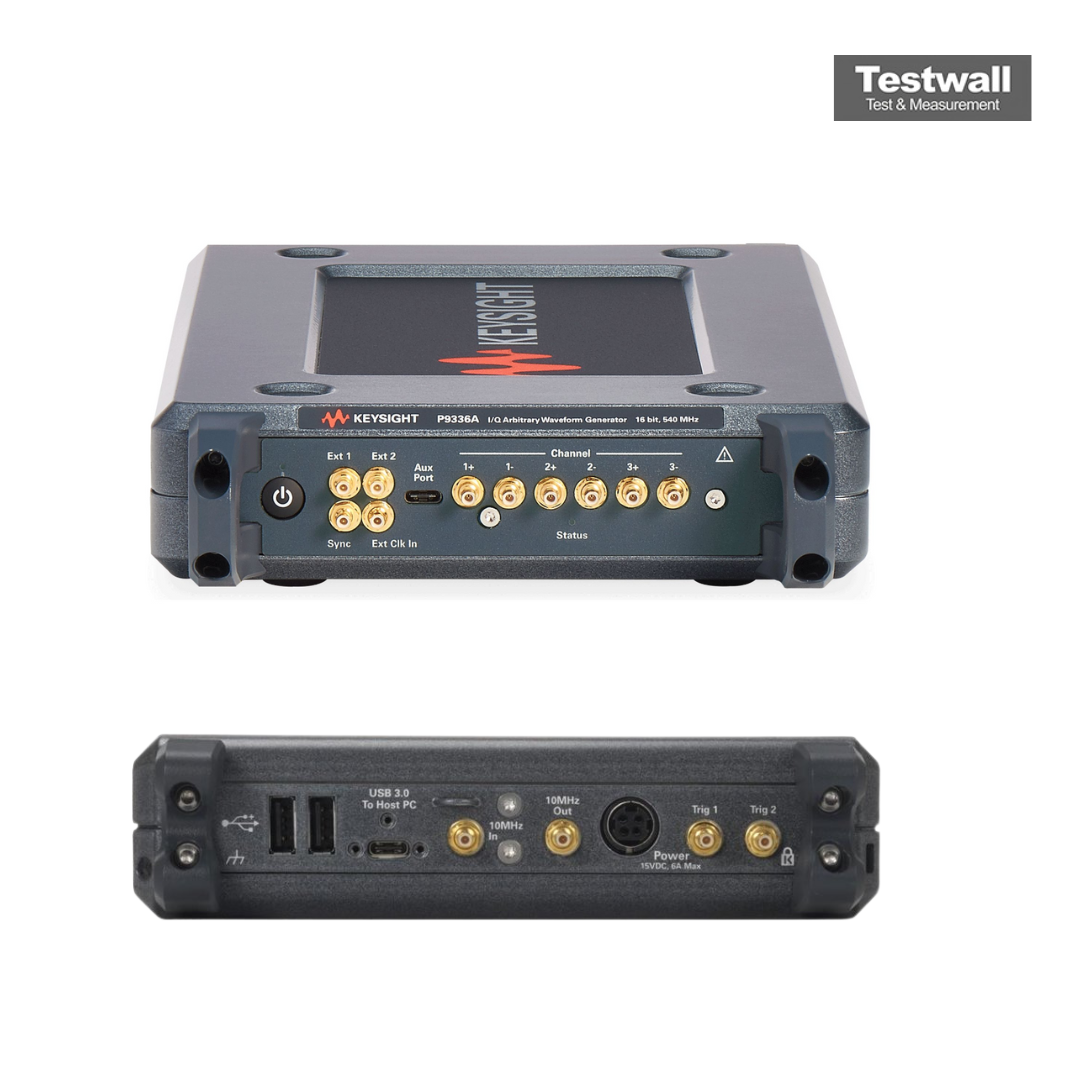

The Keysight (Agilent) P9336A Streamline USB I/Q Arbitrary Waveform Generator features a 540 MHz bandwidth per channel and 1080 MHz I/Q modulation bandwidth, offering 16-bit amplitude resolution.
Compact and portable, it provides three differential or single-ended signal channels with SMB connectors and is controlled via USB by an external computer.
Testwall can supply the used Keysight (Agilent) P9336A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) P9336A.
