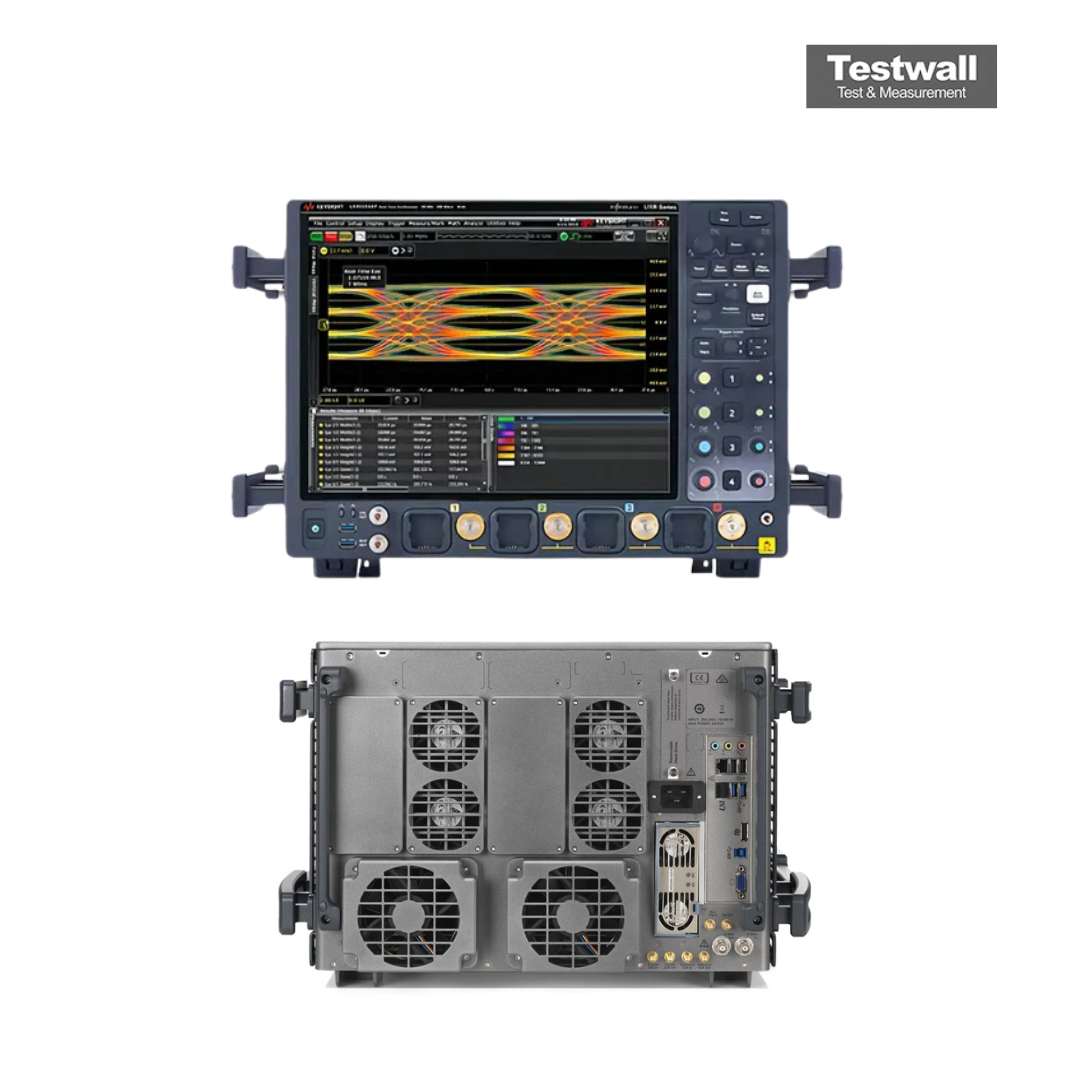

Keysight (Agilent) UXR0164A
| Attributo | Valore |
|---|---|
| Larghezza di banda | 16 GHz |
| Frequenza di campionamento | 256 GSa/s |
| Numero di canali | 4 canali |
| Risoluzione verticale | 10 bit (fino a 12 bit in modalità alta risoluzione) |
| Profondità di memoria | 2 Gpt per canale |
| Rumore del pavimento | Meno di 1% della scala intera (tipico) |
| Impedenza di ingresso | 50 Ω |
| Tensione massima di ingresso | 5 V (picco) |
| Range di scala verticale | Da 10 mV/div a 1 V/div |
| Interfacce di connettività | USB, LAN (LXI), PCIe |
Keysight (Agilent) UXR0164A Options:
- UXR0164A - UXR0000-01G - Memory upgrade: 1 Gpt per channel memory depth
- UXR0164A - UXR0000-02G - Memory upgrade: 2 Gpts per channel memory depth
- UXR0164A - UXR0000-601 - DDC bandwidth upgrade: up to 200 MSa/s complex, 160 MHz analysis bandwidth
- UXR0164A - UXR0000-602 - DDC bandwidth upgrade: up to 3,200 MSa/s complex, 2.00 GHz analysis bandwidth
- UXR0164A - UXR0000-605 - 5 GHz BW frequency extension range (Min CF: 3.5 GHz, Max CF: 30.5 GHz for 3.5 mm models)
- UXR0164A - UXR0000-610 - 10 GHz BW frequency extension range (Min CF: 7 GHz, Max CF: 28 GHz for 3.5 mm models)
- UXR0164A - UXR0000-620 - 20 GHz BW frequency extension range (Min CF: 14 GHz, Max CF: 23 GHz for 3.5 mm models)
- UXR0164A - UXR0000-630 - 30 GHz BW frequency extension range (Min CF: 21 GHz, Max CF: 32 GHz for 3.5 mm models)
- UXR0164A - UXR0000-682 - 5 GHz BW frequency extension range up to 82 GHz (Min CF: 3.5 GHz, Max CF: 30.5 GHz for 3.5 mm models)
- UXR0164A - N2163A-601 - DDC software upgrade: 50 to 200 MSa/s complex, 40 MHz to 160 MHz bandwidth
- UXR0164A - N2163A-602 - DDC software upgrade: 50 to 3,200 MSa/s complex, 40 MHz to 2.16 GHz bandwidth
| Model | UXR0164A |
|---|

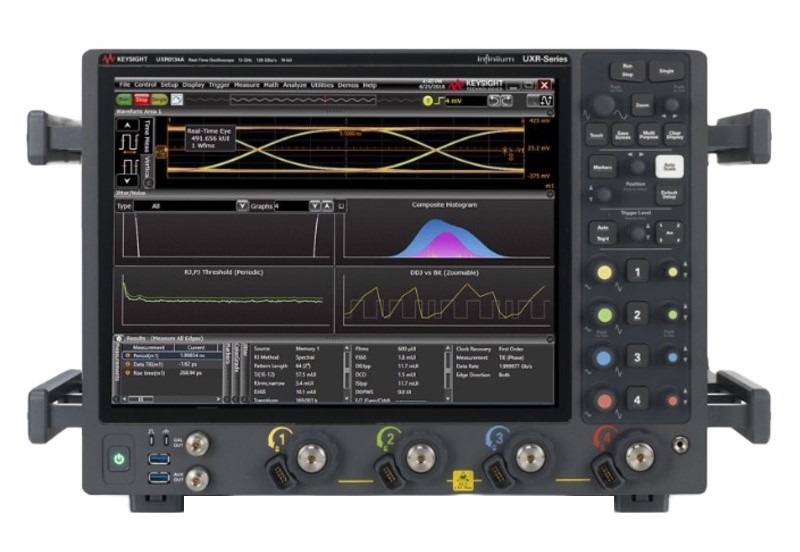

KEYSIGHT UXR0164A Infiniium Oscilloscope
The Keysight UXR0164A Infiniium Oscilloscope delivers world-leading performance, ultra-low noise, and high signal fidelity for engineers and scientists to truly see and understand the fastest phenomena - enabling you to develop the next generation of technology and research more quickly. The Keysight UXR0164A has more accurate analysis with four channels of simultaneous 16 GHz of bandwidth, each concurrently sampling at a staggering 128 GSa/s with 10 bits of high-definition analog to digital converter (ADC) resolution.
The Keysight UXR0164A Infiniium Oscilloscope runs faster performance for some measurements €“ enabled by a powerful new measurement acceleration ASIC and memory controller capable of 5 trillion integer operations per second (IOPS). The Keysight UXR0164A is fully upgradeable, you can easily upgrade the bandwidth, memory, channel count, and software capabilities to meet your future needs. The Keysight UXR0164A guarantees the speed, low noise, and high fidelity needed to capture and measure today's and the future's highbandwidth low-voltage signals - where picoseconds and microvolts matter. These revolutionary capabilities ensure signals are clearer, eye diagrams are more open, and test results are truly accurate.
Specifications for the KEYSIGHT UXR0164A Infiniium Oscilloscope Include:
| Max Bandwidth | 16 GHz |
| Max Sample Rate | 128 GSa/s |
| Resolution | 10 bits |
| Max Memory Depth | 2 GPts |
