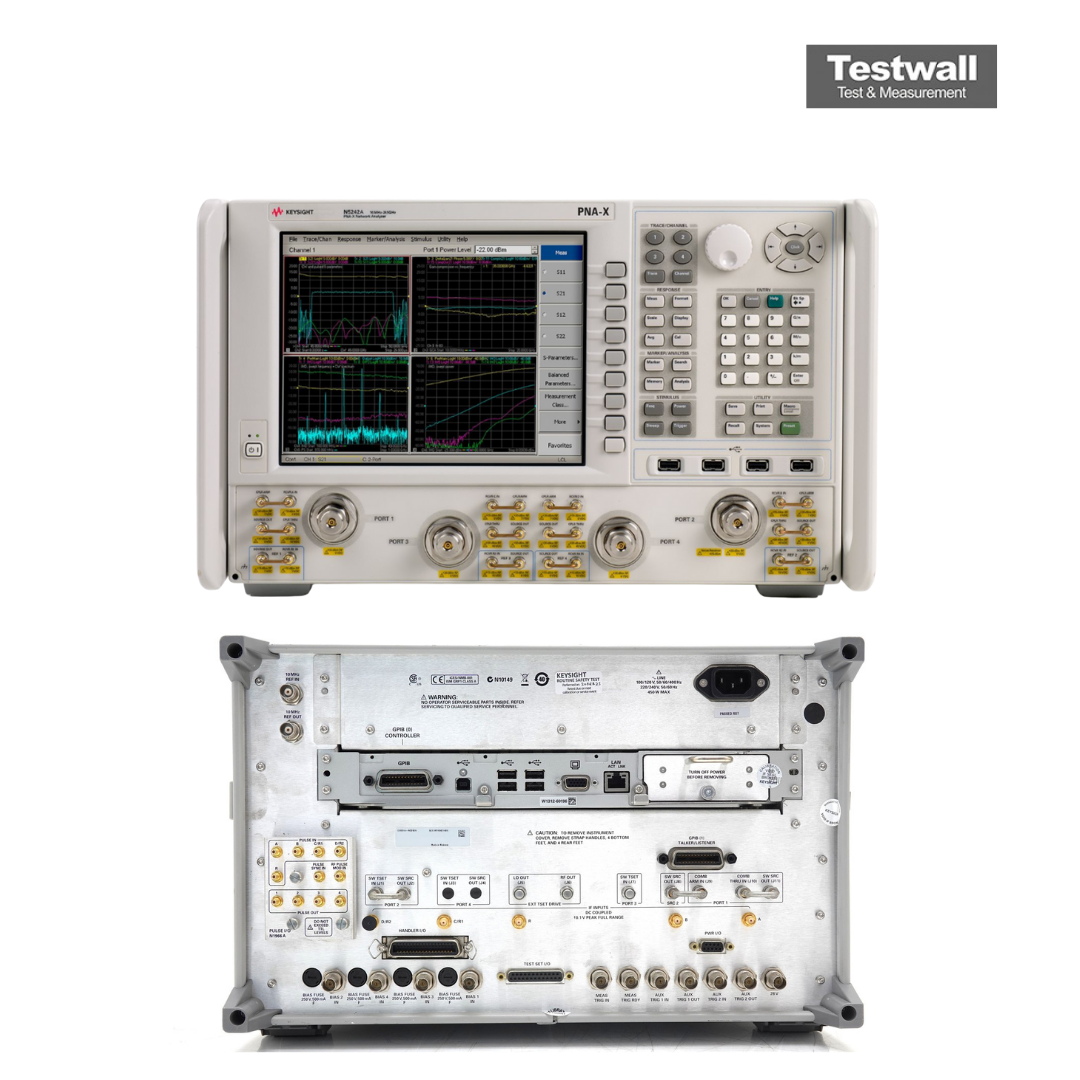

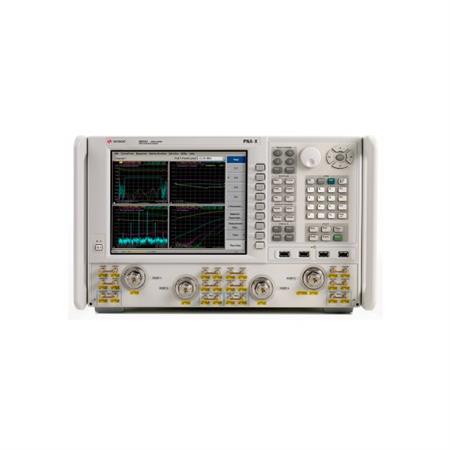

Keysight Technologies N5242A
| Attributo | Valore |
|---|---|
| Intervallo di Frequenza | 10 MHz - 26,5 GHz |
| Numero di Porte | 4 porte |
| Dinamica di Misura | Fino a 132 dB |
| Potenza di Uscita | Da -85 dBm a +20 dBm |
| Livello di Rumore del Pavimento | -114 dBm (tipico) |
| Velocità di Misura | Fino a 40.000 punti al secondo |
| Impedenza di Sistema | 50 Ohm |
| Numero di Punti per Sweep | Da 1 a 32.001 punti |
| Interfacce di Connettività | GPIB, USB, LAN (LXI Classe C) |
| Sistema Operativo | Windows XP Professional (incorporato) |
Keysight (Agilent) N5242A Options:
- N5242A - 029 - Adds hardware and firmware for high-accuracy noise figure measurements (requires one of option 219, 224, 419, or 423)
- N5242A - 200 - 2-port standard test set (includes six front-panel access loops) and power range
- N5242A - 219 - Adds 2-port extended power range, source and receiver attenuators, and bias-tees (requires Option 200)
- N5242A - 224 - Adds an internal second source, a combiner, and mechanical switches to the 2-port analyzer (requires Option 200, 219, and 080)
- N5242A - 400 - 4-port standard test set (includes twelve front-panel access loops), power range, and an internal second source (Option 080 recommended)
- N5242A - 419 - Adds 4-port extended power range, source and receiver attenuators, and bias-tees (requires Option 400)
- N5242A - 423 - Adds an internal combiner, and mechanical switches to the 4-port analyzer (requires Option 400, 419, and 080)
| Model | N5242A |
|---|
The Keysight (Agilent) N5242A PNA-X Network Analyzer offers exceptional versatility with 2 or 4 ports and dual built-in sources covering 10 MHz to 26.5 GHz. Its advanced features include 132 dB system dynamic range, 0.1 dB compression accuracy, and low noise floor of -114 dBm at 10 Hz IFBW.
Designed for high-performance testing of amplifiers, mixers, and frequency converters, it supports applications like S-parameters, noise figure, gain compression, and millimeter-wave analysis.
Testwall can supply the used Keysight (Agilent) N5242A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5242A.
