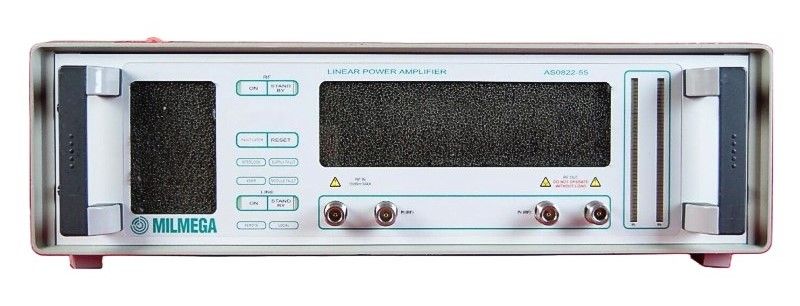

Milmega AS0825-65
Broadband Amplifier, 0.8 GHz - 2.5 GHz, 65W
0,8 - 2,5 GHz Intervallo di frequenza
65 W Potenza di uscita
50 dB Guadagno minimo
65 W (tipica) Potenza di saturazione
50 Ohm Impedenza
| Attributo | Valore |
|---|---|
| Intervallo di frequenza | 0,8 - 2,5 GHz |
| Potenza di uscita | 65 W |
| Guadagno minimo | 50 dB |
| Potenza di saturazione | 65 W (tipica) |
| Impedenza | 50 Ohm |
| Connettore di ingresso | N femmina |
| Connettore di uscita | N femmina |
| Alimentazione | 220 - 240 V CA, 50/60 Hz |
| Figura di rumore | ≤ 10 dB |
| Temperatura operativa | 0°C - 40°C |
| Model | AS0825-65 |
|---|
MILMEGA AS0825-65 AMPLIFIER
The Milmega AS0825-65 Broadband Amplifier implements the lastest technologies with its innovative design. Its unique features and benefits include an impressive array of input/output and sample port options, cost effective power or bandwidth upgrades, unbeatable power density, built in-in protection and much more.
Features and Specifications of the MILMEGA AS0825-65 Amplifier include:
- Features:
- Maximum power
- Unbeatable power density
- Will maintain full forward power into any load condition
- Combiner / coupler integration as standard allows samples of incident and reflected power to be measured with virtually no loss
- 100% tested into short and open circuit
- Up to 250 watts in a single 3U unit
- Consistent over greater than octave bandwidths
- Broadband CW power output to 1 kW
- High visibility status and power indicators: Color LED bar graph displays on the front panel giving an indication of incident and reflected power
- 15 way rear mounted D-type allowing remote operation via TTL commands while providing access to an output signal sample
- All data is measured at 25 °C driven from a 50 W source and driving into a 50 W load
- Built-in protection:
- In the event of internal temperature exceeding 70 °C, the amplifier blocks will automatically switch off to avoid damage
- Unit incorporates a rear panel mounted connector for interlock BR2-female
- Easily rack mounted: Amplifiers are standard 3U high units and may be combined in rack mounted form to build higher power amplifiers
- Bench models: 3U high units have bench case options
- Specifications:
- Class leading linearity and noise specifications:
- Gain variation with temperature
- IP3 typically 10 dB> P1 dB
- Harmonics -20 dBc minimum
- Spurious (maximum) -70dBc
- Spurious (typical) -80 dBc
- Psat (minimum):
- 64.6 W
- 48.1 dBm
- P1dB (minimum):
- 57.5 W
- 47.6 dBm
- Noise figure (maximum): 6.0 dB
- Gain variation: ± 2.0 dB
- Harmonic distortion (maximum): -20 dBc
- Power consumption: 1000 W
- Primary power:
- 85-260 V (50/60 Hz)
- Input power (for rated output): 5 dBm
- Input power (no damage): 15 dBm
- Input VSWR (impedance 50 Ω nominal): 2:1 maximum
- Output VSWR (impedance 50 Ω nominal): 2:1 typical
- Load VSWR (any phase) is infinite
- Line input frequency: 47-65 Hz
- RF Input: Type N female
- RF Output: Type N female
