North Atlantic 8810A Options:
- 8810A - R - Add internal programmable 2.2 VA Reference Generator (standard accuracy ±0.004°)
- 8810AH - (base) - Optional high accuracy unit ±0.0015° (no Reference Generator)
- 8810AH - R - High accuracy unit ±0.0015° with internal programmable 2.2 VA Reference Generator
| Model | 8810A |
|---|

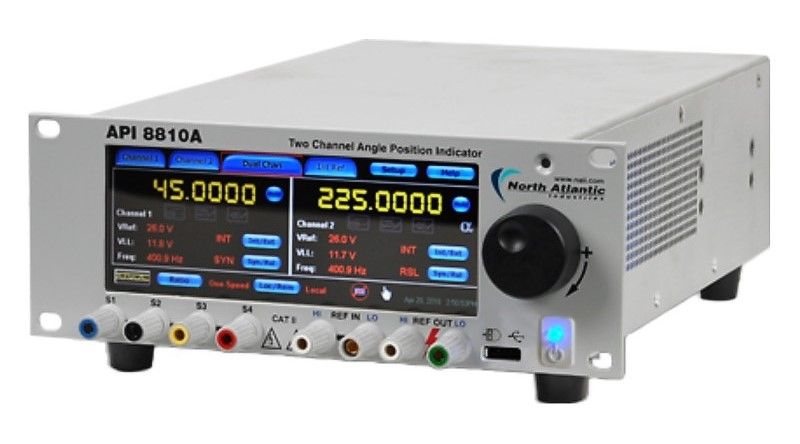

NORTH ATLANTIC 8810A Angle Position Indicator
The North Atlantic 8810A, truly represents a major step forward in synchro to digital conversion technology. The use of an intelligent DSP design eliminates push buttons and allows all programming to be done either via an integrated touch-screen or a mouse interface. In addition, IEEE-488, Ethernet, and USB interfaces have been added to extend remote operation capabilities. The display can be set for one of three display modes; 0-360 º, ±180 °, or Degrees, Minutes, Seconds. A wide (47 Hz to 20 KHz) frequency range is standard.
Improved flexibility is provided by two fully independent inputs that can be used to simultaneously read two separate input signals or can be combined to measure multi- speed Synchros or Resolvers. The gear ratio, for the two-speed mode, is programmable from 2:1 to 255:1. The North Atlantic 8810A automatically accepts and displays input voltages from 1.0 to 90 VL-L and Reference voltages from 2 to 115 Vrms over a broad frequency range of 47 Hz to 20 KHz. Therefore, one Instrument can handle most known Synchro and Resolver measurement requirements.
Specifications for the NORTH ATLANTIC 8810A Angle Position Indicator Include:
- High-Resolution Touch Screen
- Programmable Display Options
- Self-Calibrating
- Resolution: 0.0001 °
- Accuracy: Up to ±0.0015 °
- Two Isolated Input Channels
- Single or Two-Speed Measurements: Programmable Ratio from 2 to 255
- Three display modes: 0-360 °, ±180 ° or degrees, minutes & seconds
- Rack mount or benchtop
- Ethernet, USB, IEEE-488, and parallel ports
- Optional 6VA Internal Reference
