Rigol

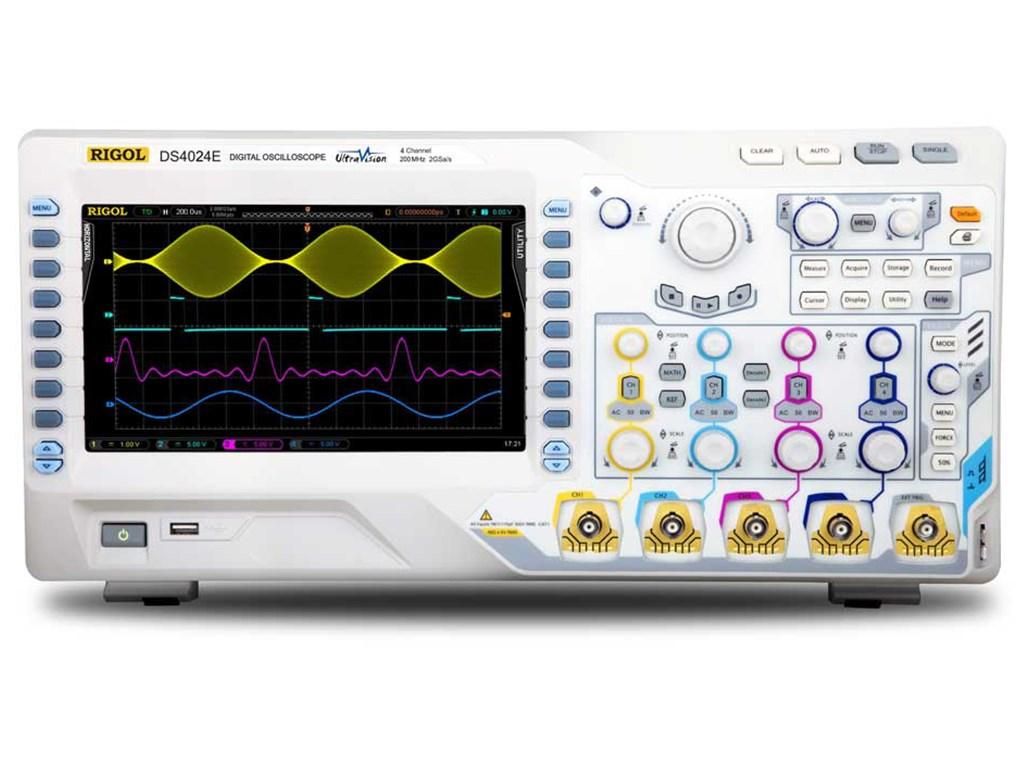

Rigol DS4024E
High quality 4 channel DSO with 200 MHz bandwidth, 2 GSa/s (per channel) and 14 Mpts memory depth (per channel).
200 MHz Larghezza di banda
4 Numero di canali
2 GSa/s Frequenza di campionamento
14 Mpts Profondità di memoria
8 bit Risoluzione verticale
| Attributo | Valore |
|---|---|
| Larghezza di banda | 200 MHz |
| Numero di canali | 4 |
| Frequenza di campionamento | 2 GSa/s |
| Profondità di memoria | 14 Mpts |
| Risoluzione verticale | 8 bit |
| Dimensione dello schermo | 8 pollici (TFT LCD) |
| Risoluzione del display | 800 x 480 pixel |
| Frequenza di aggiornamento della forma d'onda | 110.000 forme d'onda/s |
| Intervallo di tensione in ingresso | 1 mV/div - 10 V/div |
| Interfacce di connessione | USB Host, USB Device, LAN (LXI), AUX |
| Model | DS4024E |
|---|
The Rigol DS4024E is a very high quality four channel digital storage oscilloscope. It offers a real-time sample rate of up to 2 GSa/s (per channel) and and a bandwidth of up to 200 MHz.
This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The DS4012 has a refresh rate of up to 110.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to enhance the waveform capturing ability and to expedite a circuit debug course. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.
Other advantages: 9" color LCD, bright and vivid waveform display; versatile trigger modes: i.e. slope, alternative, rise&fall edge, enables users to stabilize the signal more easily. In economic context, the DS4012 clearly has the highest performance standard and the largest number of functions, making it a top of the range oscilloscope.
Attention: All DS/MSO4000 are equipped with a new fan which is much more quiet than before!
