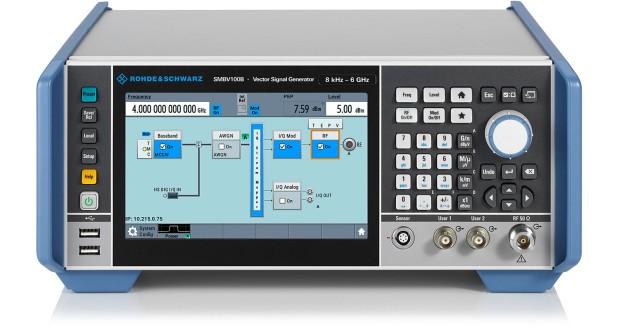

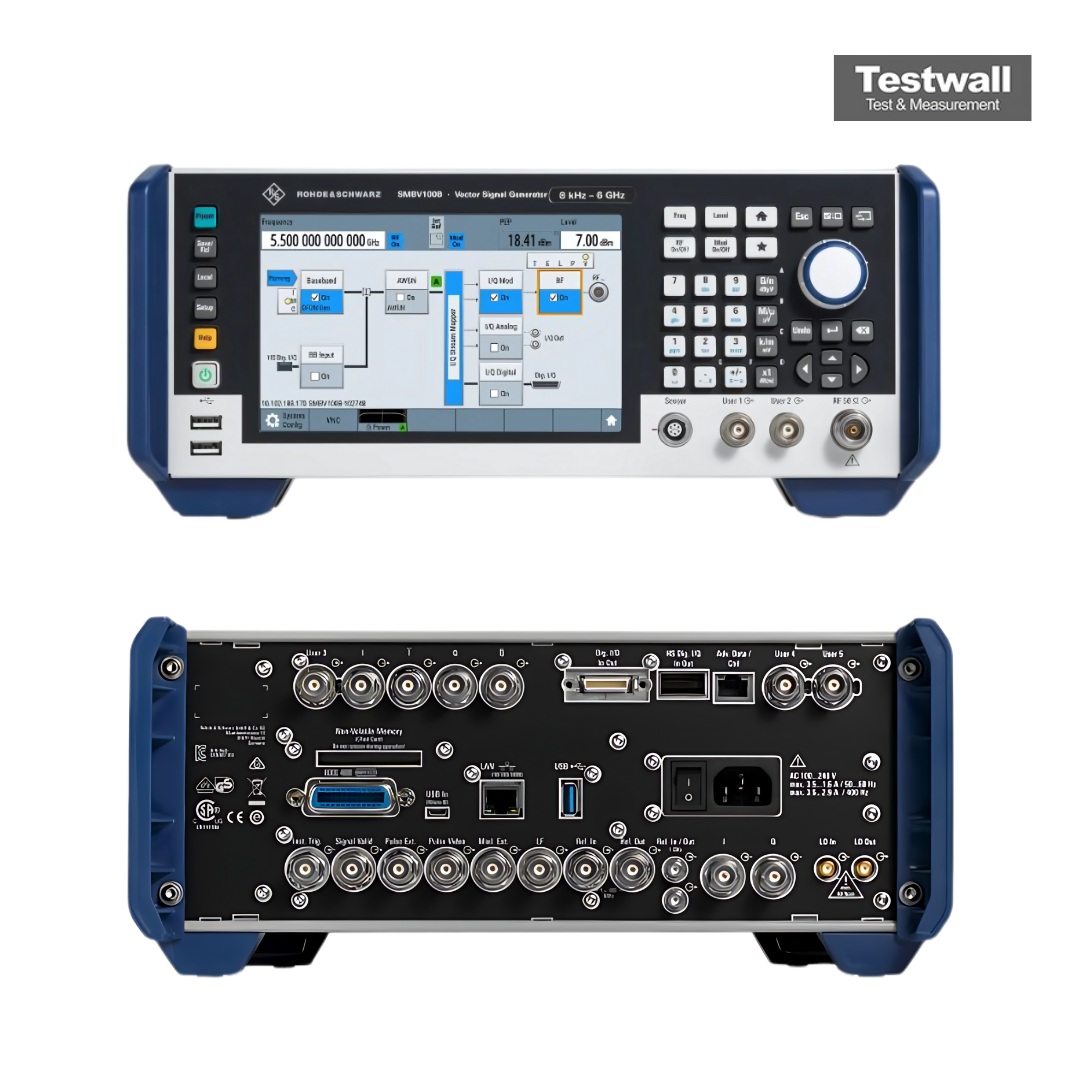

Rohde & Schwarz SMBV100B
Vector Signal Generator - Frequency range from 8 kHz to 3 GHz or 6 GHz
0,001 Hz Risoluzione di frequenza
< -30 dBc (≤ +13 dBm) Armoniche
< 1,4 ms Velocità di commutazione
GPIB, LAN, USB, RS-232 Interfacce
7 in a colori touchscreen Display
| Attributo | Valore |
|---|---|
| Risoluzione di frequenza | 0,001 Hz |
| Armoniche | < -30 dBc (≤ +13 dBm) |
| Velocità di commutazione | < 1,4 ms |
| Interfacce | GPIB, LAN, USB, RS-232 |
| Display | 7 in a colori touchscreen |
| Gamma di frequenza | 8 kHz a 3 GHz (a seconda della configurazione) |
| Potenza di uscita | fino a +20 dBm (standard) |
| Rumore di fase SSB | < -126 dBc/Hz a 1 GHz, 20 kHz offset (-132 tip.) |
| Modulazione | AM, FM, ΦM, impulso, I/Q (a seconda della configurazione) |
| Precisione di livello | < 0,5 dB (200 kHz a 3 GHz), < 0,7 dB (> 3 GHz) |
| Spurie non armoniche | < -80 dBc (≤ 750 MHz), < -70 dBc (a 3 GHz), < -64 dBc (a 6 GHz) |
| Larghezza di banda di modulazione | 120 MHz (standard) |
| Modalità sweep | sweep a passi, sweep di potenza, modalità lista |
| Invecchiamento base tempi | 1 × 10⁻⁶ all’anno (standard) |
| Connettore uscita RF | tipo N femmina, pannello frontale |
| Dimensioni (L × A × P) | 344 × 153 × 372 mm |
| Peso | 10,5 kg |
Rohde & Schwarz SMBV100B Options:
- SMBV100B - SMBVB-B103 - 8 kHz to 3 GHz Frequency Option
- SMBV100B - SMBVBKB106 - Frequency Extension to 6 GHz
- SMBV100B - SMBVB-B1 - OCXO Reference Oscillator
- SMBV100B - SMBVB-B1H - High Performance OCXO Reference Oscillator
- SMBV100B - SMBVB-B3 - 1 GHz Reference
- SMBV100B - SMBVB-K704 - Flexible Reference Input from 1 MHz to 100 MHz
- SMBV100B - SMBVB-K31 - High Output Power
- SMBV100B - SMBVB-B32 - Ultra High Output Power
- SMBV100B - SMBVB-K90 - Phase Coherence
- SMBV100B - SMBVB-K22 - Pulse Modulator
- SMBV100B - SMBVB-K23 - Pulse Generator
- SMBV100B - SMBVB-K24 - Multifunction Generator
- SMBV100B - SMBVB-K720 - AM/FM/φM
- SMBV100B - SMBVB-K17 - Differential Analog I/Q Outputs
- SMBV100B - SMBVB-K511 - ARB Memory Extension to 512 Msample
- SMBV100B - SMBVB-K512 - ARB Memory Extension to 1 GSample
- SMBV100B - SMBVB-K513 - ARB Memory Extension to 2 Gsample
- SMBV100B - SMBVB-K520 - Baseband Realtime Extension
- SMBV100B - SMBVB-K523 - Baseband Extension to 240 MHz RF Bandwidth
- SMBV100B - SMBVB-K524 - Baseband Extension to 500 MHz RF Bandwidth
- SMBV100B - SMBVB-K62 - Additive White Gaussian Noise (AWGN)
- SMBV100B - SMBVB-K80 - Bit Error Rate Tester
- SMBV100B - SMBVB-K540 - Envelope Tracking
- SMBV100B - SMBVB-K541 - AM/AM, AM/φM Predistortion
- SMBV100B - SMBVB-K544 - User-Defined Frequency Response Correction
- SMBV100B - SMBVB-K40 - GSM/EDGE
- SMBV100B - SMBVB-K41 - EDGE Evolution
- SMBV100B - SMBVB-K42 - 3GPP FDD
- SMBV100B - SMBVB-K46 - CDMA2000®
- SMBV100B - SMBVB-K47 - 1xEV-DO
- SMBV100B - SMBVB-K50 - TD-SCDMA
- SMBV100B - SMBVB-K51 - TD-SCDMA Enhanced BS/MS Tests
- SMBV100B - SMBVB-K54 - IEEE 802.11 (a/b/g/n/j/p)
- SMBV100B - SMBVB-K55 - EUTRA/LTE
- SMBV100B - SMBVB-K60 - Bluetooth® EDR
- SMBV100B - SMBVB-K61 - Multicarrier CW Signal Generation
- SMBV100B - SMBVB-K83 - 3GPP FDD HSPA/HSPA+, Enhanced BS/MS Tests
- SMBV100B - SMBVB-K84 - EUTRA/LTE Release 9 and Enhanced Features
- SMBV100B - SMBVB-K85 - EUTRA/LTE Release 10 (LTE-Advanced)
- SMBV100B - SMBVB-K86 - IEEE 802.11ac
- SMBV100B - SMBVB-K87 - 1xEV-DO Rev. B
- SMBV100B - SMBVB-K112 - LTE Release 11 and Enhanced Features
- SMBV100B - SMBVB-K113 - LTE Release 12
- SMBV100B - SMBVB-K114 - OFDM Signal Generation
- SMBV100B - SMBVB-K115 - Cellular IoT
- SMBV100B - SMBVB-K117 - Bluetooth® 5.0
- SMBV100B - SMBVB-K119 - LTE Release 13 and 14
- SMBV100B - SMBVB-K142 - IEEE 802.11ax
- SMBV100B - SMBVB-K143 - Cellular IoT Enhancements
- SMBV100B - SMBVB-K144 - 5G NR
- SMBV100B - SMBVB-K240 - GSM/EDGE (WinIQSIM2)
- SMBV100B - SMBVB-K241 - EDGE Evolution (WinIQSIM2)
- SMBV100B - SMBVB-K242 - 3GPP FDD (WinIQSIM2)
- SMBV100B - SMBVB-K244 - GPS (WinIQSIM2)
- SMBV100B - SMBVB-K246 - CDMA2000® (WinIQSIM2)
- SMBV100B - SMBVB-K247 - 1xEV-DO Rev A (WinIQSIM2)
- SMBV100B - SMBVB-K250 - TD-SCDMA (WinIQSIM2)
- SMBV100B - SMBVB-K251 - TD-SCDMA Enhanced BS/MS Tests (WinIQSIM2)
- SMBV100B - SMBVB-K252 - DVB-H (WinIQSIM2)
- SMBV100B - SMBVB-K253 - DAB/T-DMB (WinIQSIM2)
- SMBV100B - SMBVB-K254 - 802.11a/b/g/n (WinIQSIM2)
- SMBV100B - SMBVB-K255 - EUTRA/LTE (WinIQSIM2)
- SMBV100B - SMBVB-K260 - Bluetooth® EDR (WinIQSIM2)
- SMBV100B - SMBVB-K261 - Multicarrier CW Signal Generation (WinIQSIM2)
- SMBV100B - SMBVB-K262 - Additive White Gaussian Noise (AWGN) (WinIQSIM2)
- SMBV100B - SMBVB-K266 - Galileo (WinIQSIM2)
- SMBV100B - SMBVB-K283 - 3GPP FDD HSPA/HSPA+, Enhanced BS/MS Tests (WinIQSIM2)
- SMBV100B - SMBVB-K284 - EUTRA/LTE Release 9 and Enhanced Features (WinIQSIM2)
- SMBV100B - SMBVB-K285 - EUTRA/LTE Release 10 (LTE-Advanced) (WinIQSIM2)
- SMBV100B - SMBVB-K286 - IEEE 802.11ac (WinIQSIM2)
- SMBV100B - SMBVB-K287 - 1xEV-DO Rev. B (WinIQSIM2)
- SMBV100B - SMBVB-K289 - NFC A/B/F (WinIQSIM2)
- SMBV100B - SMBVB-K294 - Glonass 1 Satellite (WinIQSIM2)
- SMBV100B - SMBVB-K298 - Modernized GPS (WinIQSIM2)
- SMBV100B - SMBVB-K407 - Beidou (WinIQSIM2)
- SMBV100B - SMBVB-K412 - LTE Release 11 and Enhanced Features (WinIQSIM2)
- SMBV100B - SMBVB-K413 - EUTRA/LTE Release 12 (WinIQSIM2)
- SMBV100B - SMBVB-K414 - OFDM Signal Generation (WinIQSIM2)
- SMBV100B - SMBVB-K415 - Cellular IoT (WinIQSIM2)
- SMBV100B - SMBVB-K416 - DVB-S2/DVB-S2X (WinIQSIM2)
- SMBV100B - SMBVB-K417 - Bluetooth® 5.0 (WinIQSIM2)
- SMBV100B - SMBVB-K418 - Verizon 5GTF Signals (WinIQSIM2)
- SMBV100B - SMBVB-K419 - LTE Release 13 and 14 (WinIQSIM2)
- SMBV100B - SMBVB-K442 - IEEE 802.11ax (WinIQSIM2)
- SMBV100B - SMBVB-K443 - Cellular IoT Enhancements (WinIQSIM2)
- SMBV100B - SMBVB-K444 - 5G NR (WinIQSIM2)
- SMBV100B - SMBVB-K300 - Pulse Sequencing
- SMBV100B - SMBVB-K301 - Enhanced Pulse Sequencing
- SMBV100B - SMBVB-K308 - DF
- SMBV100B - SMBVB-K350 - DFS Signal Generation
- SMBV100B - SMBVB-K44 - GPS
- SMBV100B - SMBVB-K66 - Galileo
- SMBV100B - SMBVB-K94 - Glonass
- SMBV100B - SMBVB-K98 - Modernized GPS
- SMBV100B - SMBVB-K99 - GNSS Channel Extension to 24 ch.
- SMBV100B - SMBVB-K106 - SBAS/QZSS
- SMBV100B - SMBVB-K107 - BeiDou
- SMBV100B - SMBVB-K108 - GNSS Real World Simulation
- SMBV100B - SMBVB-K109 - GNSS Realtime Interface
- SMBV100B - SMBVB-K111 - GBAS
- SMBV100B - SMBVB-K151 - ILS
- SMBV100B - SMBVB-K152 - VOR
- SMBV100B - SMBVB-K153 - DME
- SMBV100B - SMBVB-K360 - eraGlonass Test Suite
- SMBV100B - SMBVB-K361 - eCall Test Suite
- SMBV100B - SMBVB-K362 - GNSS Test Suite
- SMBV100B - SMBVB-B80 - Removable Mass Storage
- SMBV100B - SMBVB-B81 - Rear Panel Connector for RF Path
Il generatore di segnali vettoriali R&S SMBV100B copre una gamma di frequenze da 8 kHz a 6 GHz, con potenza in uscita fino a +34 dBm e larghezza di modulazione di 500 MHz. Supporta 5G NR, LTE, WLAN e ha un basso rumore di fase SSB < –134 dBc a 1 GHz.
Offre capacità GNSS avanzate per GPS, Glonass, Galileo, BeiDou e QZSS/SBAS con scenari ripetibili sul display touchscreen da 7".
Testwall può fornire il generatore R&S SMBV100B usato, completamente testato. Con supporto tecnico e consegna globale, Testwall assicura strumentazione affidabile. Contattaci per calibrazione o riparazione del R&S SMBV100B.
Opzioni e configurazioni
- Gamma di frequenza: 8 kHz a 3 GHz (Opz. B103), 8 kHz a 6 GHz (Opz. KB106)
- Potenza di uscita: fino a +20 dBm (standard), +21 dBm (Opz. K31), +25 dBm (Opz. B32, spec.)
- Modulazione: AM, FM, ΦM (Opz. K720), impulso (Opz. K22/K23), I/Q
- Larghezza di banda di modulazione: 120 MHz (standard), 240 MHz (Opz. K523), 500 MHz (Opz. K524), 1000 MHz (Opz. K525)
- Invecchiamento base tempi: 1 × 10⁻⁶ all’anno (standard), 1 × 10⁻⁷ all’anno (Opz. B1), 3 × 10⁻⁸ all’anno (Opz. B1H)
- Connettore uscita RF: tipo N femmina, pannello frontale (pannello posteriore con Opz. B81)
