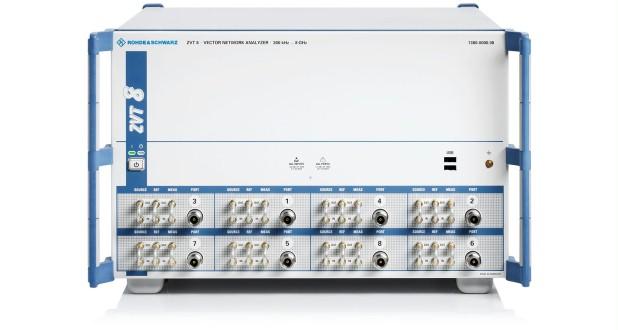

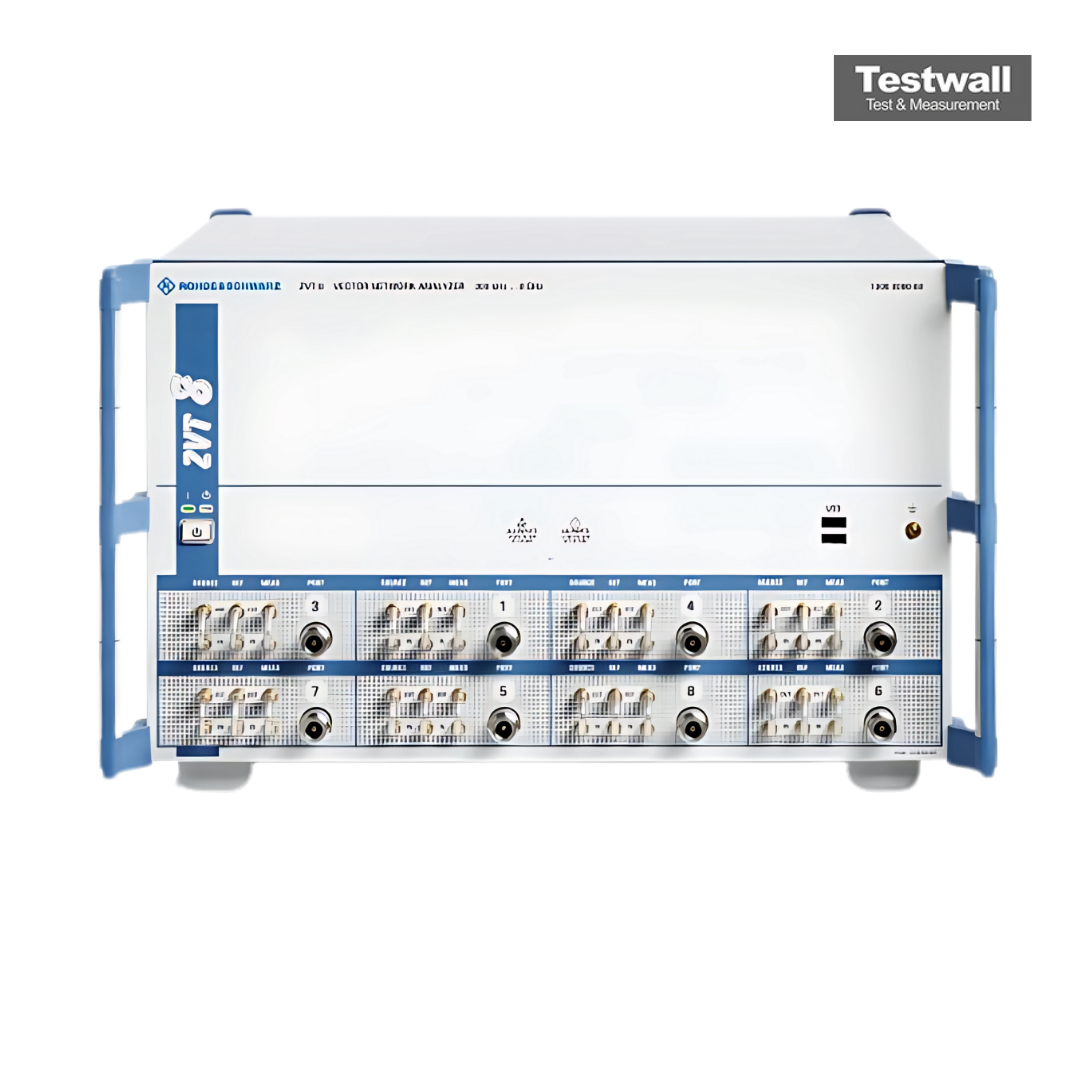

Rohde & Schwarz ZVT820
| Attributo | Valore |
|---|---|
| Intervallo di frequenza | 300 kHz – 20 GHz |
| Numero di porte | 8 porte |
| Larghezza di banda IF | 1 Hz – 1 MHz |
| Dinamica | fino a 130 dB |
| Potenza di uscita | da -45 dBm a +10 dBm |
| Punti di misura per sweep | fino a 60.001 punti |
| Accuratezza della traccia | ±0,005 dB |
| Connettori RF | N femmina 50 Ω |
| Interfacce | USB, LAN (LXI), GPIB |
| Alimentazione | 100 – 240 V AC, 50/60 Hz |
Rohde & Schwarz ZVT820 Options:
- ZVT820 - ZVAB-B4 - Oven quartz (OCXO)
- ZVT820 - ZVAB-K2 - Time domain
- ZVT820 - ZVA-K4 - Frequency conversion
- ZVT820 - ZVA-K5 - Mixer phase measurement
- ZVT820 - ZVA-K6 - True differential mode (for the R&S ZVT8 only)
- ZVT820 - ZVA-K7 - Pulsed measurements
- ZVT820 - ZVA-K9 - Mixer delay without LO access
- ZVT820 - ZVA-K17 - 5 MHz receiver bandwidth
- ZVT820 - ZVA-K27 - Internal pulse generators
- ZVT820 - ZVA-U116 - Upgrade CPU board to R&S FMR11 including upgrade to Windows Embedded Standard 7 (for R&S FMR6)
- ZVT820 - ZVA-U116 - Upgrade CPU board to R&S FMR11 including upgrade to Windows Embedded Standard 7 (for R&S FMR7/3, R&S FMR7/6)
- ZVT820 - ZVA-U116 - Upgrade CPU board to R&S FMR11 including upgrade to Windows Embedded Standard 7 (for R&S FMR9)
- ZVT820 - ZVT8-B16 - Direct gen/rec access for PORT 1
- ZVT820 - ZVT8-B16 - Direct gen/rec access for PORT 2
- ZVT820 - ZVT8-B16 - Direct gen/rec access for PORT 3 (requires additional PORT option)
- ZVT820 - ZVT8-B16 - Direct gen/rec access for PORT 4 (requires additional PORT option)
- ZVT820 - ZVT8-B16 - Direct gen/rec access for PORT 5 (requires additional PORT option)
- ZVT820 - ZVT8-B16 - Direct gen/rec access for PORT 6 (requires additional PORT option)
- ZVT820 - ZVT8-B16 - Direct gen/rec access for PORT 7 (requires additional PORT option)
- ZVT820 - ZVT8-B16 - Direct gen/rec access for PORT 8 (requires additional PORT option)
- ZVT820 - ZVT8-B63 - Additional PORT 3
- ZVT820 - ZVT8-B64 - Additional PORT 4 (requires all additional PORT options with lower port numbers)
- ZVT820 - ZVT8-B65 - Additional PORT 5 (requires all additional PORT options with lower port numbers)
- ZVT820 - ZVT8-B66 - Additional PORT 6 (requires all additional PORT options with lower port numbers)
- ZVT820 - ZVT8-B67 - Additional PORT 7 (requires all additional PORT options with lower port numbers)
- ZVT820 - ZVT8-B68 - Additional PORT 8 (requires all additional PORT options with lower port numbers)
- ZVT820 - WE1 - Extended warranty, one year
- ZVT820 - WE2 - Extended warranty, two years
- ZVT820 - CW1 - Extended warranty with calibration coverage, one year
- ZVT820 - CW2 - Extended warranty with calibration coverage, two years
- ZVT820 - AW1 - Extended warranty with accredited calibration coverage, one year
- ZVT820 - AW2 - Extended warranty with accredited calibration coverage, two years
| Model | ZVT820 |
|---|
Il Rohde and Schwarz ZVT820 è una piattaforma VNA ad alte prestazioni progettata per misurazioni a banda larga fino alle frequenze millimetriche. Include correzione degli errori integrata, velocità di scansione elevate, ampia gamma dinamica e compatibilità con sistemi a convertitore per test multiporta e pulsati.
Ideale per configurazioni RF complesse, lo ZVT820 supporta configurazioni multi-sorgente flessibili ed è dotato di strumenti per la correzione degli errori vettoriali e la calibrazione.
Testwall può fornire il Rohde and Schwarz ZVT820 usato, completamente testato. Con supporto esperto e consegna globale, Testwall garantisce strumenti ad alte prestazioni con affidabilità e qualità del servizio impareggiabili. Contattateci direttamente se necessitate di calibrazione o riparazione del Rohde and Schwarz ZVT820.
