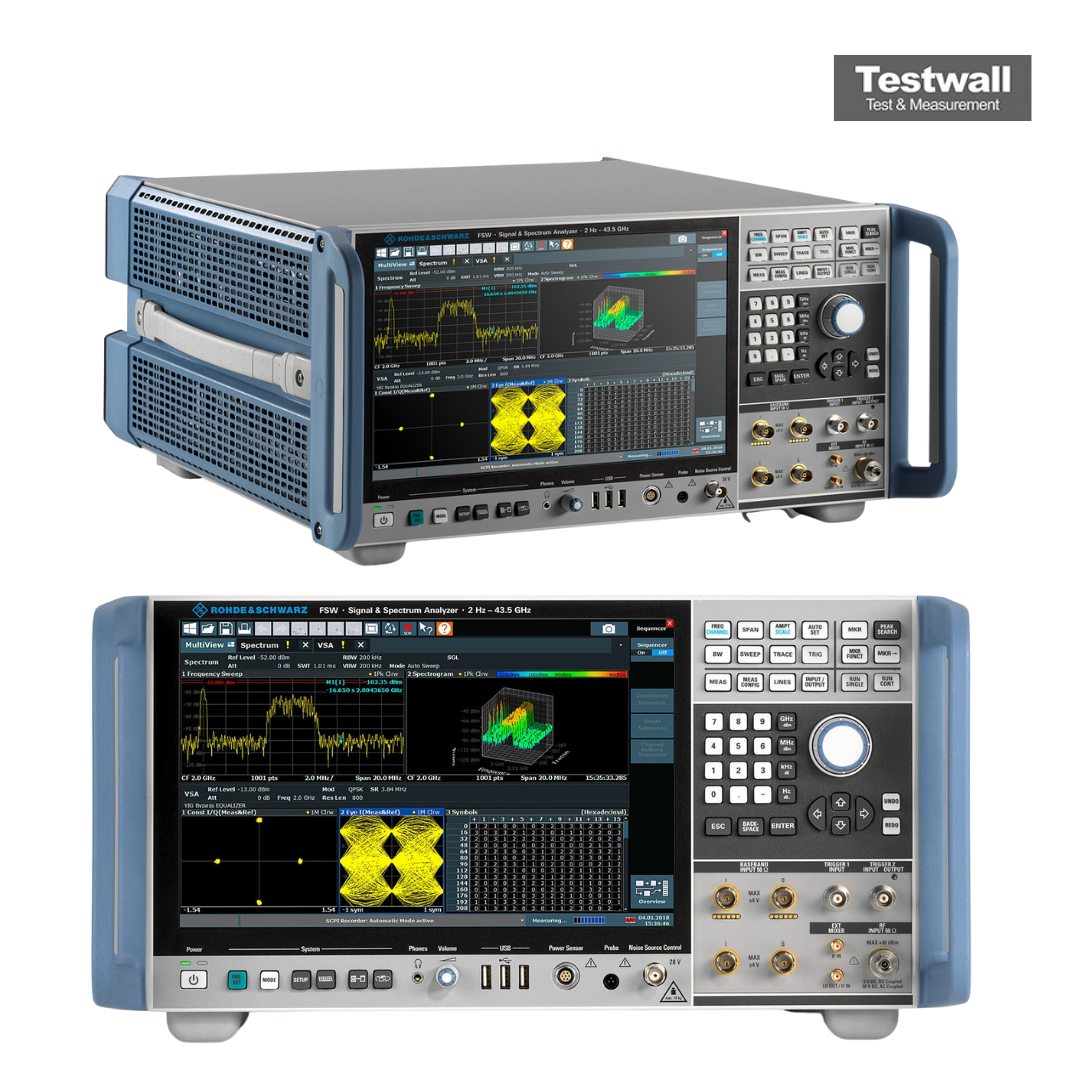

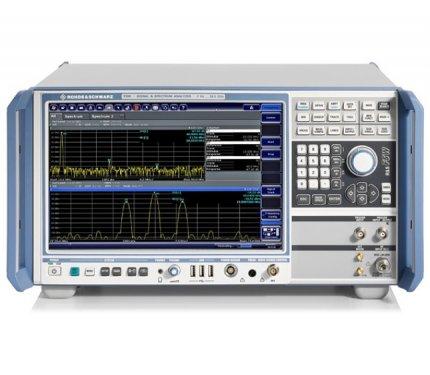

Rohde & Schwarz FSW43
43 GHz Signal Analyser
2 Hz – 43 GHz Gamma di frequenza
fino a 5 GHz (opzionale) Larghezza di banda di analisi
-172 dBm/Hz (tipico, con preamplificatore attivato) Livello di rumore visualizzato (DANL)
fino a 110 dB Gamma dinamica
± 0,4 dB (tipico) Accuratezza del livello
| Attributo | Valore |
|---|---|
| Gamma di frequenza | 2 Hz – 43 GHz |
| Larghezza di banda di analisi | fino a 5 GHz (opzionale) |
| Livello di rumore visualizzato (DANL) | -172 dBm/Hz (tipico, con preamplificatore attivato) |
| Gamma dinamica | fino a 110 dB |
| Accuratezza del livello | ± 0,4 dB (tipico) |
| Punto di intercetta del terzo ordine (TOI) | +22 dBm (tipico) |
| Stabilità di frequenza | ± 0,05 ppm (con riferimento interno OCXO opzionale) |
| Rumore di fase | -108 dBc/Hz a 10 kHz di offset (a 1 GHz, tipico) |
| Impedenza ingresso RF | 50 Ω |
| Interfacce di connettività | USB, LAN (Ethernet), GPIB (opzionale), DisplayPort |
Rohde & Schwarz FSW43 Options:
- FSW43 - B4 - OCXO Precision Frequency Reference
- FSW43 - B8 - Resolution Bandwidth > 10 MHz
- FSW43 - B10 - External Generator Control
- FSW43 - B13 - Highpass Filter for Harmonic Measurements
- FSW43 - B17 - Digital Baseband Interface
- FSW43 - B18 - Spare Solid State Drive (removable hard drive)
- FSW43 - B21 - LO/IF Connections for external mixers
- FSW43 - B24 - RF Preamplifier, 100 kHz to 43.5 GHz
- FSW43 - B28 - 28 MHz Analysis Bandwidth
- FSW43 - B33 - USB Mass Memory Write Protection
- FSW43 - B40 - 40 MHz Analysis Bandwidth
- FSW43 - B71 - Analog Baseband Inputs, 40 MHz Analysis Bandwidth
- FSW43 - B71E - 80 MHz Analysis Bandwidth for Analog Baseband Inputs
- FSW43 - B80 - 80 MHz Analysis Bandwidth
- FSW43 - B106 - I/Q Memory Extension 6 GB
- FSW43 - B160 - 160 MHz Analysis Bandwidth
- FSW43 - B160R - Real-Time Spectrum Analyzer 160 MHz, POI ≤ 15 µs
- FSW43 - B320 - 320 MHz Analysis Bandwidth
- FSW43 - B512 - 512 MHz Analysis Bandwidth
- FSW43 - B512R - Real-Time Spectrum Analyzer 512 MHz, POI ≤ 15 µs
- FSW43 - B1200 - 1200 MHz Analysis Bandwidth
- FSW43 - B2000 - 2 GHz Analysis Bandwidth
- FSW43 - B2001 - 2000 MHz Analysis Bandwidth
- FSW43 - B2071 - Oscilloscope Baseband Inputs
- FSW43 - B5000 - 5 GHz Analysis Bandwidth
- FSW43 - K6 - Pulse Measurements
- FSW43 - K6S - Time Side Lobe Measurement
- FSW43 - K7 - Analog Modulation Analysis for AM/FM/φM
- FSW43 - K10 - GSM/EDGE/EDGE Evolution/VAMOS Measurements
- FSW43 - K15 - VOR/ILS Measurements
- FSW43 - K17 - Multicarrier Group Delay Measurements
- FSW43 - K18 - Amplifier Measurements
- FSW43 - K18D - Direct DPD Measurements
- FSW43 - K19 - Noise Power Ratio Measurements
- FSW43 - K30 - Noise Figure Measurements
- FSW43 - K33 - Security Write Protection of solid state drive
- FSW43 - K40 - Phase Noise Measurements
- FSW43 - K50 - Spurious Measurements
- FSW43 - K54 - EMI Measurements
- FSW43 - K54CAL - CISPR Calibration for R&S FSW-K54
- FSW43 - K60 - Transient Measurement Application
- FSW43 - K60H - Transient Hop Measurement
- FSW43 - K60C - Transient Chirp Measurement
- FSW43 - K70 - Vector Signal Analysis
- FSW43 - K70P - BER PRBS measurements
- FSW43 - K72 - 3GPP FDD (WCDMA) BS Measurements (incl. HSDPA and HSDPA+)
- FSW43 - K73 - 3GPP FDD (WCDMA) MS Measurements (incl. HSUPA and HSUPA+)
- FSW43 - K76 - TD-SCDMA BS Measurements
- FSW43 - K77 - TD-SCDMA UE Measurements
- FSW43 - K82 - CDMA2000 BS Measurements
- FSW43 - K83 - CDMA2000 MS Measurements
- FSW43 - K84 - 1xEV-DO BS Measurements
- FSW43 - K85 - 1xEV-DO MS Measurements
- FSW43 - K91 - WLAN 802.11a/b/g Measurements
- FSW43 - K91N - WLAN 802.11n Measurements
- FSW43 - K91AC - WLAN 802.11ac Measurements
- FSW43 - K91AX - WLAN 802.11ax Measurements
- FSW43 - K91P - WLAN 802.11p Measurements
- FSW43 - K95 - WLAN 802.11ad Measurements
- FSW43 - K100 - EUTRA/LTE FDD BS Measurements
- FSW43 - K101 - EUTRA/LTE FDD UE Measurements
- FSW43 - K102 - EUTRA/LTE BS MIMO Measurements
- FSW43 - K103 - EUTRA/LTE UL Advanced UL Measurements
- FSW43 - K104 - EUTRA/LTE TDD BS Measurements
- FSW43 - K105 - EUTRA/LTE TDD Uplink Measurements
- FSW43 - K106 - EUTRA/LTE NB-IoT Downlink Measurements
- FSW43 - K118 - VERIZON 5GTF
- FSW43 - K119 - VERIZON 5GTF UL
- FSW43 - K160RE - 160 MHz Real-Time Measurement Application, POI > 15 µs
- FSW43 - K192 - DOCSIS 3.1 OFDM Downstream
- FSW43 - K193 - DOCSIS 3.1 OFDMA Upstream
- FSW43 - K201 - OneWeb Reverse Link Measurements
- FSW43 - K544 - User Defined Frequency Correction by SnP file
- FSW43 - U40 - Analysis Bandwidth Upgrade from 28 MHz to 40 MHz
- FSW43 - U80 - Analysis Bandwidth Upgrade from 40 MHz to 80 MHz
- FSW43 - U160 - Analysis Bandwidth Upgrade from 80 MHz to 160 MHz
- FSW43 - U160R - Upgrade Real-Time Spectrum Analyzer, 160 MHz, POI ≤ 15 µs
- FSW43 - U320 - Analysis Bandwidth Upgrade from 160 MHz to 320 MHz
- FSW43 - U512 - Analysis Bandwidth Upgrade from 80 MHz to 512 MHz
- FSW43 - U512R - Upgrade Real-Time Spectrum Analyzer 512 MHz, POI ≤ 15 µs
- FSW43 - U1200 - Analysis Bandwidth Upgrade from 80 MHz, 160 MHz, 320 MHz, 512 MHz to 1200 MHz
- FSW43 - U2001 - Analysis Bandwidth Upgrade from 1200 MHz to 2000 MHz
- FSW43 - U5000 - Upgrade to 5 GHz Signal Analysis Bandwidth
| Model | FSW43 |
|---|
The Rohde & Schwarz FSW43 is a signal and spectrum analyzer developed for the microwave range. The R&S FSW43 can analyze microwave applications with a frequency range of up to 43.5 GHz, however this range can be extended to 110 GHz with application of the brand's harmonic mixers. The RF performance of the FSW43 makes it useful for wireless, satellite, and radar applications.
Key facts of the FSW43:
- Frequency range from 2 Hz to 43.50 GHz (with external harmonic mixers from Rohde & Schwarz up to 500 GHz)
- Low phase noise of -137 dBc (1 Hz) at 10 kHz offset (1 GHz carrier)
- -88 dBc dynamic range (with noise cancellation) for WCDMA ACLR measurements
- Up to 5 GHz analysis bandwidth
- < 0.4 dB total measurement uncertainty up to 8 GHz
- Real-time analysis up to 512 MHz bandwidth
- High-resolution 12.1%22 (31 cm) touchscreen for convenient operation
- Multiple measurement applications can be run and displayed in parallel
