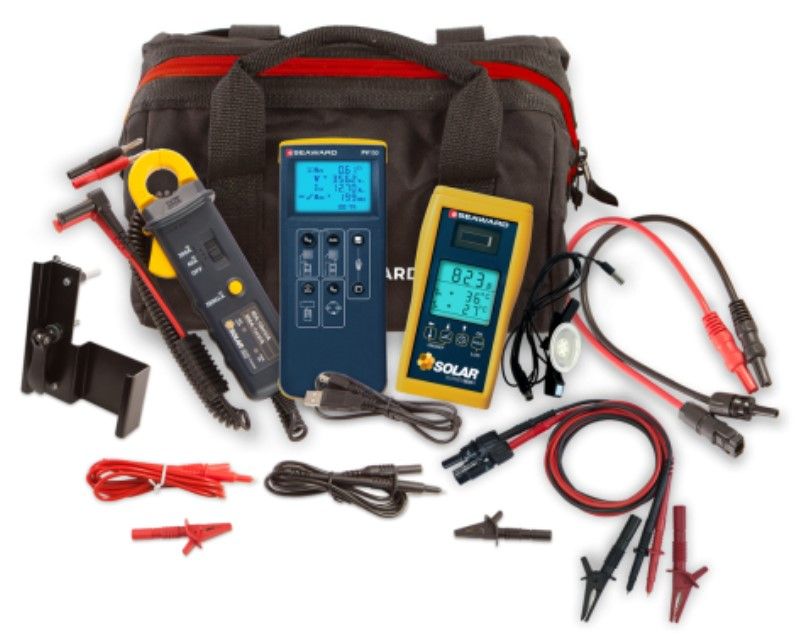

Seaward PV150K SolarLink Test Kit
The Seaward PV150K SolarLink Test Kit is a powerful and efficient tool designed to streamline the electrical integrity testing of photovoltaic system. The PV150 solar installation test kit transforms the way PV systems are tested. It replaces the three separate instruments which installers have had to use for commissioning tests in the past; combining earth / ground continuity, insulation resistance, open circuit voltage, short circuit current, operating cur (using supplied AC/DC cur clamp) and DC operating power test functions into one handheld unit. Simple and safe MC4 and Sunclix PV test leads are provided for fast and easy direct connection to the PV modules, strings or array.
Seaward PV150K SolarLink Test Kit It combines ground continuity, DC operating power and operating cur test functions in a hand-held device, making the process faster, safer, and more accurate. The PV150 is able to wirelessly capture and record irradiance and temperature measurements from the Solar Survey 200R in real-time as electrical tests are conducted. It can also test insulation resistance, open circuit voltage and short circuit cur at the push of a button. The Seaward PV150K SolarLink Test Kit has memory to store up to 200 complete test records with USB connectivity to enable these to be quickly and easily downloaded to a PC. Professional test certificates and reports can also be created when used Seaward's SolarCert software.
Specifications for the Seaward PV150K SolarLink Test Kit Include:
| Voltage Measuring Range | 5.0 VDC to 1000 VDC |
| Cur Measuring Range | 0.1A - 40.0A DC |
| DC Operating Power Measuring Range | 0.50kW - 40kW |
| Earth/Ground Continuity Measuring Range | 0.01Ω to 199Ω |
Resi
