Seaward SOLAR UTILITY PRO Options:
- SOLAR UTILITY PRO - 416A910 - Solar Utility Pro (433MHz, Rest of World)
- SOLAR UTILITY PRO - 416A912 - Solar Utility Pro (915MHz, USA Only)
| Model | SOLAR UTILITY PRO |
|---|

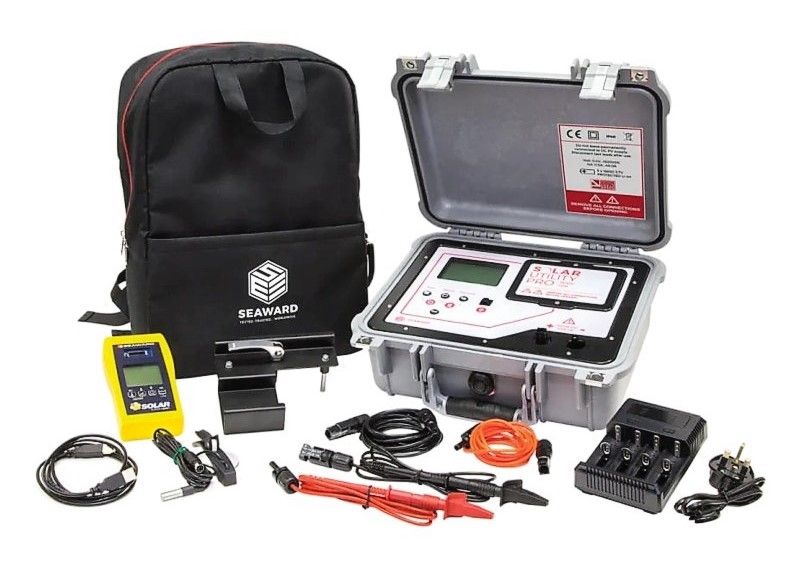

SEAWARD Solar Utility Pro PV String Checker (Call for availability)
The new Solar Utility Pro from Seaward takes PV testing to the next level. With the introduction of more efficient 1500V modules and inverters, Seaward have answered the industry call for an easy to use and robust tester with 1500V capabilities.
Its market leading 40A cur capability enables the Solar Utility Pro to test parallel wired strings up to a maximum of 1500V / 40A, eliminating the time consuming task of separating strings to keep within lower limits of other instruments.
A single press of the Test button will give values for Open Circuit Voltage and Short Circuit Current, and when paired with the Seaward Solar Survey 200R irradiance meter, will also record irradiance, module and ambient temperature measurements. The large internal storage memory can record up to 999 complete record sets, which can be downloaded as a CSV file to a PC for review.
To make on site testing easier, the Solar Utility Pro is supplied with 1.5M long conversion leads that convert the standard MC4 leads to alligator clips €“ particularly useful in combiner boxes and junction boxes.
These features, in a rugged enclosure, give the larger scale PV engineer the most efficient, portable and highest rated tester available.
Specifications of the SEAWARD Solar Utility Pro PV String Checker includes:
- 1500V / 40A rated.
- Large display designed for reading in direct sunlight.
- Direct MC4 connections, with the option to add a conversion lead set for safer connections in combiner boxes.
- Simple single button test.
- Rugged case designed for continuous site work.
- Store up to 999 complete record sets.
- CSV output to PC to review data.
- Pairs to Solar Survey 200R irradiance meter to capture the irradiance and temperature measurements at the time to test
See Datasheet for Full Specifications
