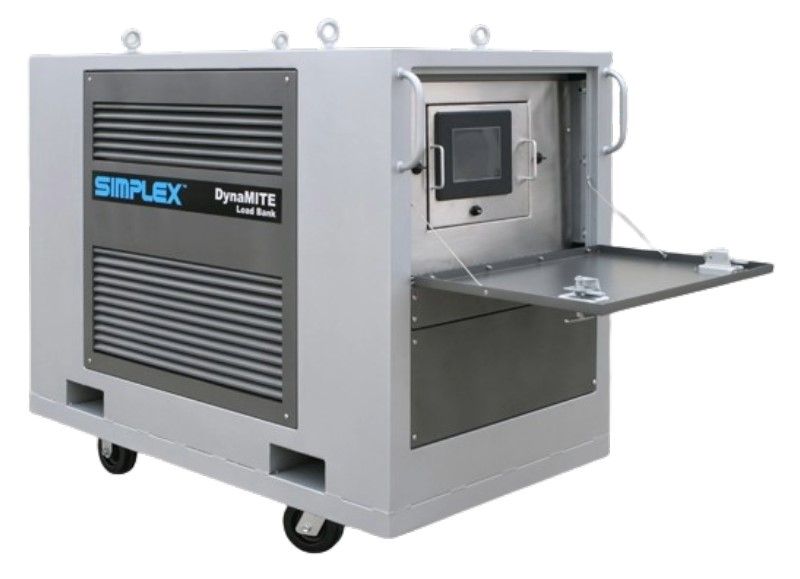

SIMPLEX dynaMite Portable Load Bank
The Simplex dynaMITE Portable Load Bank is a large capacity, high performance Portable Load Bank designed to provide manufacturers, distributors and users of large AC generators and UPS systems with sophisticated testing capability. dynaMITE Load Banks feature digital controllers with network control and data acquisition capability. The dynaMITE can be operated using the interface is touchscreen with the load control via screen keypad. All electrical values display on the screen and are recorded by the system for future data retrieval.
The Simplex dynaMITE comprises of models rated 300-400kw of resistive load at both 240V and 480V, 3-phase. It can be applied at any AC voltage to 480V AC, 50-60 Hertz standard, single or 3-phase. Load step resolution is 5KW. Some of the dynaMITE's main features include a digital power transducer with Ethernet communication to digital controller, branch circuit fuses. One set of fuses each 50KW branch. Fuses are cur limiting type, 200KAIC, 600V and a dual voltage control power transformer with supply power switchable to internal (generator) or external.
Specifications for the SIMPLEX Dynamite Portable Load Bank Include:
| Max Voltage | 240 & 480 V (Dual Voltage) |
| Max Cur (Model 300/400) | 361 to 721 A / 481 to 961 A |
| Total Power (Model 300/400) | 300 kW / 400 kW |
